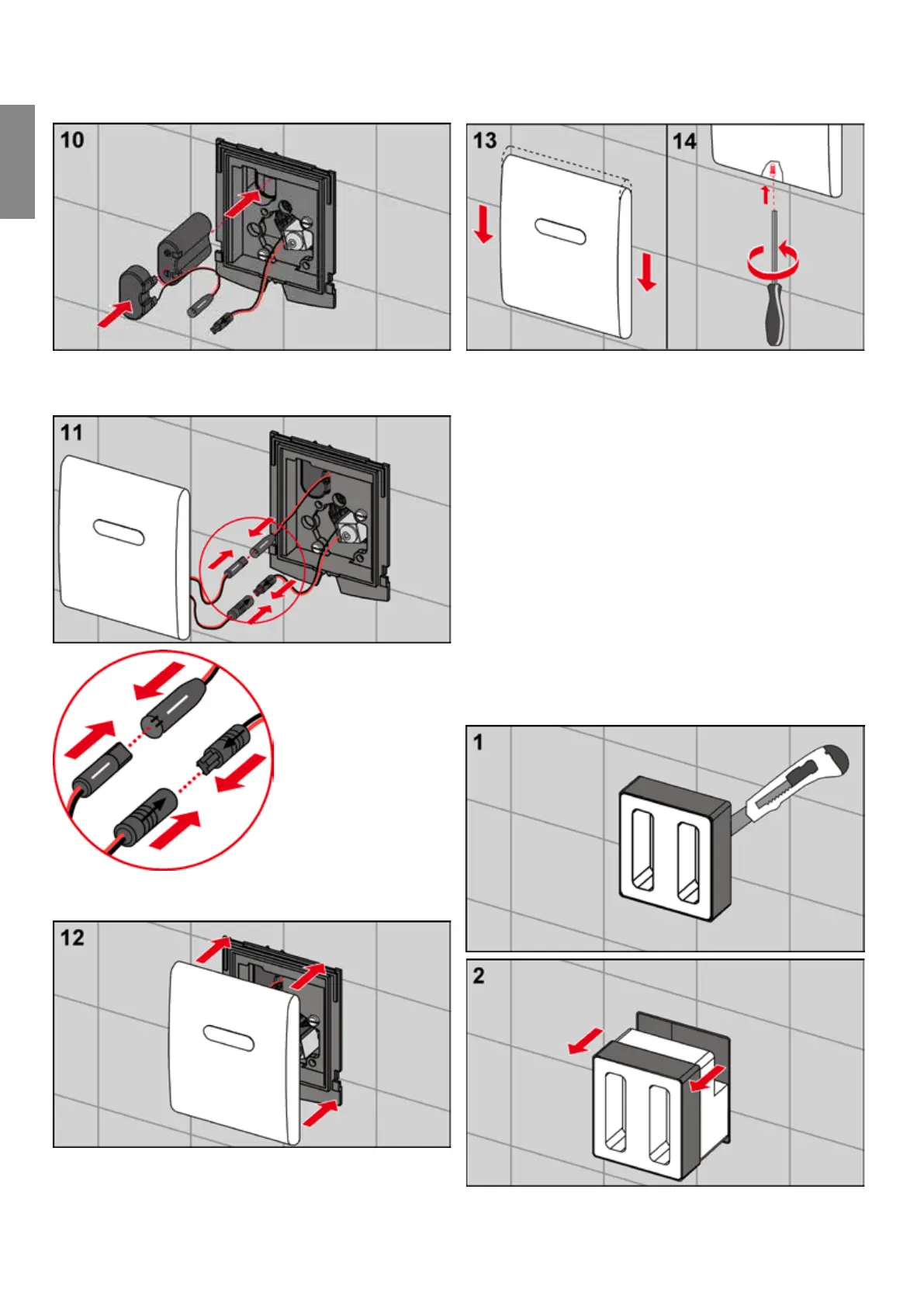

Place the connector adapter on the battery and position it
in the opening provided for the purpose.
Connect the battery and cartridge to the electronics.
Finally, install the flush plate cover and mount the van-
dal-resistant screw supplied.
Installing the urinal infrared electronics, 12 V
mains
Caution:
When installing a V variant, the following details must
be observed:
• A maximum of electronics may be connected to one
transformer at the same time.
• The V mains electronics must be connected in paral-
lel in a series installation.
• The connection cable between the connection on the
transformer and the most remote electronics must be
max. metres in length.
Cut the bare-wall protection flush against the wall, and
remove it together with the polystyrene support.
TECE flush plates – TECEplanus infrared electronics
-
Flush plates
