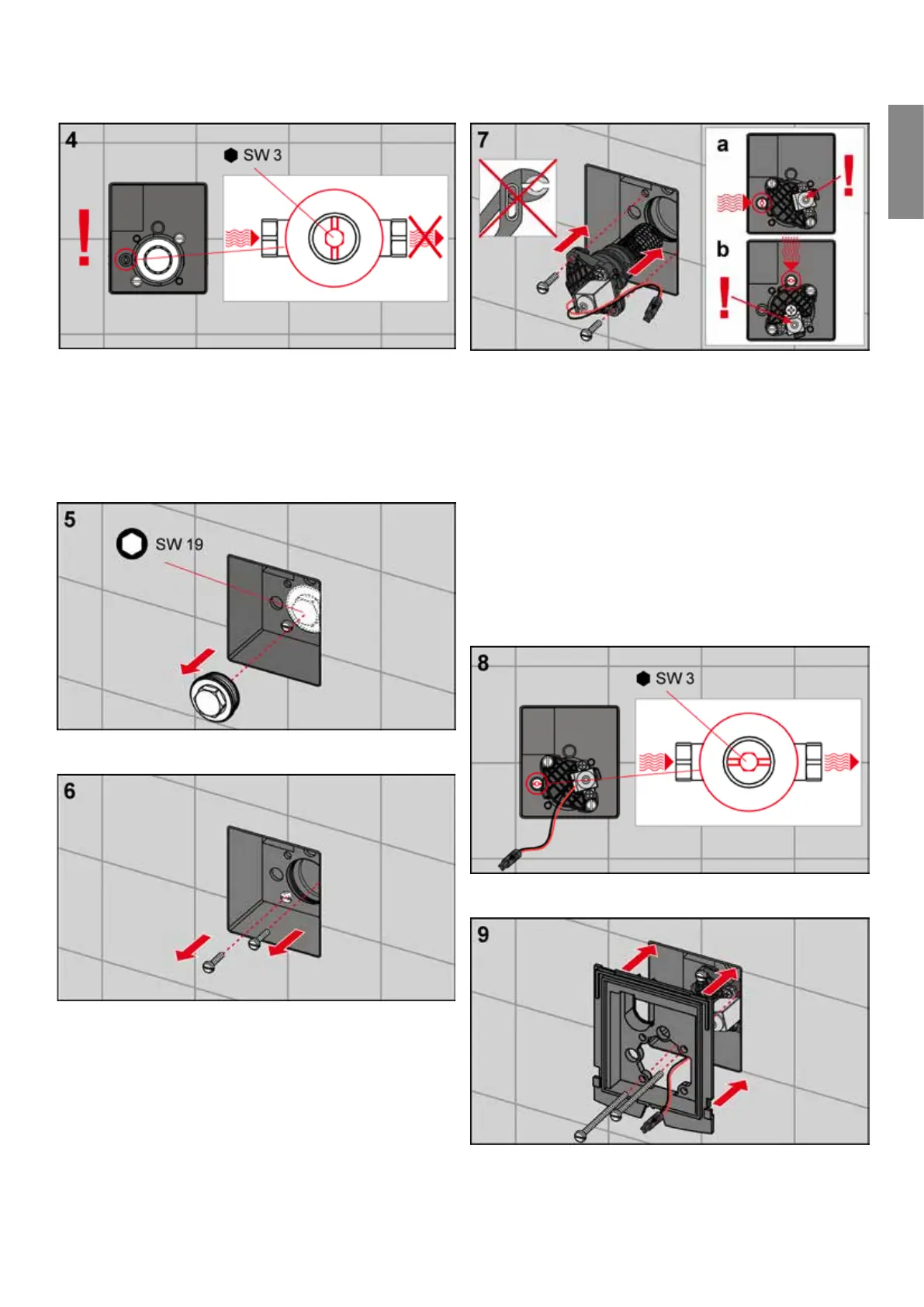

Before mounting the cartridge, ensure that the inlet flow
control is closed so that no water can leak out during
assembly. Close the shut-o using an Allen key. In the free-
flow setting (fig. ), the shut-o slot is parallel with the flush
valve housing and in the closed setting (fig. ), it is at right
angles to the housing.
Remove the bare-wall plug.
Unscrew the fastening screws on the bare-wall protection.
Install the electric cartridge (do not let the tool come into
contact with it) and tighten the screws by hand.
Please note:
It is particularly important, when installing the electronic
cartridge, to place it in the correct position. As can be
seen on the right of the above illustration, the position
also depends on the installation situation of the flush valve
housing: Horizontal housing = shut-o on the left, electron-
ics on the right (fig. a); vertical housing = shut-o at the
top, electronics at the bottom (fig. b). If the cartridge is
installed incorrectly, the function may operate to start with,
however, malfunctions will occur after a while.
Open the inlet flow control.
Screw the support frame onto the urinal flush valve hous-
ing.
-
Flush plates
