TECE Lux Mini - Installing the Urinal Flush Plate

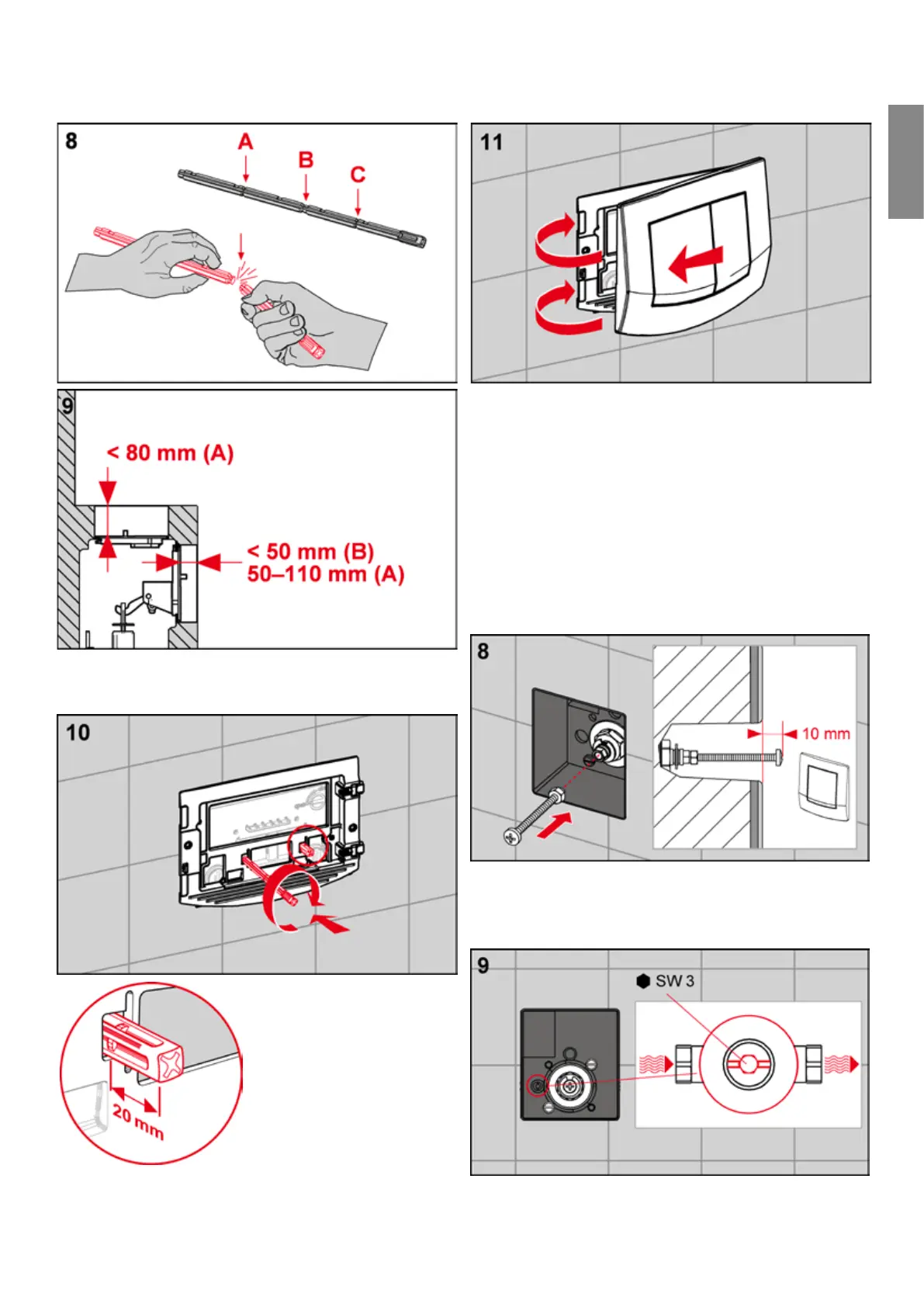

Break o the actuating rods according to the wall struc-
ture.
Screw in the actuating rods – distance to front edge of
support frame =  mm.
Hook the cover of the TECEambia flush plate into the right-
hand side, and fit it onto the support frame by means of
the snap lock.
Installing the urinal flush plate
The first seven steps of the procedure for installing the
urinal flush plate for the U  urinalflusher are the same
for all (wall-mounted) TECE urinal flush plates – see
“TECEsquare – Wall-mounted installation of the urinal actu-
ation” for more information.
Screw in the actuating rods as described above (for the
TECEambia, distance to wall surface =  mm) and screw
on the counter nut to prevent them from turning.
Open the inlet flow control.
-
Flush plates
