TECEnow

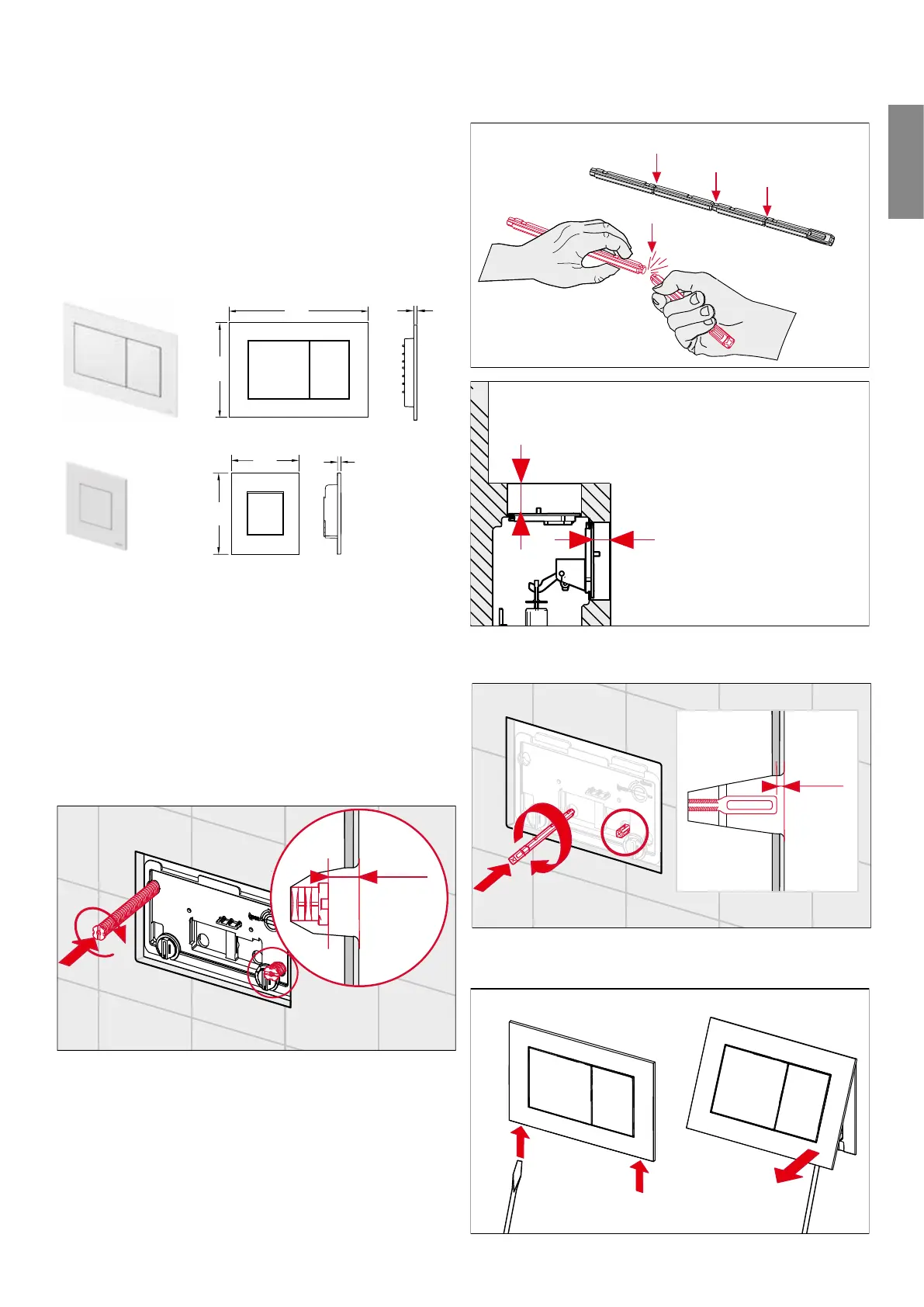

TECEnow toilet flush plates are extremely flat plastic flush
plates with rubber-buered actuation buttons. TECEnow
flush plates also exist for urinals. They are suitable for
flush-mounted installation in combination with the toilet
installation frame and the TECEnow spacing frame.
150
220
5
5
104
124
TECEnow toilet flush plate, dual-flush technology
TECEnow urinal flush plate
Wall-mounted installation of the toilet flush
plate
As with all TECE flush plates, the first four steps for install-
ing the toilet flush plate are the same (for more informa-
tion, see the section entitled “TECEsquare, Installing the
TECEsquare II metal toilet flush plate”).
15 mm
5
Screw in both attachment rods – distance of attachment
rods to wall surface =  mm.
6a
A
B
C
6b
< 85 mm (A)
15–50 mm (B)
50–110 mm (A)
Break o the actuating rods according to the wall struc-
ture.
7
2 mm
Screw in both actuating rods – distance of actuating rods
to wall surface =  mm.
.
8
Separate the cover and the support frame.
TECE flush plates – TECEnow
-
Flush plates
