TECE Lux Mini - Flush-Mounted Installation of TECElux Mini

The cover can be detached from the flush plate using
the disassembly tool. To do this, insert the tool into the
recesses on the underside of the flush plate and carefully
remove the cover.

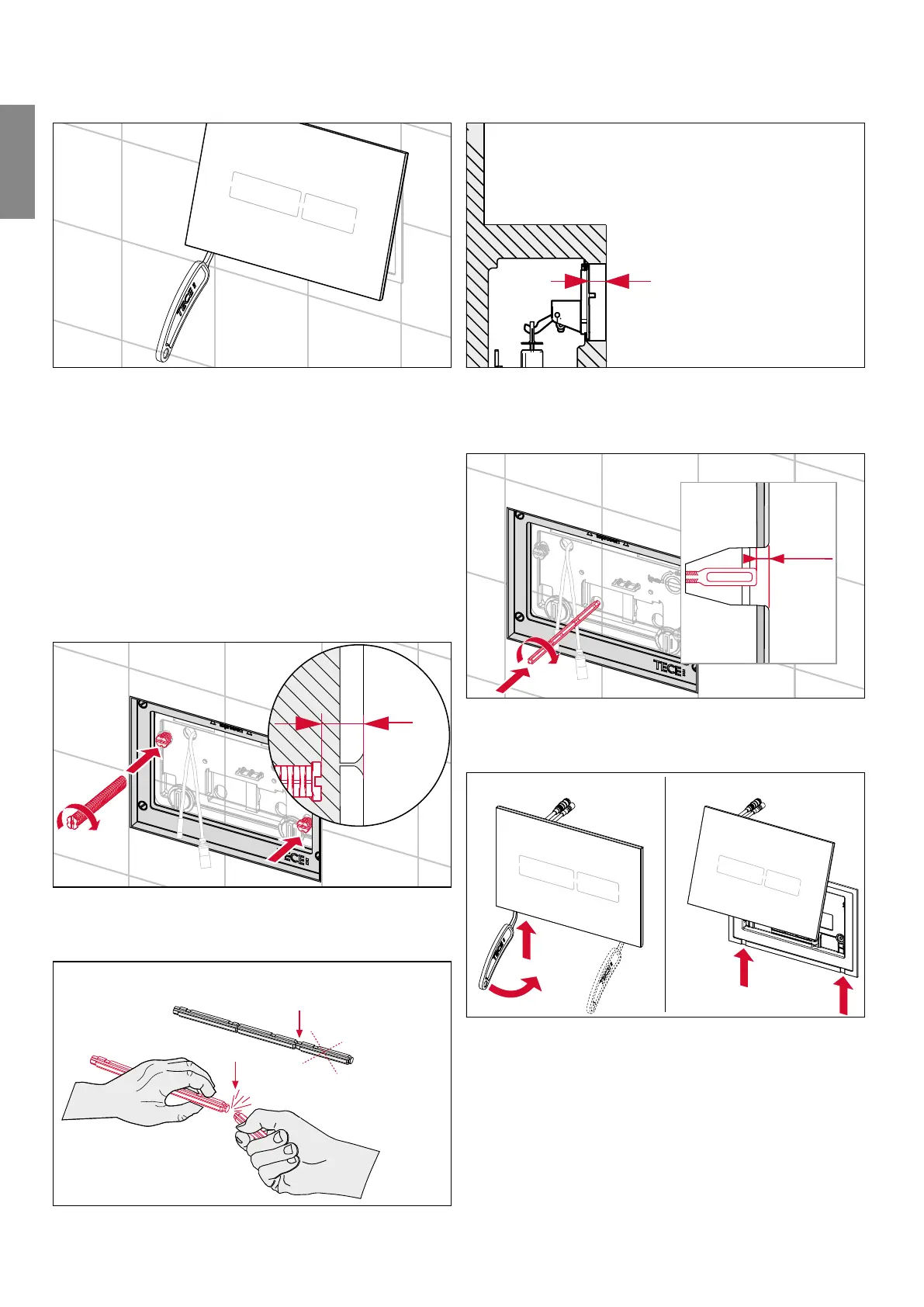

Flush-mounted installation of the toilet flush
plate
For the flush-mounted installation of the TECElux Mini
flush plate, follow the same first six steps for the wall-
mounted installation of the TECElux Mini.
7
18 mm
Screw in both attachment rods – distance of attachment
rods to wall surface =  mm.
8a
A
8b
< 60 mm (A)
Break o the actuating rods according to the wall struc-
ture.
9
5 mm
Screw in both actuating rods – distance of actuating rods
to wall surface =  mm.
10
The cover can be detached from the flush plate using
the disassembly tool. To do this, insert the tool into the
recesses on the underside of the flush plate and carefully
remove the cover.
TECE flush plates– TECElux Mini
-
Flush plates
