10

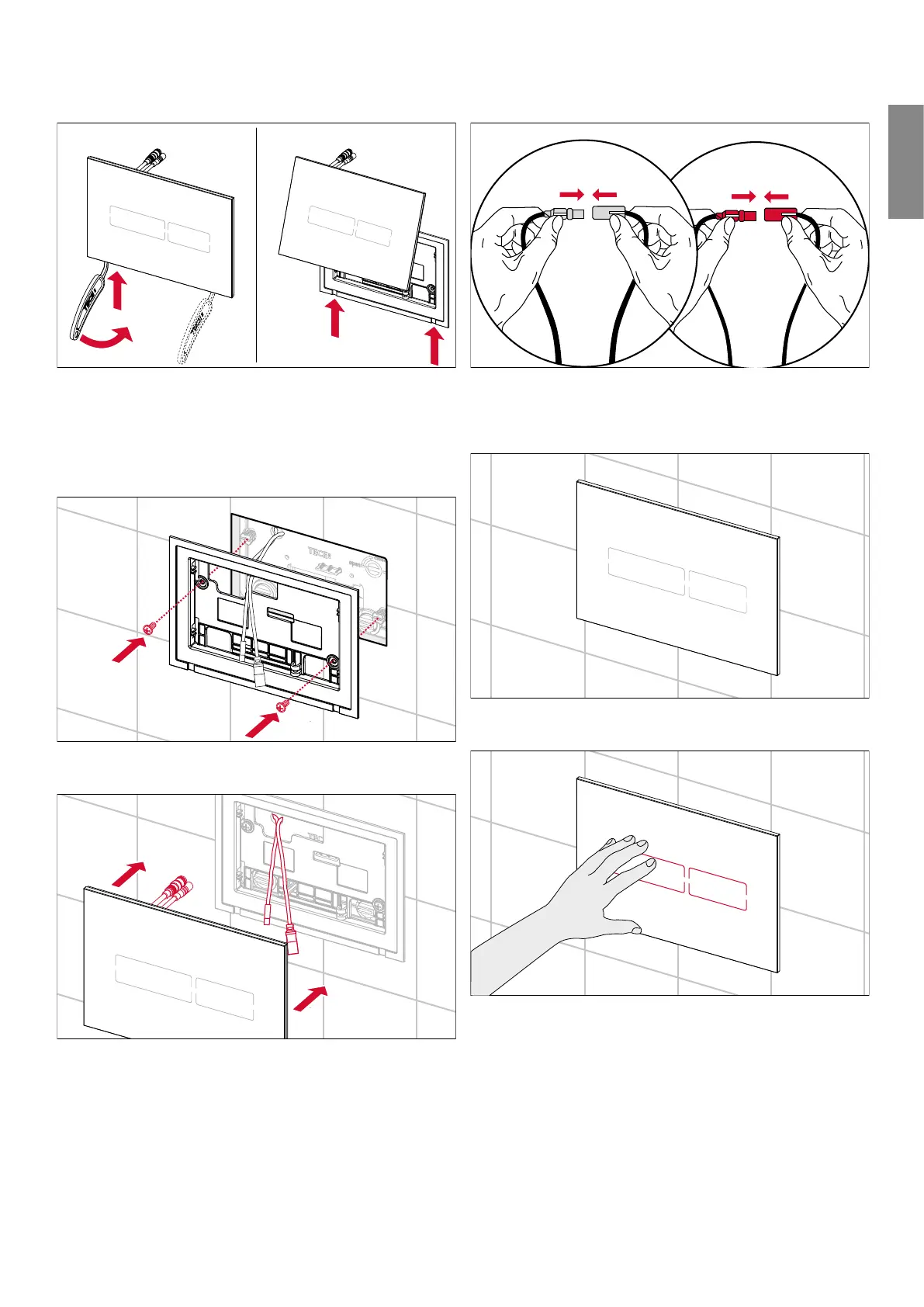

The cover can be detached from the flush plate using
the disassembly tool. To do this, insert the tool into the
recesses on the underside of the flush plate and carefully
remove the cover.
11
Screw the support frame onto the attachment rods.
12a
2.
1.
12b
Connect the plug to the actuation motor and the trans-
former.
13
Mount the glass cover of the TECElux Mini electronics
14
Check whether the touch pad lights up.
-
