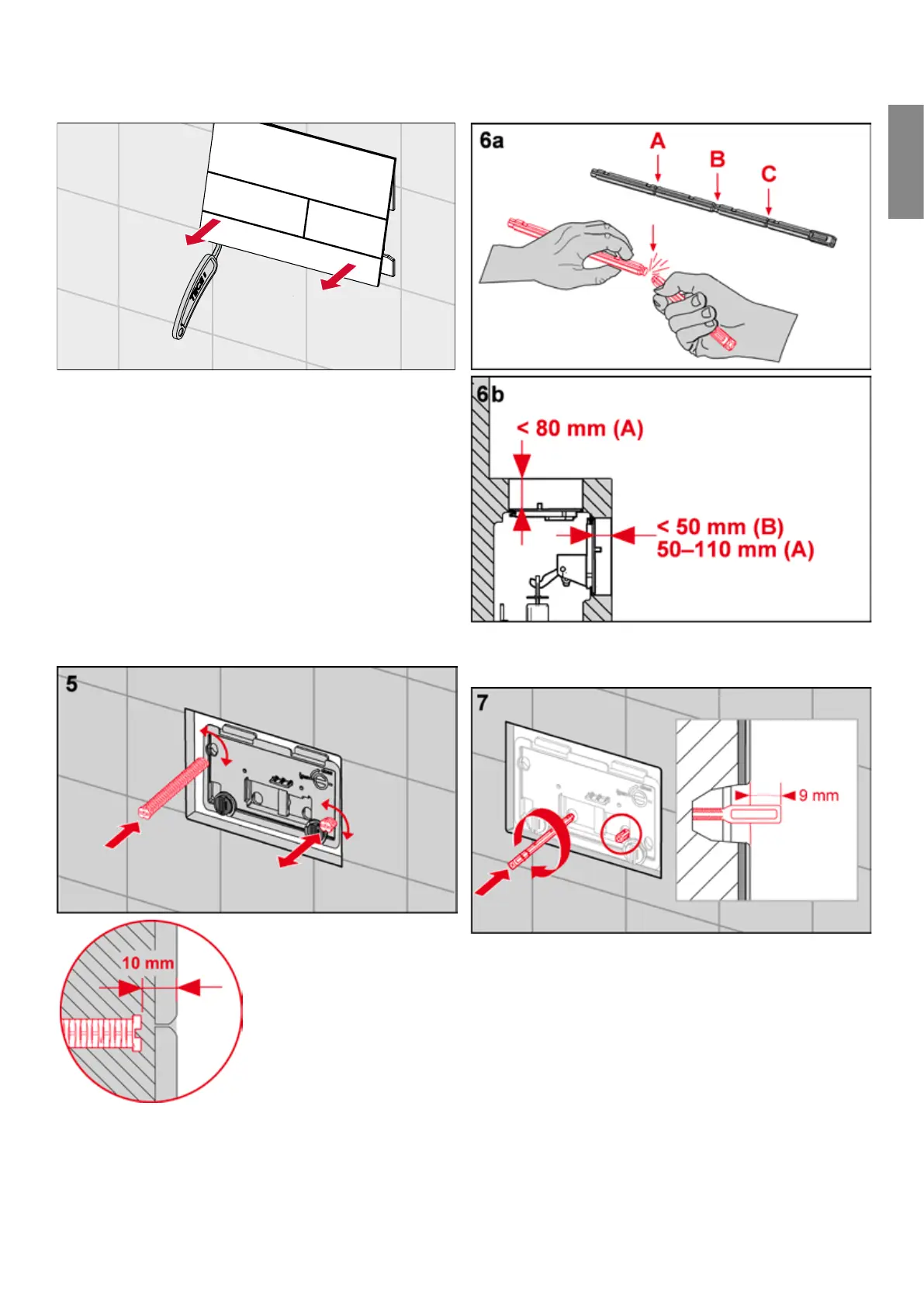

The installed cover can be detached from the flush plate
using the disassembly tool. To do this, insert the tool into
the recesses on the underside of the flush plate and care-
fully remove the cover.
Wall-mounted installation of the glass toilet
flush plate
The first four steps for installing the toilet flush plate are
the same for all manual TECE flush plates (see the section
entitled “Installing the TECEsquare II toilet flush plate” for
more information).
Screw in both attachment rods – distance of the rods to
wall surface = mm.
Break o the actuating rods according to the wall struc-
ture.
Screw in both actuating rods – distance of actuating rods
to wall surface = mm.
-
Flush plates
