TECE Lux Mini - Installing the Toilet Infrared Electronics, 12 V Mains

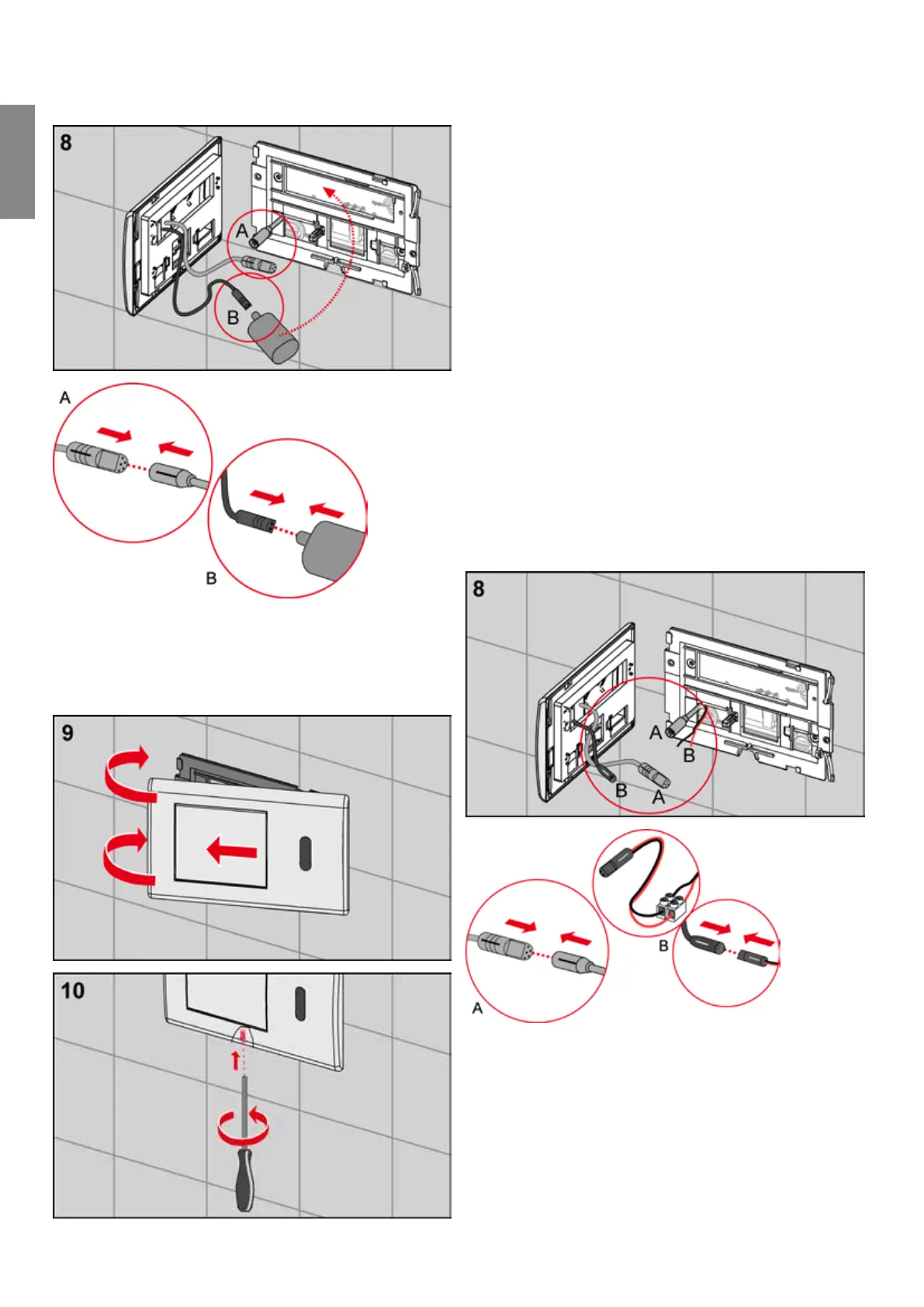

Connect the electronics to the actuation motor and the
battery via the plug. If installed correctly, directly after con-
necting all plugs and the power supply, the electronics will
automatically activate the motor once.
Hook the cover of the TECEplanus flush plate into the
right-hand side and fit it onto the support frame by means
of the snap lock. Then screw the vandal-resistant screw
from underneath into the flush plate (caution: be careful
not to damage the surface).
Installing the toilet infrared electronics, 12 V
mains
To connect the  V mains version, for each toilet flush
plate, you need a TECE transformer (order no. ,
order separately) and a connection cable (order no.
, order separately).
The steps for installing the toilet infrared electronics are
virtually the same (see the section entitled “TECEplanus,
Installing the toilet infrared electronics,  V battery” for
more information) apart from the connection to the elec-
tronics or power supply:
Connect the electronics to the actuation motor and the 
V mains via the plug or terminal strip. If installed correctly,
directly after connecting all plugs and the power supply,
the electronics will automatically activate the motor once.
