Flush-mounted installation of the glass urinal
flush plate
The first eight steps of the procedure for installing the
urinal flush plate for the U urinalflusher are the same for
all (flush-mounted) TECE flush plates – see “TECEsquare –
Flush-mounted installation of the glass urinal flush plate”.

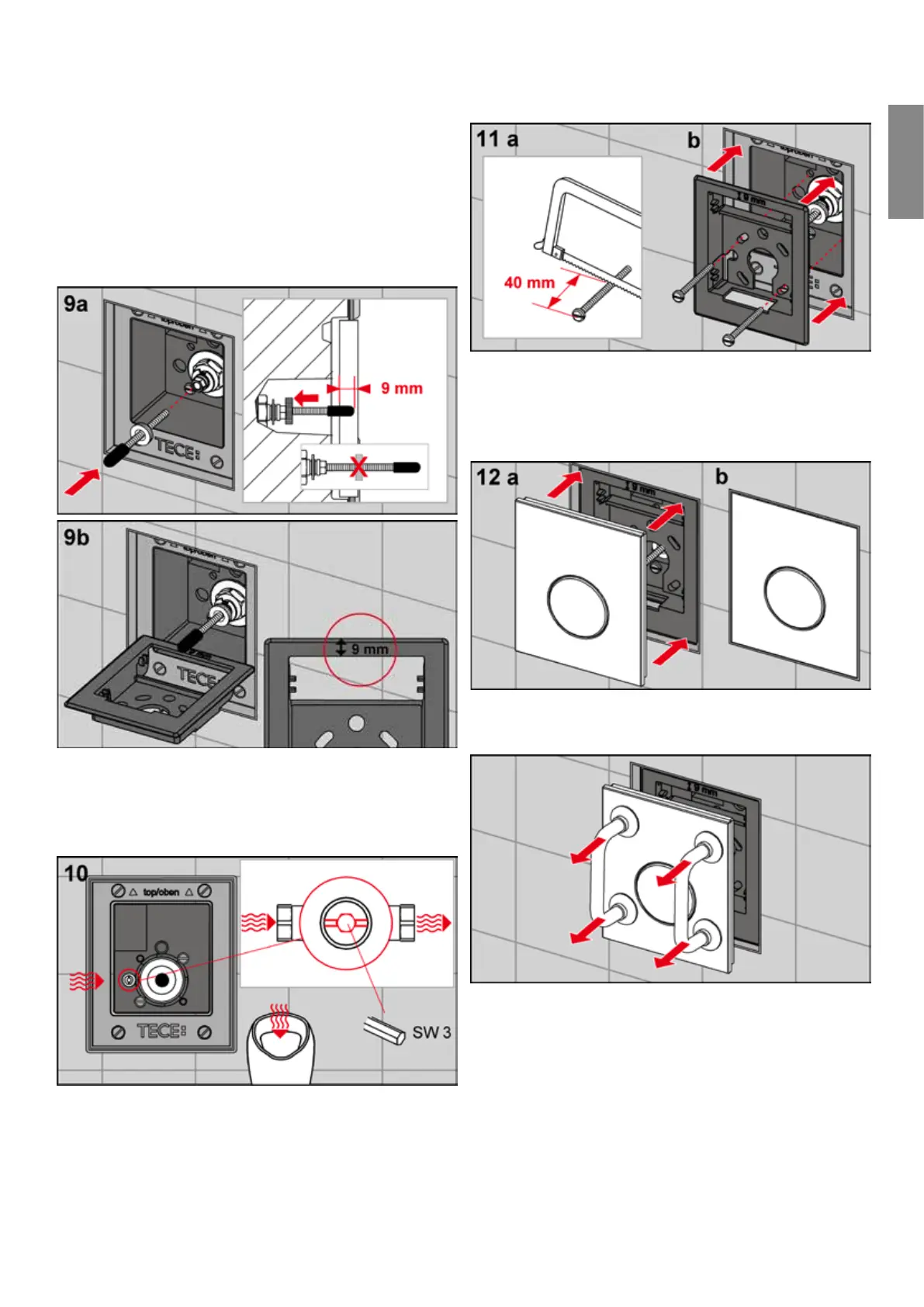

Screw in the actuating rods as described above (for flush-
mounted TECEloop, distance to front edge of inside of
installation frame = mm), and screw on the counter nut to
prevent them from turning.
Open the inlet flow control.
Screw the support frame onto the urinal flush valve hous-
ing. If necessary, shorten the two screws so that they do
not knock against the mounting cross beam (minimum
length on minimum wall structure = mm).
Allow the TECEloop flush plate cover to click into place in
the support frame.
The installed cover can be removed from the flush plate
using the bow-type handles included in the installation
frame's scope of supply. Only position the suction cups on
the cover to be removed.
-
