TECE Lux Mini - Installing the Metal Urinal Flush Plate

10
SW 3

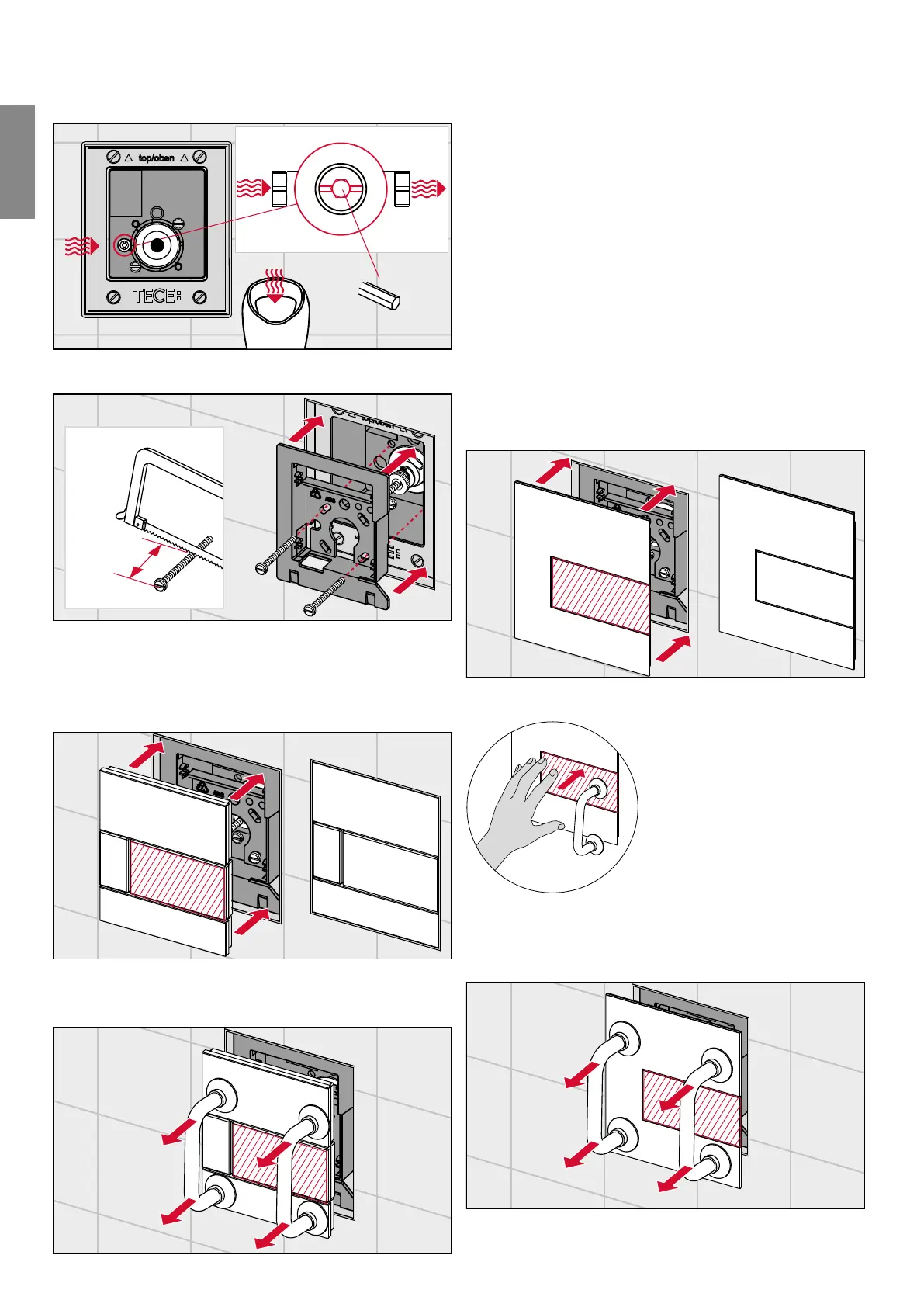

Open the inlet flow control.
11 a
40 mm
b
Screw the support frame onto the urinal flush valve hous-
ing. If necessary, shorten the two screws so that they do
not knock against the mounting cross beam (minimum
length on minimum wall structure =  mm).
12 a
b
Allow the TECEsquare flush plate cover to click into place
in the support frame.
When mounting or dismounting the cover, do not press the
button. The installed cover can be removed from the flush
plate using the bow-type handles included in the instal-
lation frame's scope of supply. Only position the suction
cups on the cover to be removed.
Installing the metal urinal flush plate
The procedure for the flush-mounted installation of the
TECEsquare metal urinal flush plate on the U  flush valve
housing is virtually the same as that for the flush-mounted
installation of the TECEsquare glass flush plate (see the
section entitled “TECEsquare – Flush-mounted installation
of the glass urinal flush plate”).
12 a
b
When mounting or dismounting the cover, do not press the
button and the cover should only be removed using the
suction handles.
