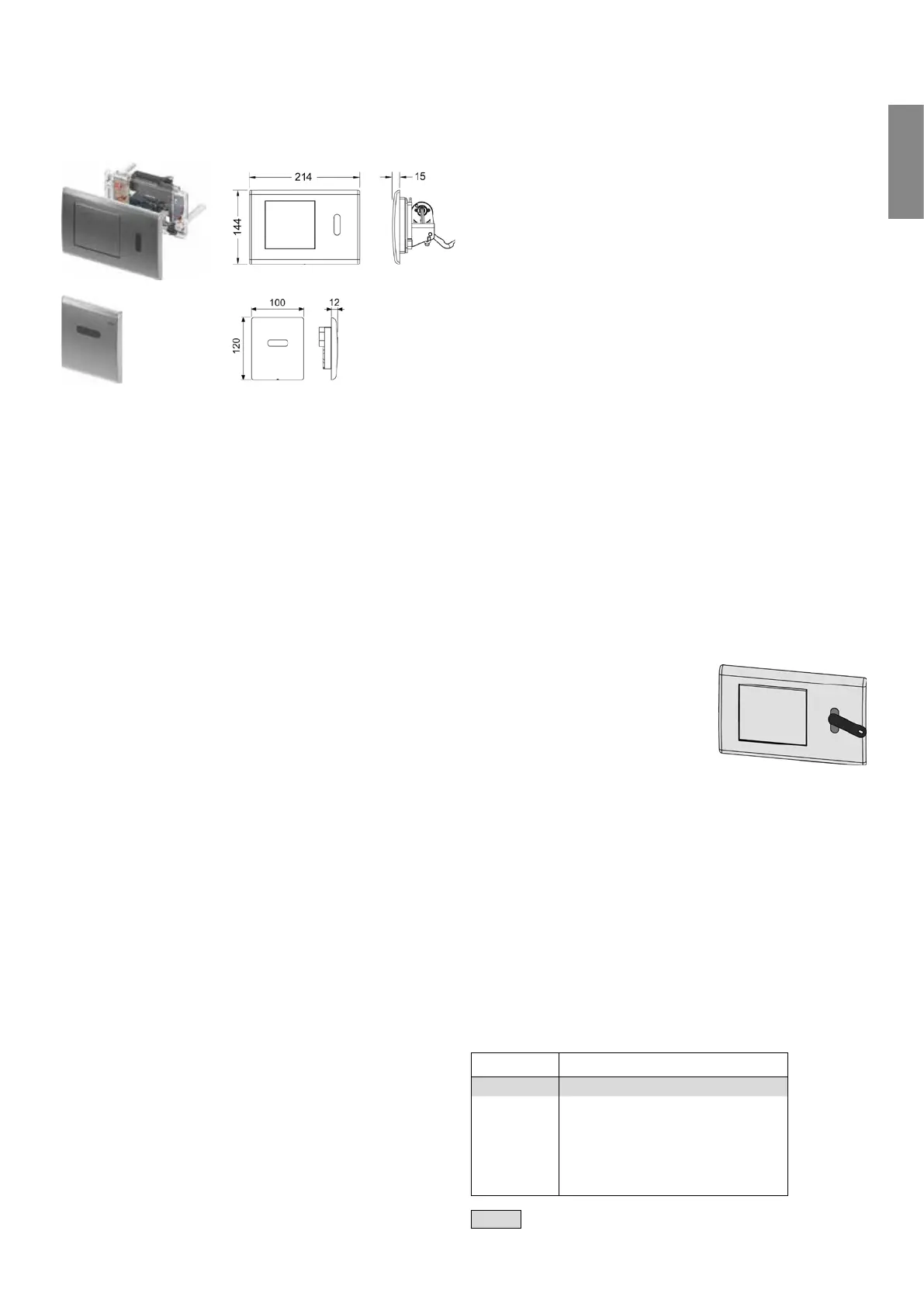

TECEplanus infrared electronics
TECEplanus toilet infrared electronics
TECEplanus urinal infrared electronics
TECEplanus infrared electronics are available for toilets
and urinals.
Thanks to the autofocus infrared sensor, these electronics
reliably detect use, and flush automatically. These elec-
tronics can either be powered by a V battery or by the
V mains variant.
Observe the following:
A transformer must be used for the V mains variant. A
suitable place for this (flush-mounted socket or other) must
be provided for the purpose as it must not be positioned
next to the flush plate under any circumstances.
The connection cable between the transformer and the
electronics must be max. metres in length.
The TECEplanus infrared electronics are protected from
theft by a vandal-resistant screw. On the toilet electronics,
an additional single-flush can also be activated by hand.
Toilet infrared electronics
The toilet infrared electronics activate the flush if some-
one enters the detection range and leaves again – after a
specified minimum period of time. The following parame-
ters must be observed in the process:
• The detection range is between 50and80 cm.
• The detection of people is not completed until a period
of at least 16 seconds has passed, during which time the
user must remain within the detection range.
• Actuation does not begin until the user has left the
detection range: after 5 seconds, a short beep can be
heard, after a further 2 seconds, flushing is activated.
If, within the last 7 seconds (5 + 2) the user enters the de-
tection field, the flush actuation stops and only starts again
after the user has left the range again, and after another 7
seconds have elapsed.
Cleaning function
Activating the cleaning function stops the toilet from
flushing for ten minutes. After this time, a cleaning flush is
automatically activated and the system returns to standard
operating mode.
• Activating the cleaning function:
Hold the programming key briefly
in front of the sensor window
until an acknowledgement beep
sounds.
• Disabling the cleaning function:
Hold the programming key briefly in front of the sensor
window. Three consecutive acknowledgement beeps
can be heard – the toilet electronics return to standard
operating mode.
The cleaning function can only be activated in standard
mode, not during the programming phase.
Programming the toilet infrared electronics
The toilet infrared electronics can be programmed within
the first 30 minutes after power connection. Each configur-
able function is assigned a position.
Position Function
1 Hygiene flush o
2 Hygiene flush 56 h
3 Hygiene flush 84 h
4 Hygiene flush 168 h
5 Hygiene flush 336 h
6 Hygiene flush 672 h
= factory setting
TECE flush plates – TECEplanus infrared electronics
-
