Flush-mounted installation of the glass toilet
flush plate
An installation frame is necessary for the flush-mounted
installation of the TECEsquare glass flush plate. The instal-
lation frame should already have been installed before car-
rying out the detailed installation (see the section entitled
“Flush-mounted installation” for more information).
As with all manual TECE flush plates, the first four steps for
installing the toilet flush plate are the same (see the sec-
tion entitled “Installing the TECEsquare II metal toilet flush
plate” for more information).

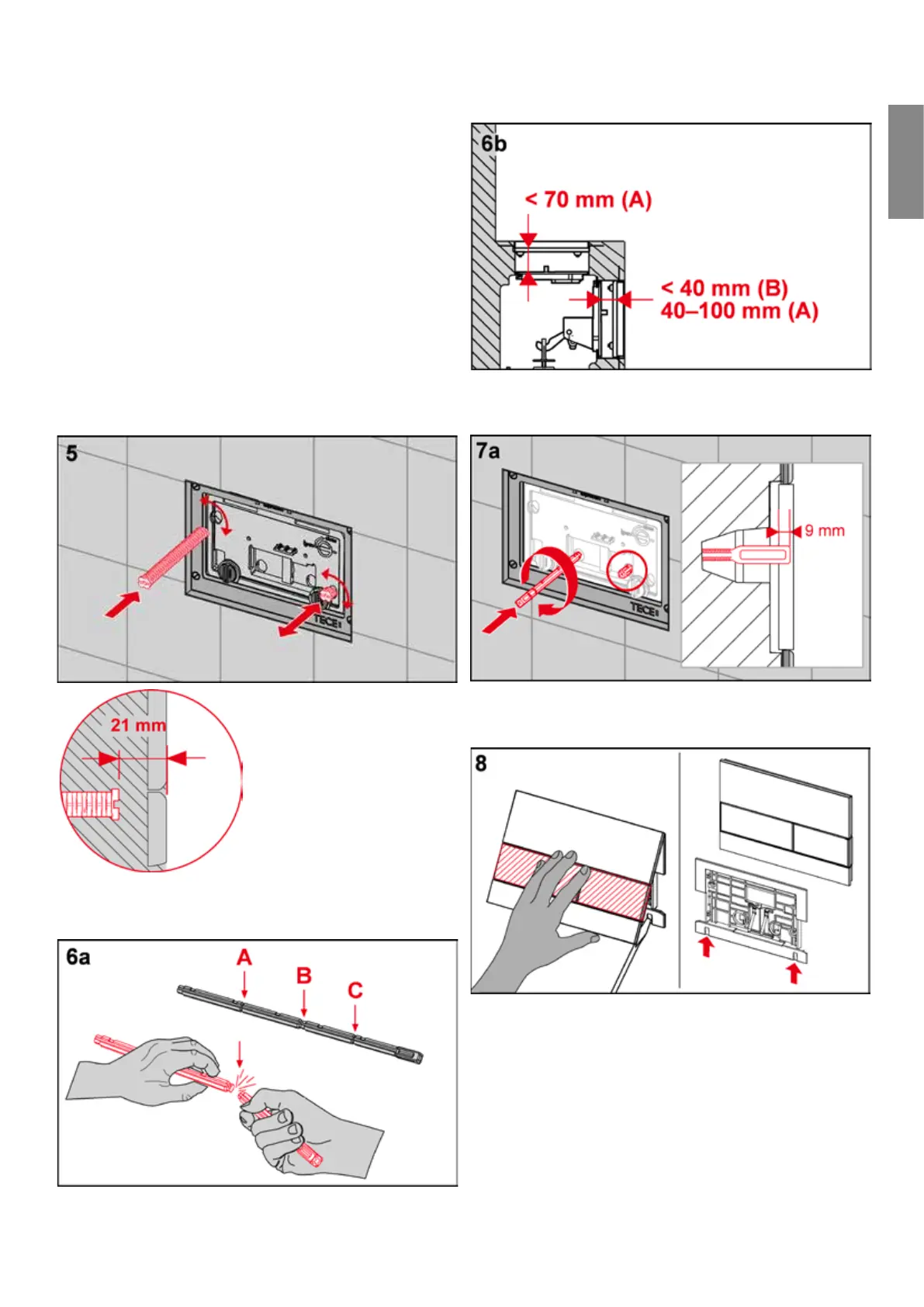

Screw in both attachment rods – distance of attachment
rods to wall surface = mm.
Break o the actuating rods according to the wall struc-
ture.
Screw in the actuating rods – distance of actuating rods to
front edge of inside frame = mm.
Remove the cover from the flush plate using a screwdriver.
Place the screwdriver into the recesses on the underside
of the flush plate and carefully remove the cover.
-
