Installation from above
In a brick-wall structure too, the flush-mounted installation
frame can be used to install the flush plate from the top.
Installation is the same as installing the flush plate from the
front. The frame must be mounted in the “reading direc-
tion” (= “TOP” lettering to the wall).

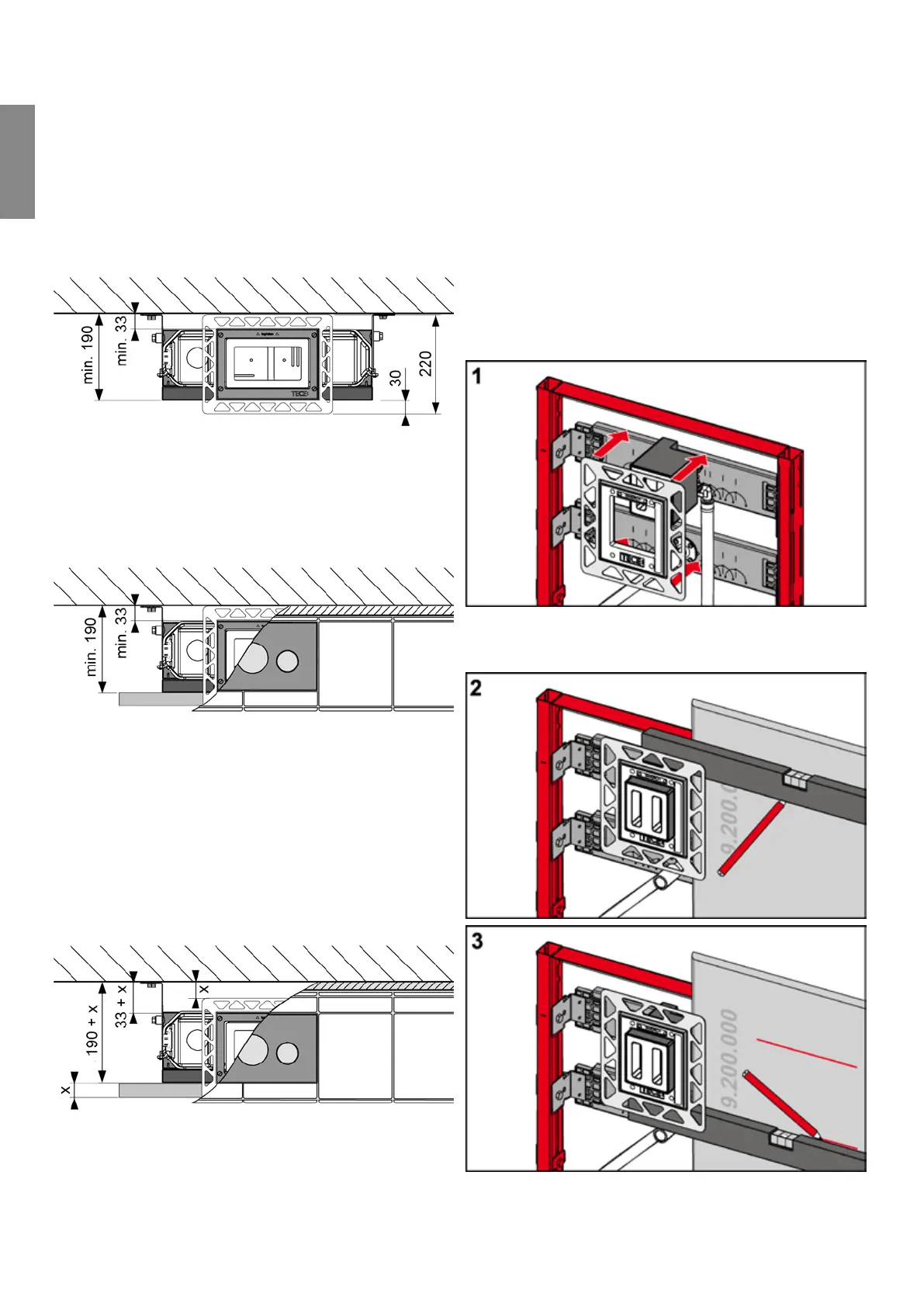

“Flush-mounted installation from above”– dimensions
Due to the installation frame's dimensions a thicker wall
structure is necessary:
Minimum wall structure = mm
“Flush-mounted installation from above” – minimum wall structure
On a minimum wall structure, there is no space left
between the installed flush plate and the wall (see illus-
tration above). However, for aesthetic reasons, an equal
distance in front of and behind the flush plate is preferred
(see illustration below). This also applies to the installation
of the TECEsquare metal flush plate which has slightly
larger dimensions.
“Flush-mounted installation from above” – wall structure (suggestion)
Dry-wall – urinal flush plate
A flush-mounted installation frame also exists for uri-
nals. The TECEloop urinal flush plate can be installed by
flush-mounting this frame in dry-wall structures.
Installing the urinal flush plate in a dry-wall
To insert the flush-mounted installation frame into the
plasterboard, a recess for the cistern's inspection opening
must be made in the plaster board.
To do this, place the installation frame over the urinal bare-
wall protection.
TECE flush plates – Flush-mounted installation
-
Flush plates
