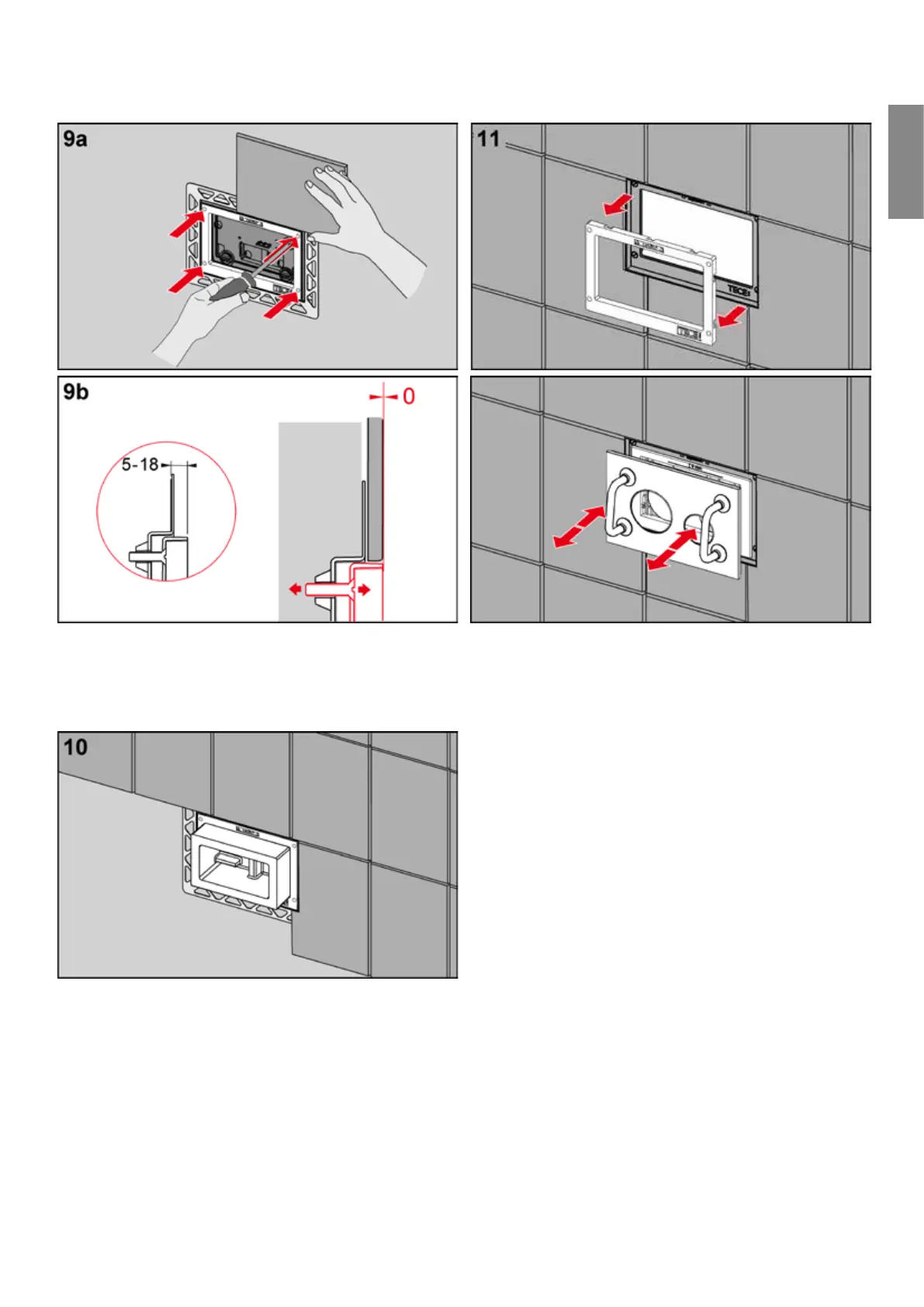

Adjust the depth of the installation frame to the tile thick-
ness (– mm). If the wall structure is thicker (up to
mm), as is the case for example with natural stone, you can
use a suitable upgrade kit (order no. ).
After adjusting the depth, you can tile right up to the instal-
lation frame.
Tip:
To obtain a perfect tile edge around the installation frame,
TECE recommends cutting the tiles with a water jet cutter.
Remove the support frame and polystyrene bare-wall
protection. Then mount the matching support frame as
described in the respective installation instructions (TECE-
loop or TECEsquare). Finally, insert the flush plate into the
flush-mounted installation frame with the aid of the bow-
type handles. The handles are included in the installation
frame's scope of supply.
-
Flush plates
