TECE Lux Mini - Installing the Urinal Flush Plate

Installing the urinal flush plate
The first seven steps of the procedure for installing the
urinal flush plate for the U  urinalflusher are the same
for all (wall-mounted) TECE urinal flush plates – see
“TECEsquare – Wall-mounted installation of the glass
urinal flush plate” for more information.

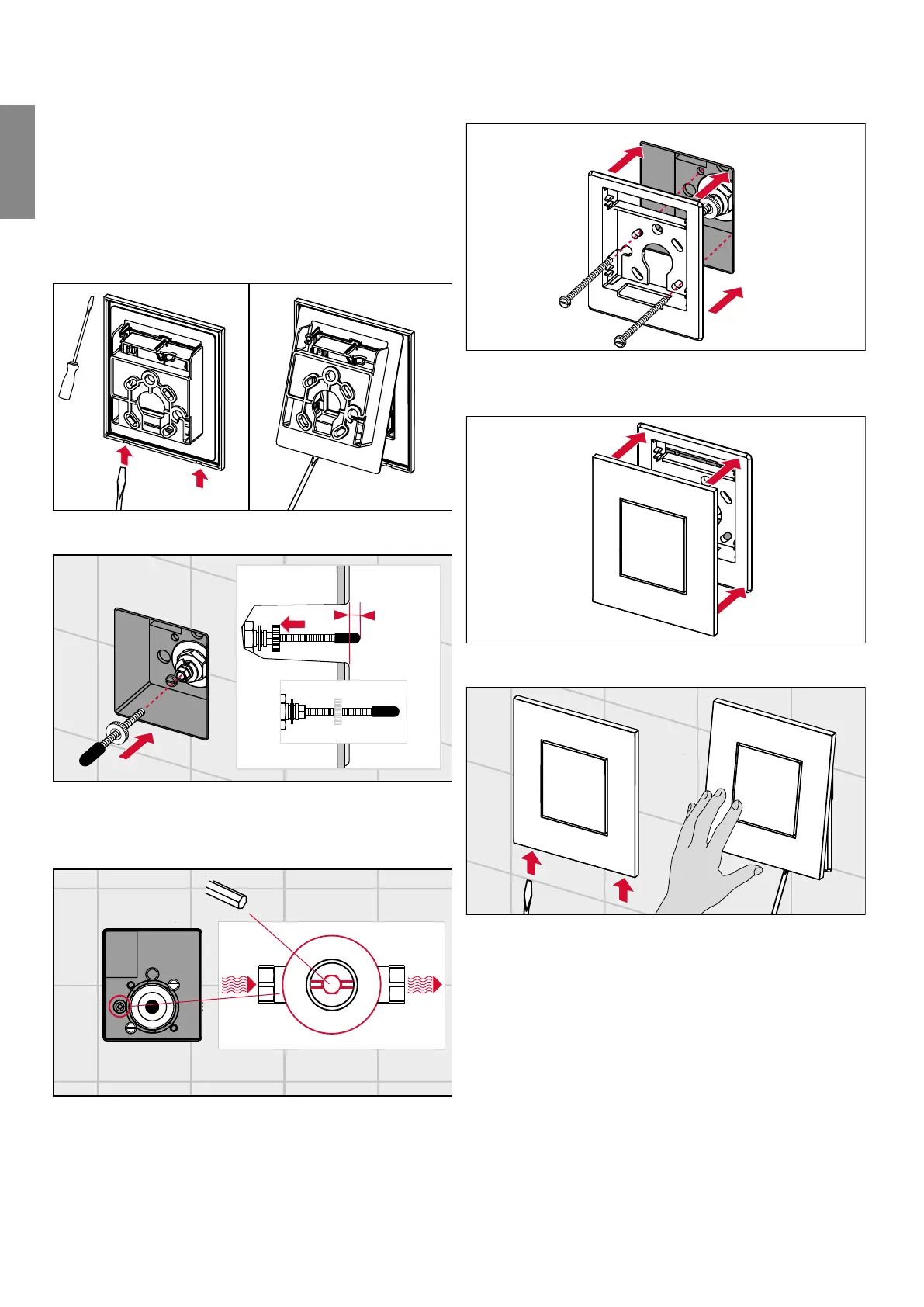

8
Separate the cover and the support frame.
9
9
2 mm
x
Screw in the actuating rods as described above (for the
TECEnow, distance to wall surface =  mm) and screw on
the counter nut to prevent them from turning.
10
SW 3
Open the inlet flow control.
11
Screw the support frame onto the urinal flush valve hous-
ing.
12
Finally, mount the flush plate cover.
The installed cover can be detached from the flush plate
using a screwdriver. To do this, insert the tool into the
recesses on the underside of the flush plate and carefully
remove the cover.
