7
7 mm

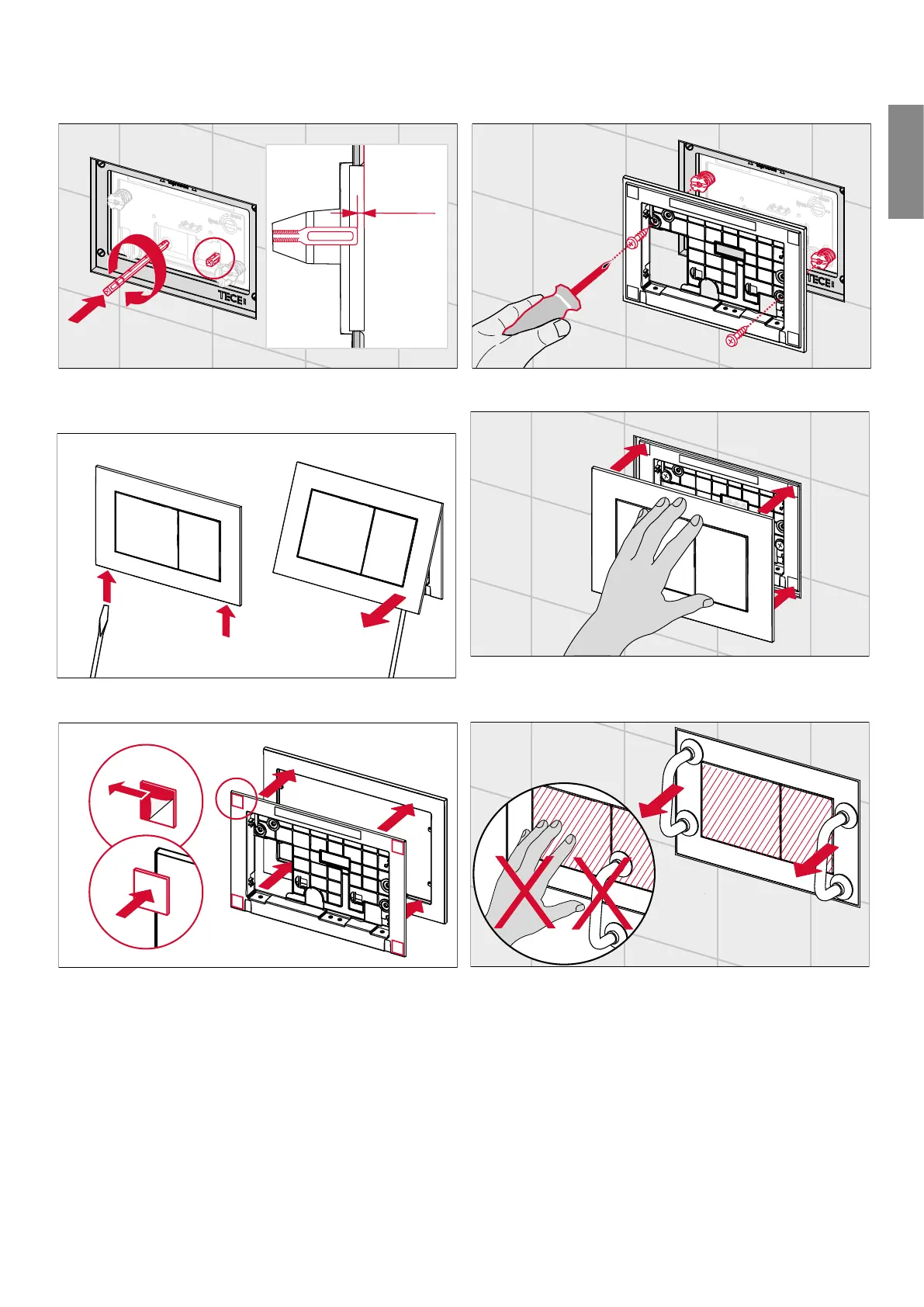

Screw in both actuating rods – distance of actuating rods
to wall surface = mm.
8
Separate the cover and the support frame.
9
Push the distance frame onto the support frame and stick
the spacers onto the support frame.
10
Screw the support frame onto the attachment rods.
11
Allow the TECEnow flush plate to click into place in the
support frame.
When mounting or dismounting the cover, do not press
the button; the cover should only be removed using the
suction handles.
-
Flush plates
