TECE Lux Mini - Installing TECEloop Glass Flush Plates (Toilet & Urinal)

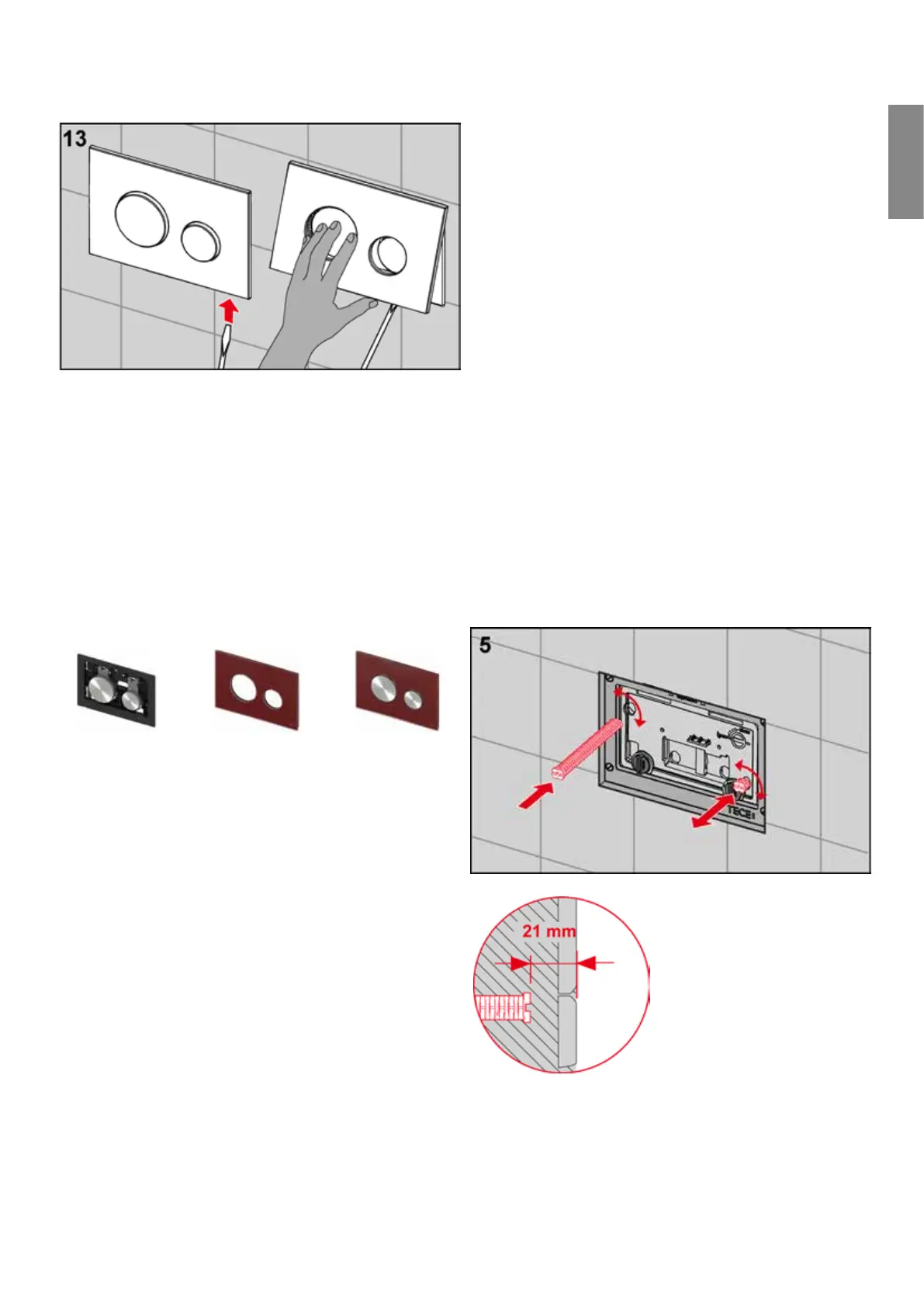

The installed cover can be detached from the flush plate
using a screwdriver. To do this, insert the tool into the
recesses on the underside of the flush plate and carefully
remove it.
TECEloop modular system
The modular system is available for the TECEloop toilet
flush plate with glass cover. The glass cover and flush plate
must be ordered separately. This ensures a wide range of
colour combinations (total of  possibilities).
Buttons + cover = toilet flush plate
+ =
The concept behind the TECEloop modular system is to
enable the flush plate to match the bathroom's existing
colour scheme as far as possible. For this reason, some of
the glass covers are colour-coordinated with products from
Alape, EMCO or Burgbad.
Wall-mounted installation of the glass toilet
flush plate
The wall-mounted installation of the TECEloop flush plate
with a plastic or glass cover is virtually the same (see
section on “TECEsquare, Installing the TECEsquare II metal
toilet flush plate”). The only dierence is that the cover
does not need to be dismounted as it is already separated
on delivery.
Flush-mounted installation of the glass toilet
flush plate
An installation frame is necessary for the flush-mounted
installation of the TECEloop glass flush plate. The installa-
tion frame should already have been installed before car-
rying out the detailed installation (see the section entitled
“Flush-mounted installation” for more information).
As with all TECE flush plates, the first four steps for install-
ing the toilet flush plate are the same (for more informa-
tion, see the section entitled “TECEsquare, Installing the
TECEsquare II metal toilet flush plate”).
Screw in both attachment rods – distance of attachment
rods to wall surface =  mm.
-
Flush plates
