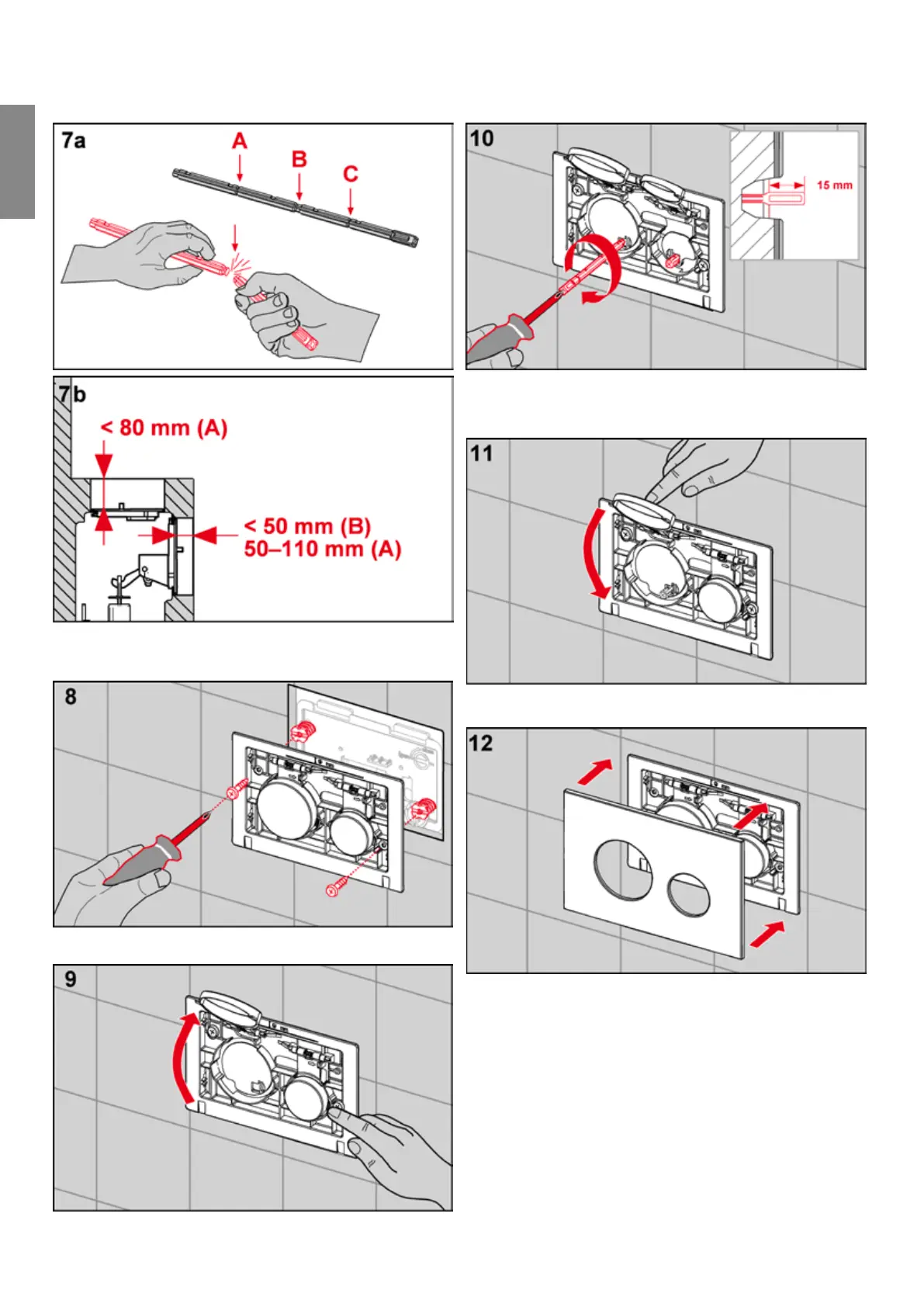

Break o the actuating rods according to the depth of the
wall structure.
Screw the support frame onto the attachment rods.
Unlock both buttons from the right and lift up.
Screw in the actuating rods through the corner supports –
distance to front edge of support frame = mm.
Fold down and lock both buttons.
Allow the TECEloop flush plate cover to click into place in
the support frame.
TECE flush plates – TECEloop
-
Flush plates
