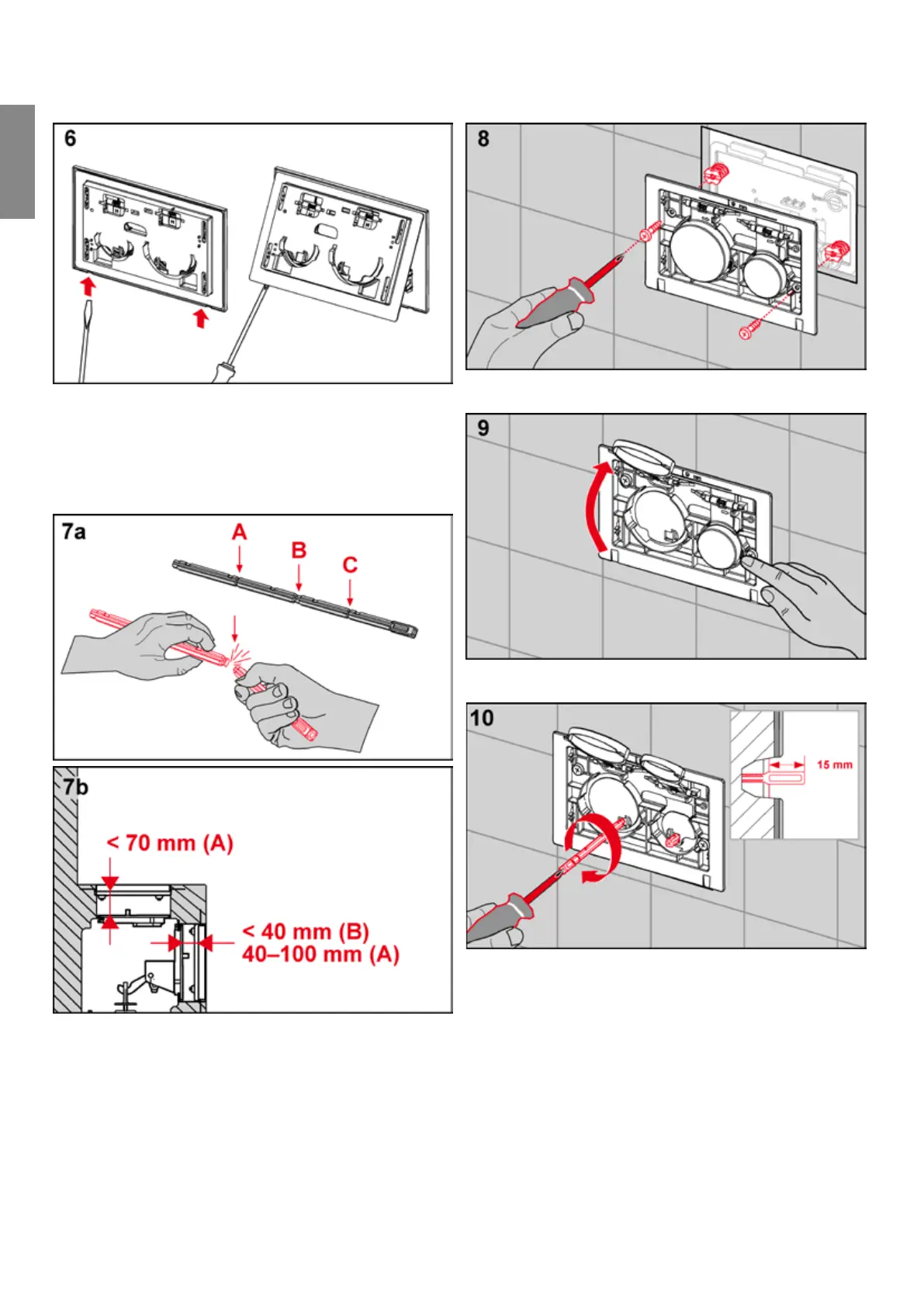

The cover and flush unit are supplied ready-mounted, and
must be separated for the installation. Remove the cover
from the flush plate using a screwdriver. Place the screw-
driver into the recesses on the underside of the flush plate
and carefully remove the cover.
Break o the actuating rods according to the wall struc-
ture.
Screw the support frame onto the attachment rods.
Unlock both buttons from the right and lift up.
Screw in the actuating rods through the corner supports –
distance to front edge of support frame = mm.
TECE flush plates – TECEloop
-
Flush plates
