6a
6b
< 80 mm (A)
< 50 mm (B)
50–110 mm (A)

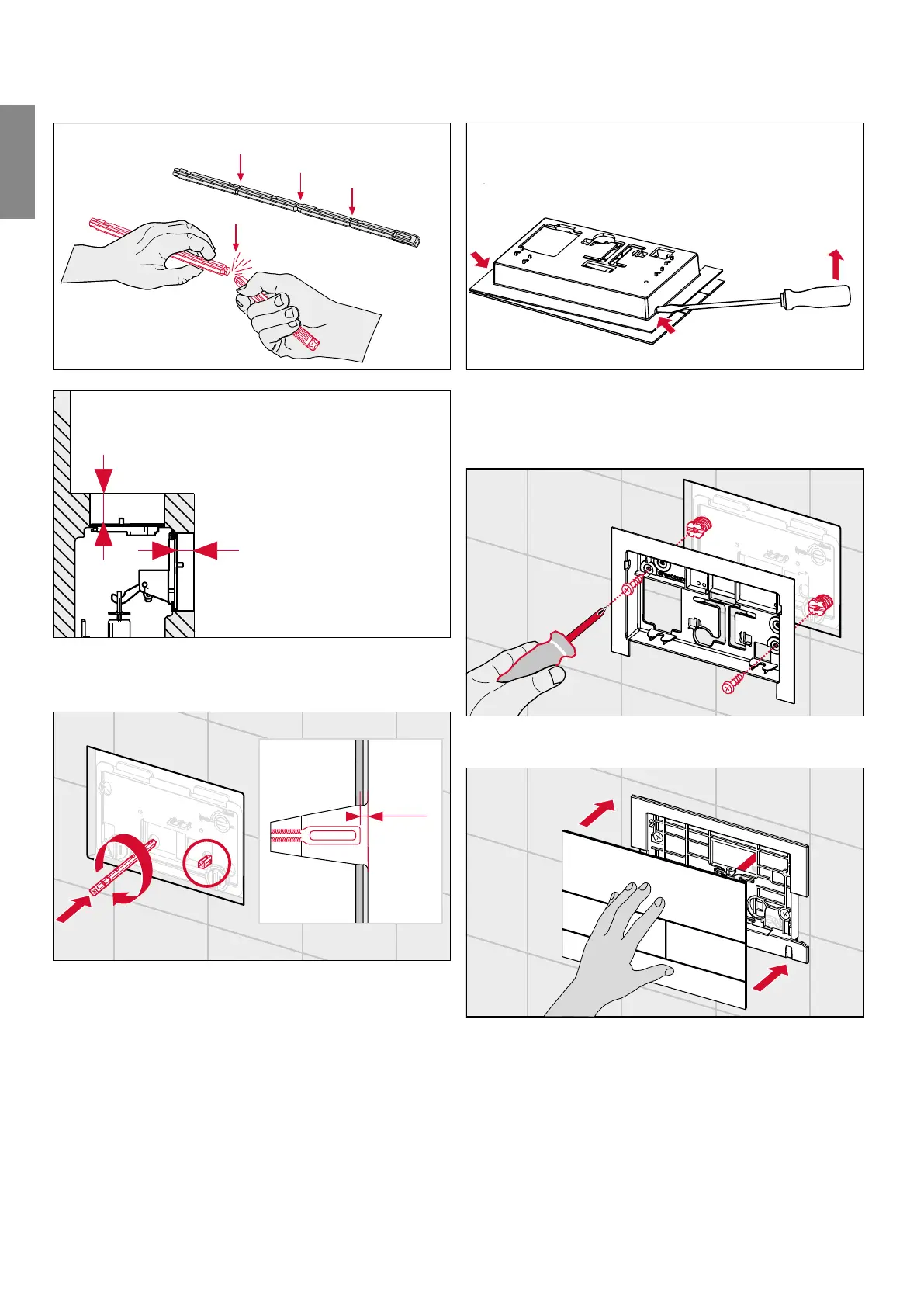

Break o the actuating rods according to the wall struc-
ture.
7
2 mm
Screw in both actuating rods – distance of actuating rods
to wall surface =  mm.
8
Remove the cover from the flush plate using a screwdriver.
Place the screwdriver into the recesses on the underside
of the flush plate and carefully remove the cover.
9
Screw the support frame onto the attachment rods.
10
Allow the TECEsquare II flush plate cover to click into
place in the support frame.
