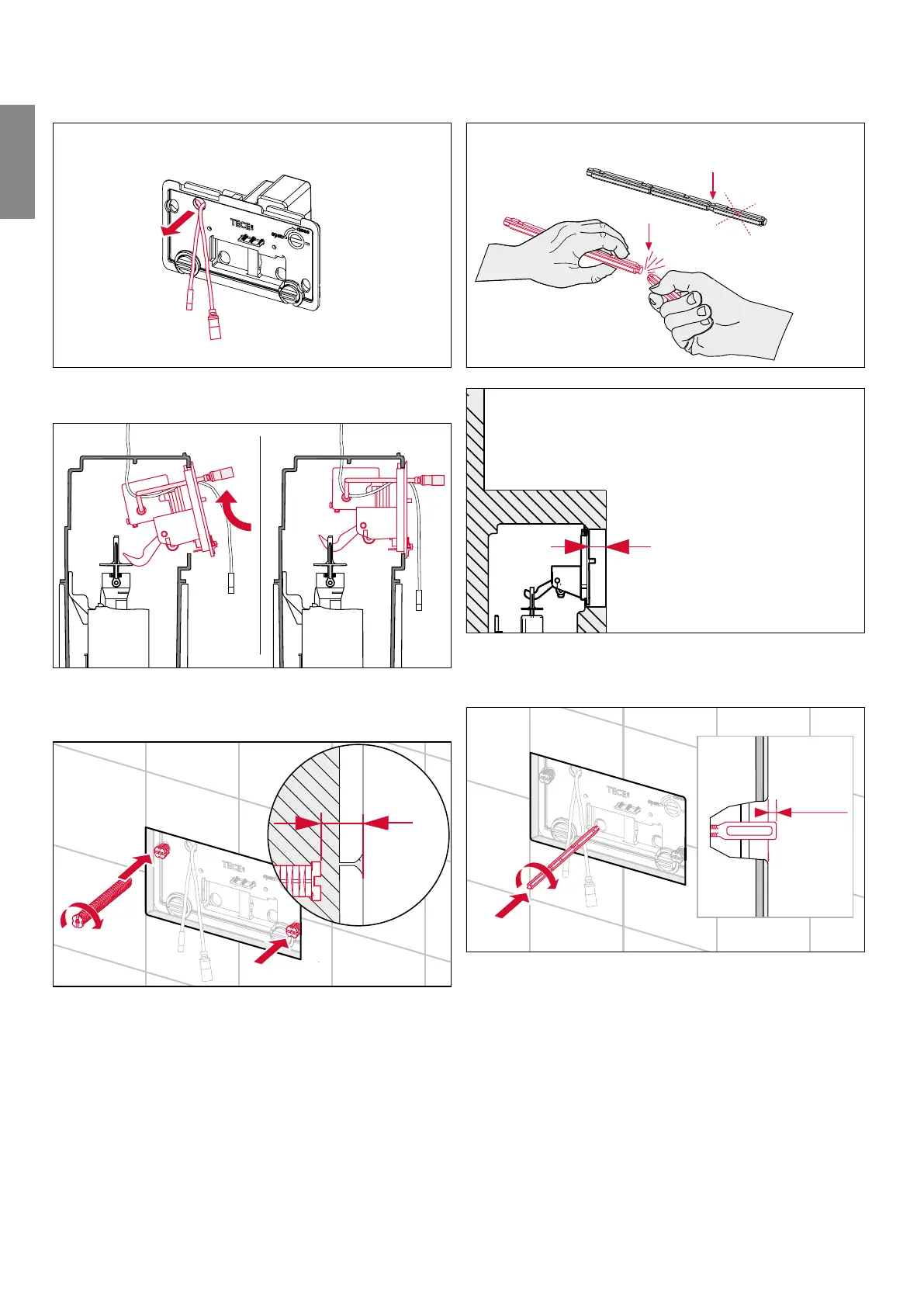

Guide the cable and plug through the splash guard.
6
Place the splash guard and actuation motor back in the
cistern.
7
Screw in both attachment rods – distance of attachment
rods to wall surface = mm.
8a
A
8b
< 60 mm (A)
Break o the actuating rods according to the wall struc-
ture.
9
3 mm
Screw in both actuating rods – distance of actuating rods
to wall surface = mm.
