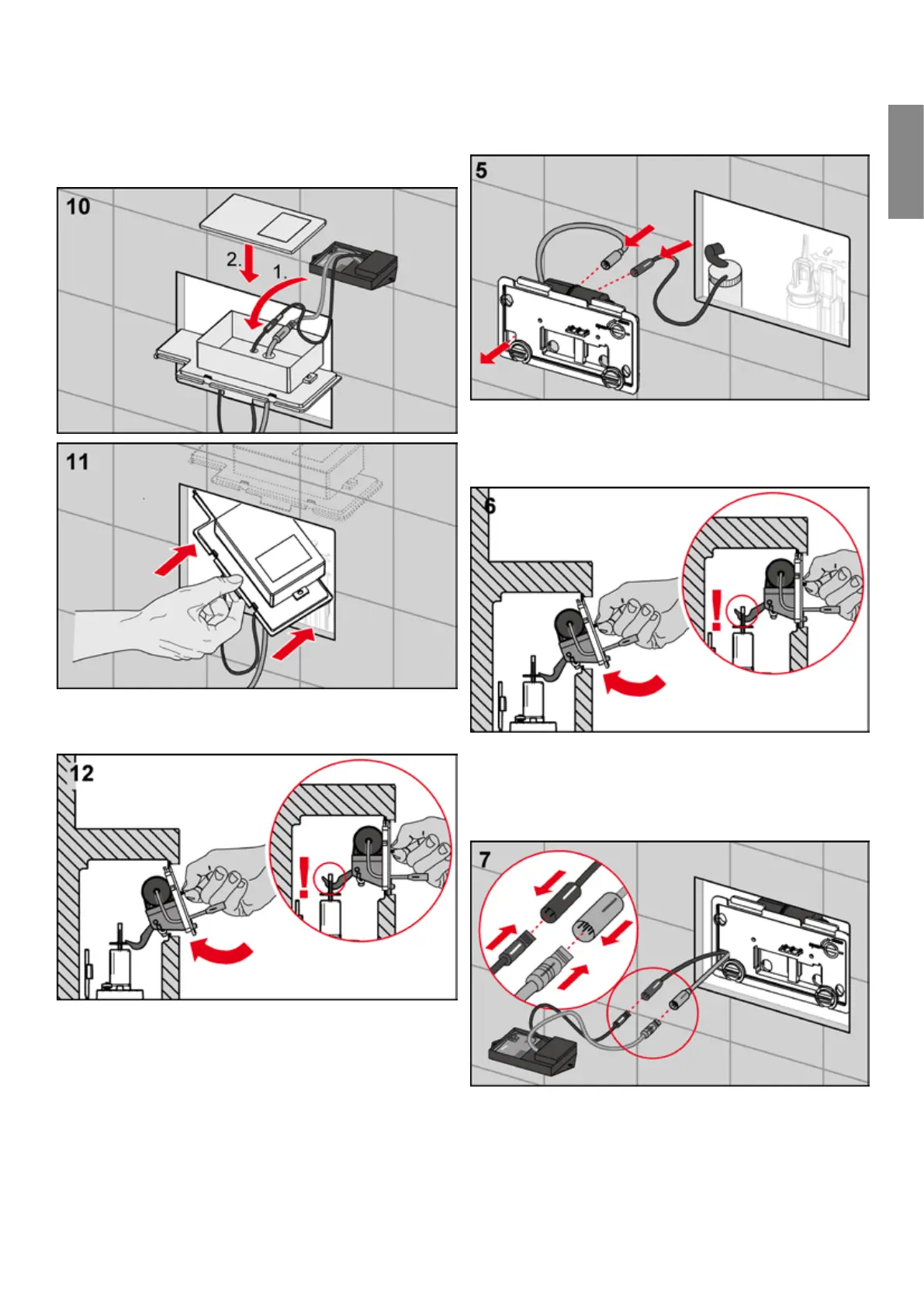

Now check that the motor is functioning correctly. To do
this, press the button again to activate the motor once.
Place the electronics in the installation box, seal and place
back in the cistern.
Insert the splash guard for the electronics with the actu-
ation motor. The activation hooks must fit correctly in the
drain valve's drawbar eyelets. Tighten the splash guard
clamping screws.
Finally, install the flush plate.
... Toilet module (dry-wall and brick-wall) without conduits
Guide the cable for the actuation motor and battery
through the opening in the splash guard so that it is easier
to connect in the next step.
Insert the splash guard for the electronics with the actu-
ation motor. The activation hooks must fit correctly in the
drain valve's drawbar eyelets. Tighten the splash guard
clamping screws.
Connect the radio electronics first to the motor (grey plug)
and then also to the batteries (black plug). If the installation
is correct, the motor will be activated once for checking
purposes.
-
Flush plates
