... Geronto module with conduits

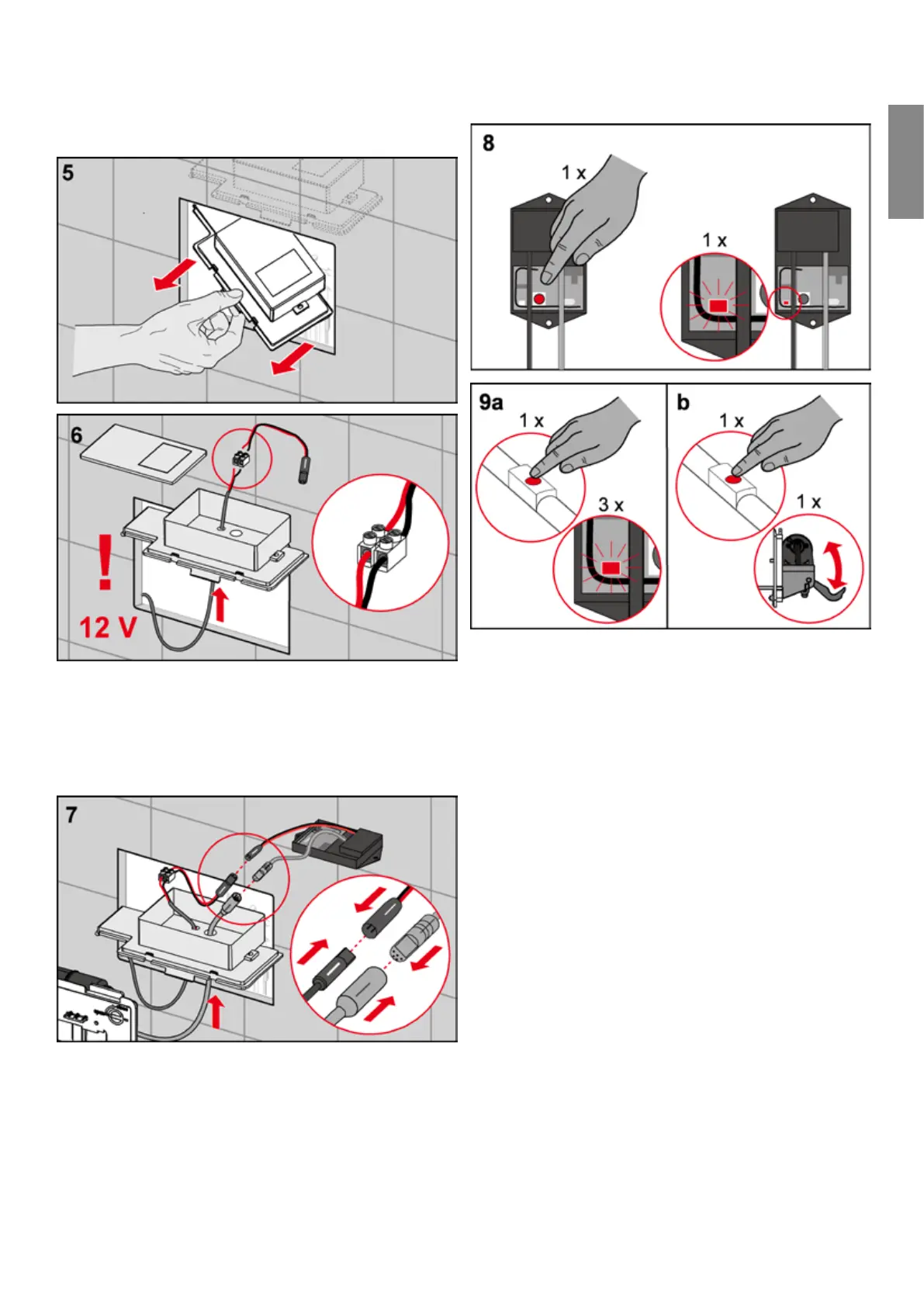

Open the cistern cover and remove it with the installation
box. Guide the ( V) transformer cable from beneath
through the opening in the bottom of the box and connect
it to the mains connection adapter (ensure correct polarity
– see details in fig. ).
Connect the radio electronics first to the motor (grey plug)
and then also to the batteries (black plug). If the installation
is correct, the motor will be activated once for checking
purposes.
After installing the radio receiver, it must be coordinated
with the signal from the button on the safety arm support.
To do this, press the blue button on the receiver electron-
ics, the LED next to it will then briefly light up once (fig.
). After this, the receiver is ready for reception for one
minute. During this time, press the button on the safety
arm support once to establish a connection with the
receiver electronics. If successfully connected, after acti-
vating the switch, the control LED on the receiving unit will
flash three times.
Now check that the motor is functioning correctly. To do
this, press the button again to activate the motor once.
-
Flush plates
