... Geronto module with conduits

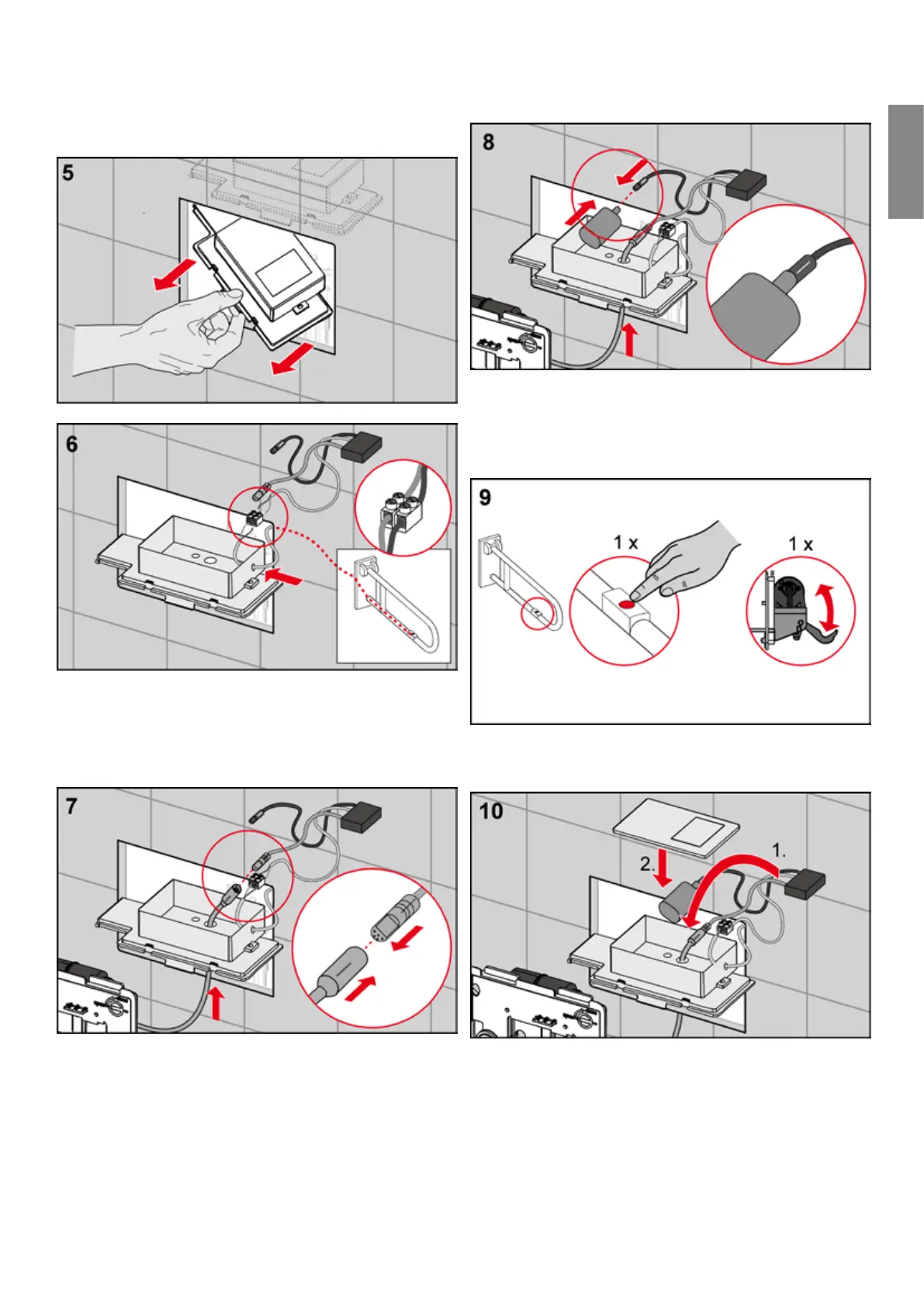

Open the cistern cover and remove it with the installation
box. Guide the cable from the switch on the safety support
arm from the side into the box and connect it to the elec-
tronics (terminal strip – ensure correct polarity).
Connect the electronics first to the motor (black plug) and
then to the batteries (grey plug). If the installation is cor-
rect, the motor will be activated once for checking pur-
poses.
Now check that the function is working: To do this, press
the button again to activate the motor (once).
-
Flush plates
