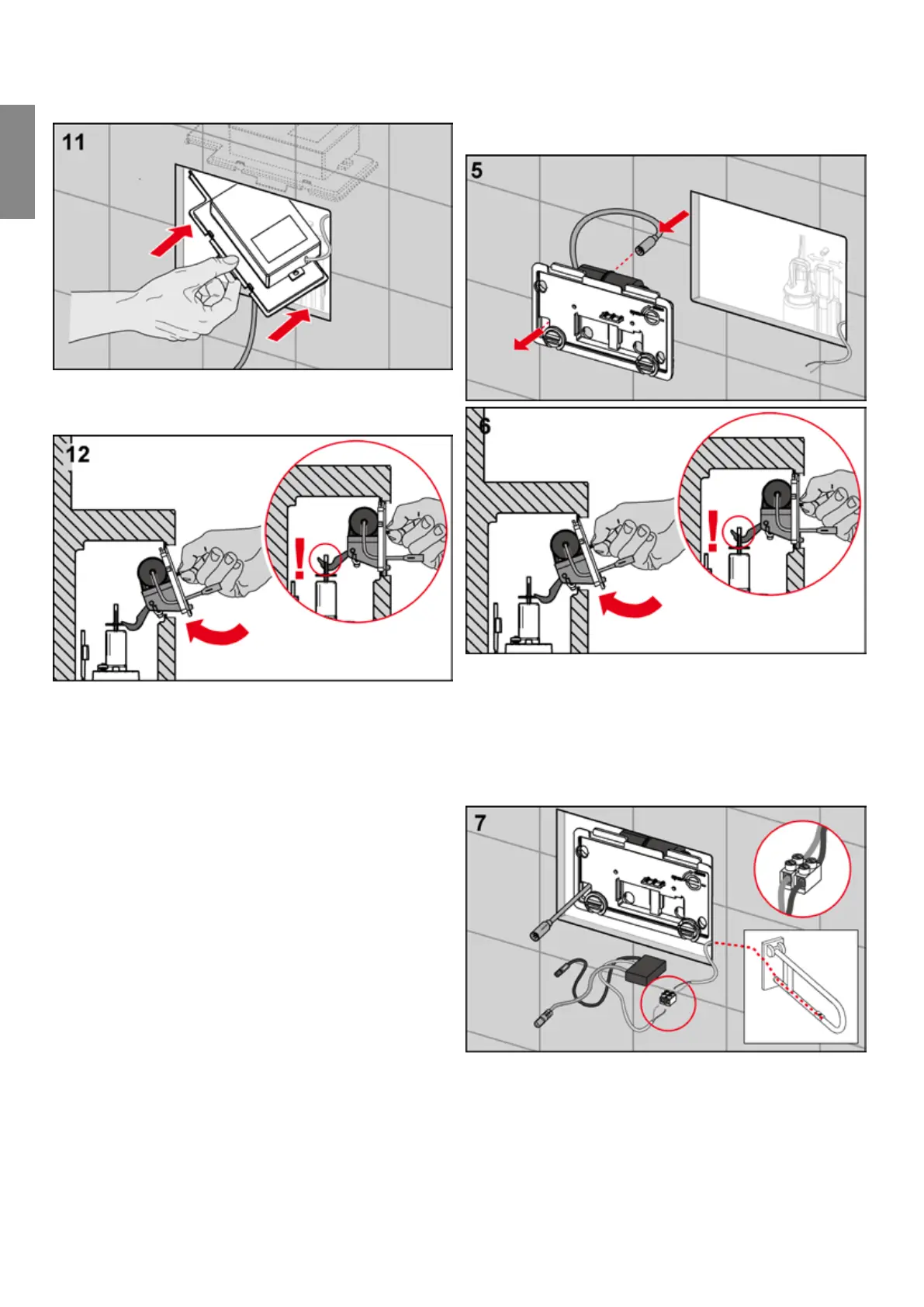

Place the electronics and the battery in the installation box,
seal and place back in the cistern.
Insert the splash guard for the electronics with the actu-
ation motor. The activation hooks must fit correctly in the
drain valve's drawbar eyelets. Tighten the splash guard
clamping screws.
Finally, install the flush plate.
... Toilet module (dry-wall and brick-wall) without conduits
Guide the actuation motor cable through the opening in the
splash guard.
Then, insert the splash guard for the electronics with the
actuation motor. The activation hooks must fit correctly in
the drain valve's drawbar eyelets. Tighten the splash guard
clamping screws.
Connect the cable from the switch on the safety support
arm to the electronics (terminal strip). Ensure correct polar-
ity.
TECE flush plates – TECEplanus electronics, cable-connected remote release
-
