3
min. 20 s

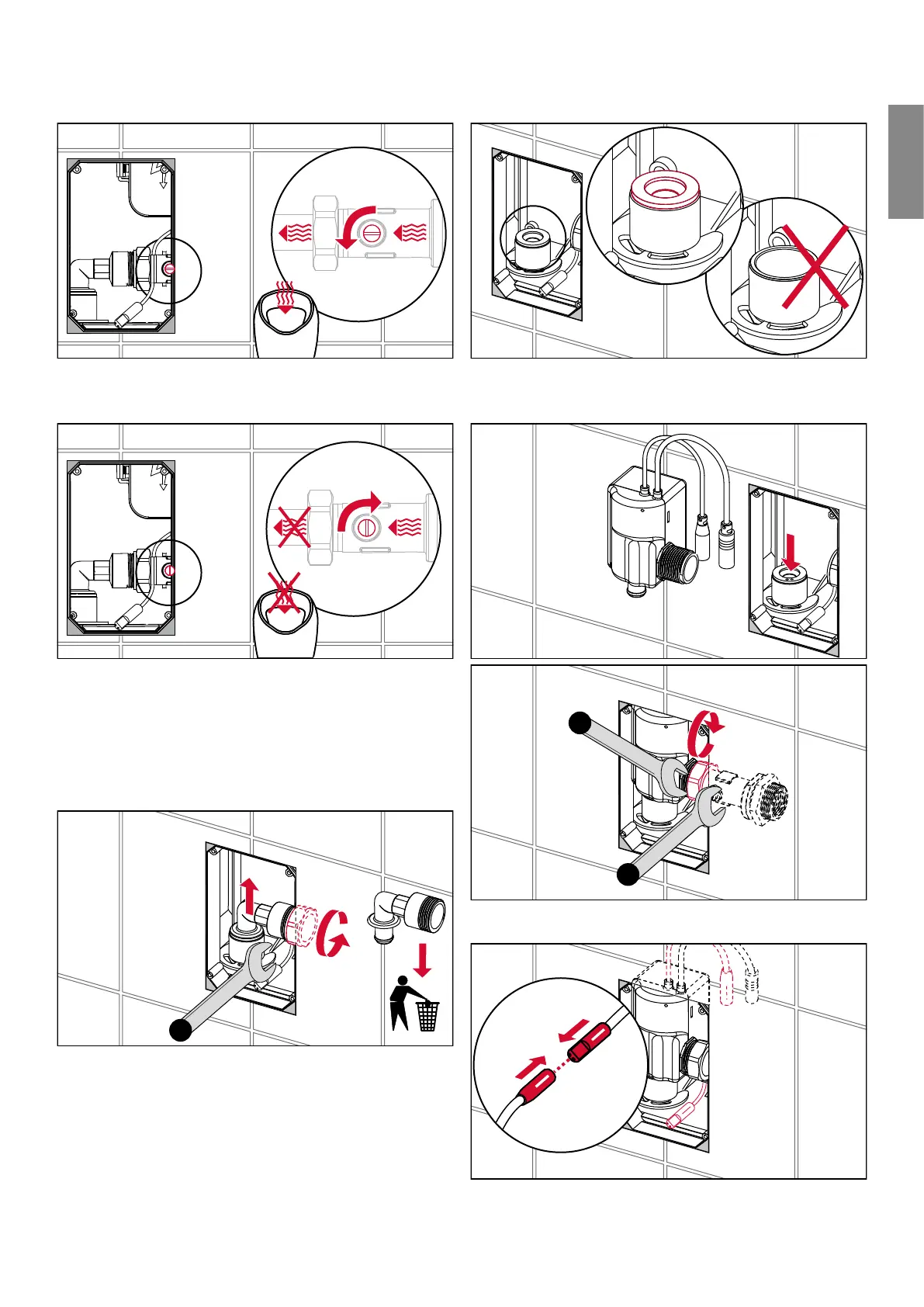

To flush out the connection pipe, open the inlet flow con-
trol and suciently flush out the pipe.
Before mounting the flusher, make sure that the inlet flow
control is closed so that no water can leak out during
assembly. Close the shut-o using a flat-head screwdriver.
In the free-flow setting (fig. ), the shut-o slot is parallel
with the housing, and in the closed setting (fig. ), it is at
right angles to the housing.
5
30
Loosen and remove the flush pipe elbow.
6
Make sure that the connection piece is fitted with a seal.
This seal can be greased if necessary.
8
30
!
22
Insert the flusher and close it with the union nut.
9
Connect the transformer's plug-in connection.
-
Flush plates
