TECE Lux Mini - Page 93

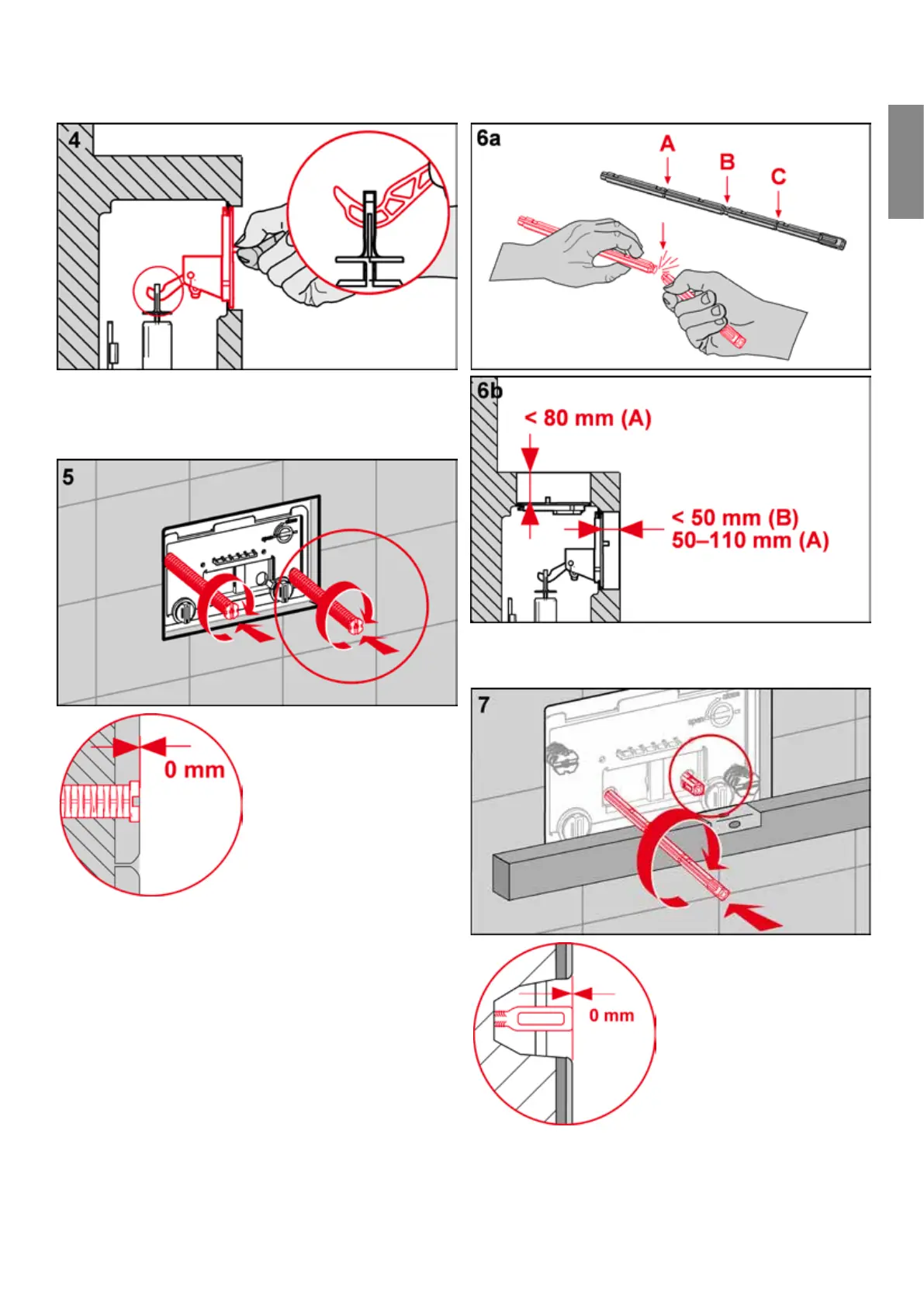

Break o the actuating rods according to the thickness of
the wall structure.
Turn both actuating rods until they are in contact with the
surface of the wall.
The activation hooks must fit correctly in the drain valve's
drawbar eyelets. Tighten the splash guard clamping
screws.
Turn both attaching rods until they are in contact with the
surface of the wall.
-
Flush plates
