BIOSTRENGTH LINE: Service & Maintenance manual - rev. 2.1
Page 7.147
7.4.20. DISASSEMBLING THE SINKER

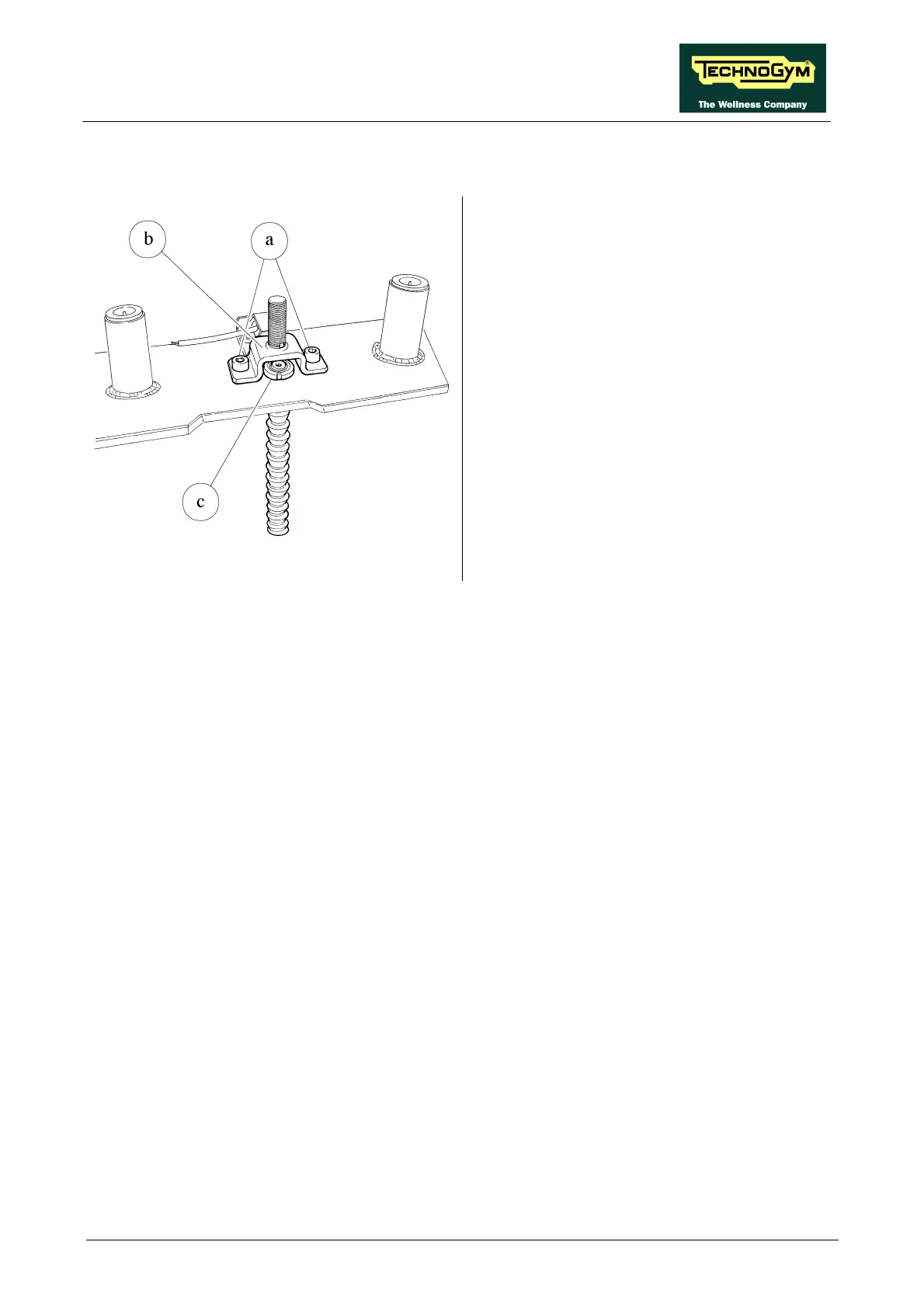

Figure 7.4.20-1
Follow the steps described in paragraph 7.4.19.
“Disassembling the cross”.
1. Place the cross on a bench or flat surface.
2. Unscrew the 2 screws a using an 8-gauge
hexagonal T-wrench.
3. Remove the cable connector flange b.
4. Use a 30-gauge Allen wrench to unscrew the
ring-nut c.
5. Remove the SINKER.
To reassemble the SINKER, follow the above
steps in reverse order.
