7.8.7. DISASSEMBLING THE REAR PLEXIGLAS WEIGHT STACK GUARD

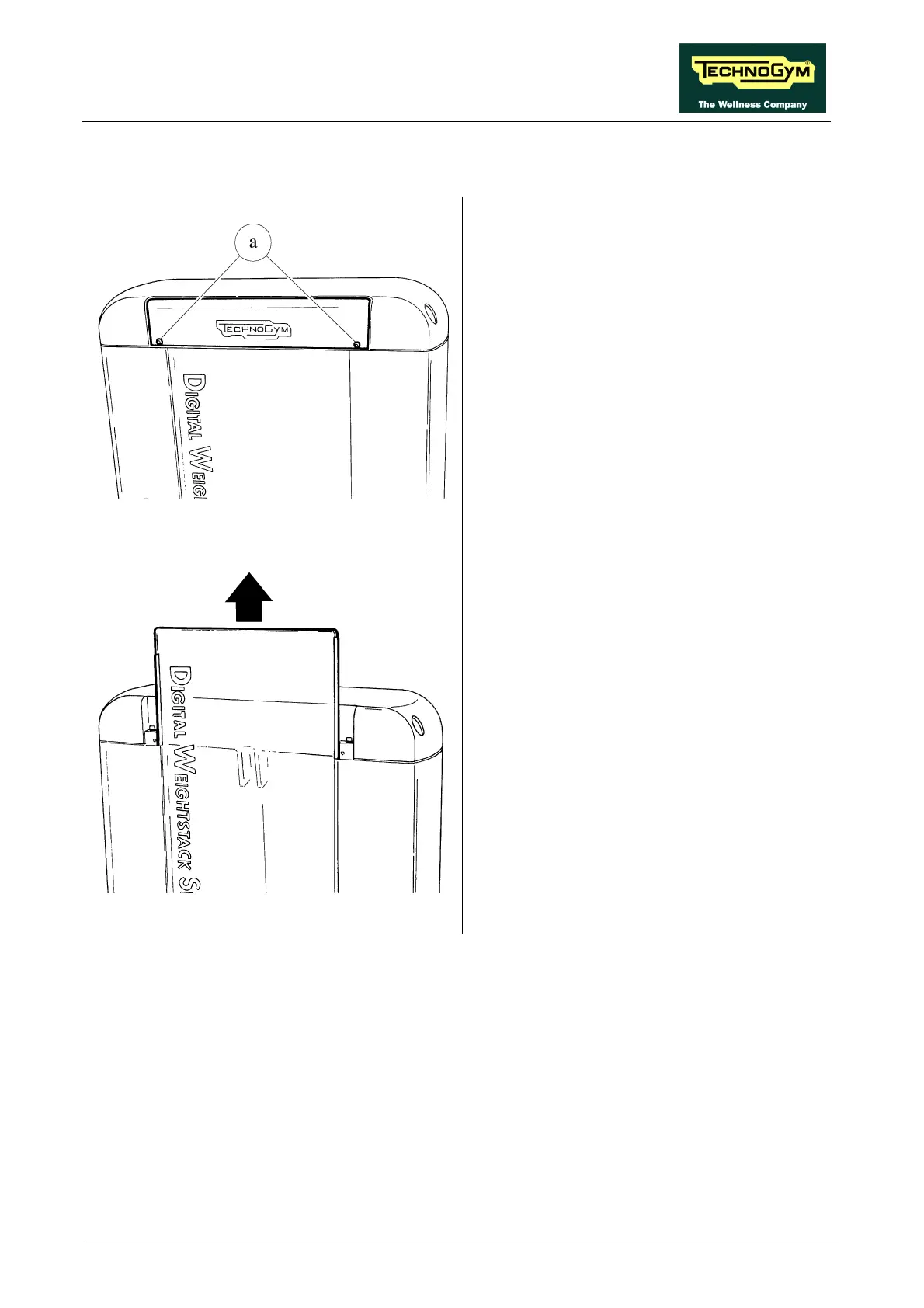

Figure 7.8.7-1
1. Shut off the equipment and unplug the power
cord from the wall socket.
2. Unscrew the 2 screws a using a 3-gauge
hexagonal T-wrench.
3. Remove the Plexiglas cover.
Figure 7.8.7-2
4. Pull the PLEXIGLAS upward, taking care
with the rubber gasket.
To reassemble the PLEXIGLAS, follow the
above steps in reverse order.
