BIOSTRENGTH LINE: Service & Maintenance manual - rev. 2.1
Page 7.380
7.9.33. DISASSEMBLING THE SEAT MOTOR UNIT

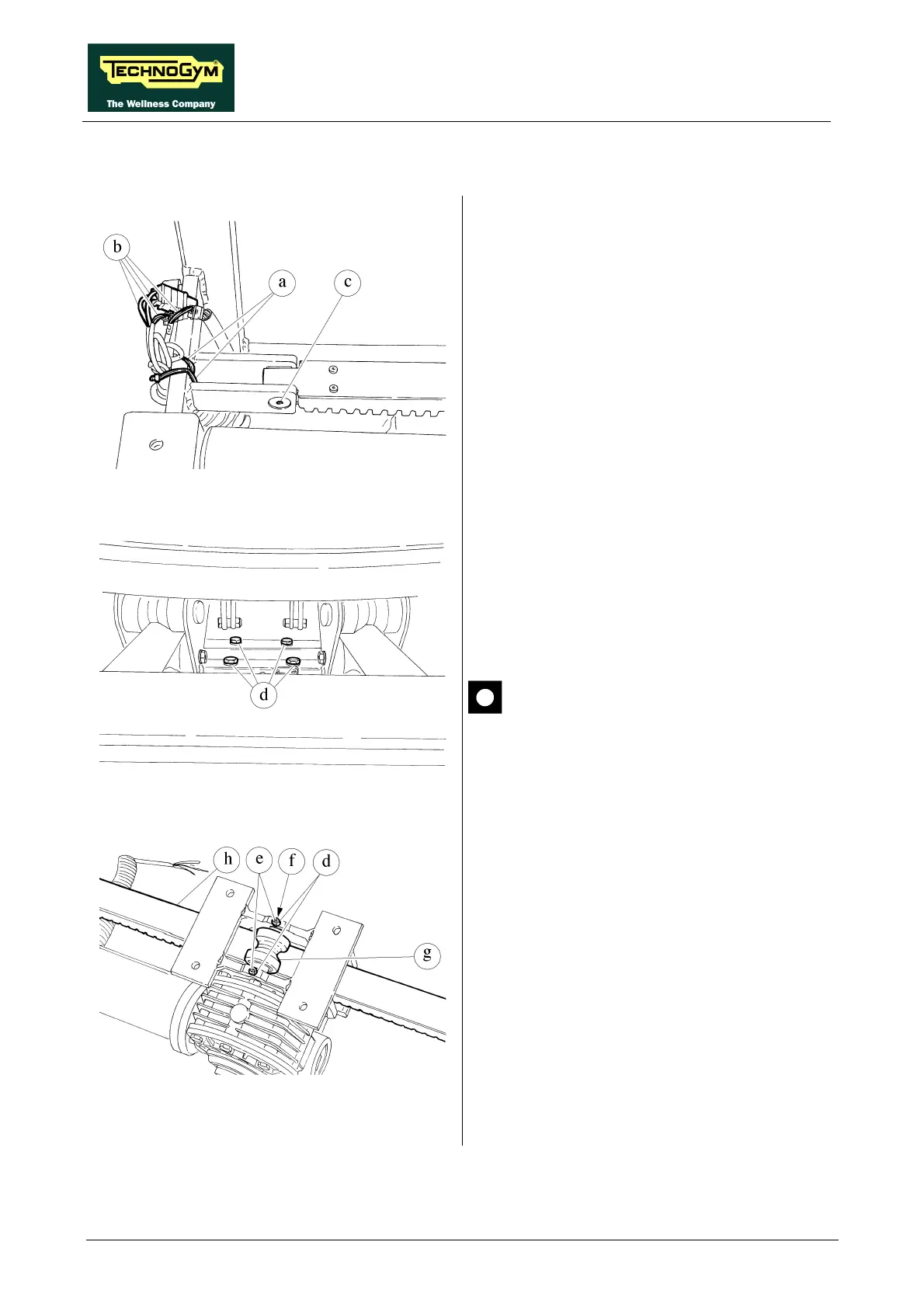

Figure 7.9.33-1
Follow the steps described in paragraph 7.9.24.
“Disassembling the rear guard” and 7.9.25.
“Disassembling the central guard”.
1. Cut the clamps a.
2. Disconnect the cable connectors b.
3. Unscrew the screw c using a 6-gauge
hexagonal T-wrench.
Figure 7.9.33-2
4. Disconnect the cable connectors of the 2
microswitches.
5. Use a 4-gauge wrench to unscrew the 17
screws d.
Hold the MOTOR UNIT up before
unscrewing the screw. Use caution, as it
weighs 22 Kg.
Figure 7.9.33-3
Place the MOTOR UNIT on a bench:
6. Loosen the counter-nuts d using an 8-gauge
wrench.
7. Unscrew the dowels e, using a 2.5-gauge
hexagonal T-wrench.
8. Remove the pin f.
9. Remove the winch g.
10. Remove the rack h.
Continued on next page →
