7.7.15. DISASSEMBLING THE ZERO SENSOR

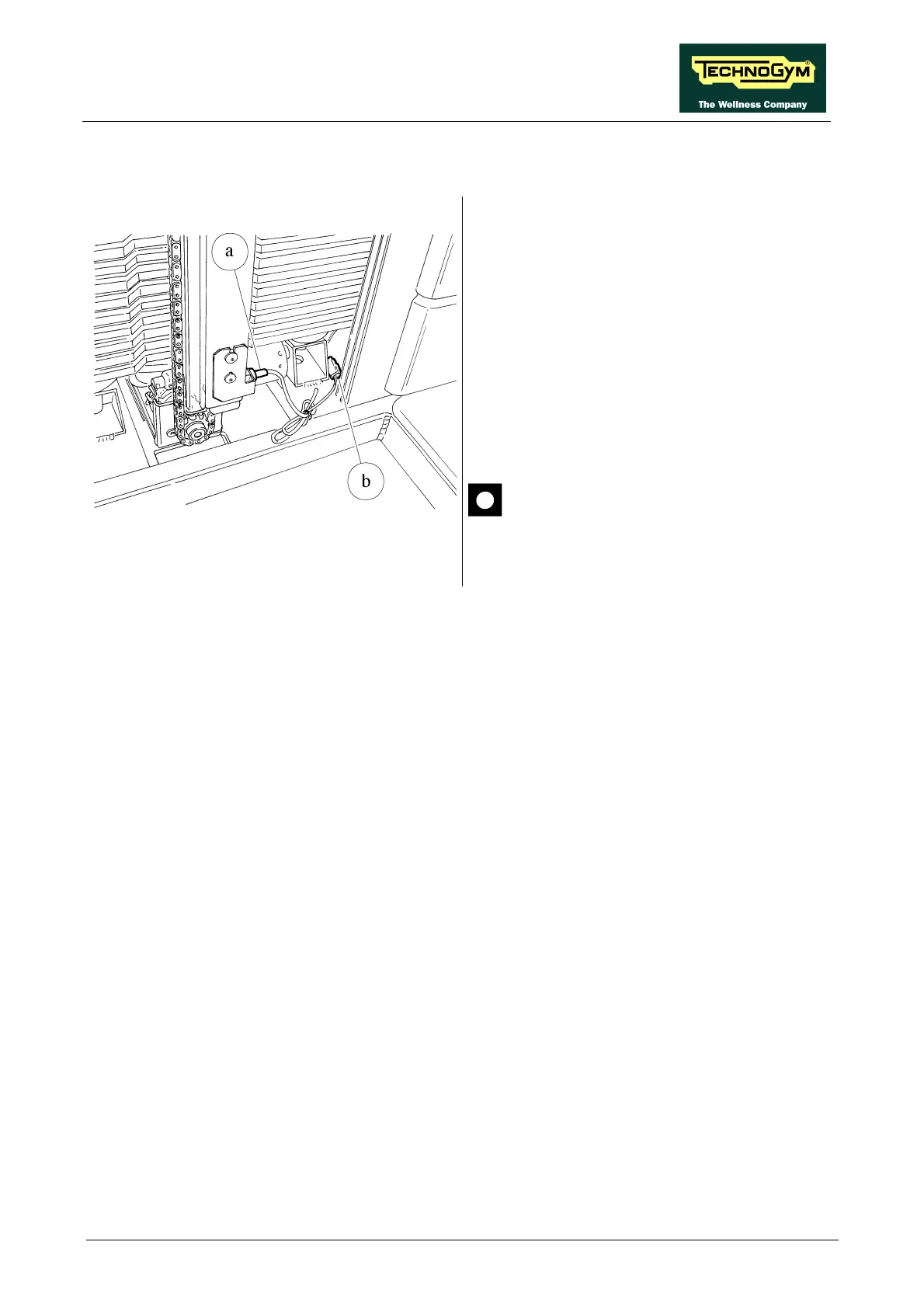

Figure 7.7.15-1
Follow the steps described in paragraph 7.7.7.
“Disassembling the rear Plexiglas weight stack
guard”.
1. Loosen the counter-nut a using a 13-gauge
wrench.
2. Disconnect the connector b from the cable.
3. Remove the ZERO SENSOR.
To reassemble the ZERO SENSOR, follow the
above steps in reverse order.
When the operation is complete, adjust
the position of the SENSOR as described
in paragraph 8.8. .
