BIOSTRENGTH LINE: Service & Maintenance manual - rev. 2.1
Page 7.192

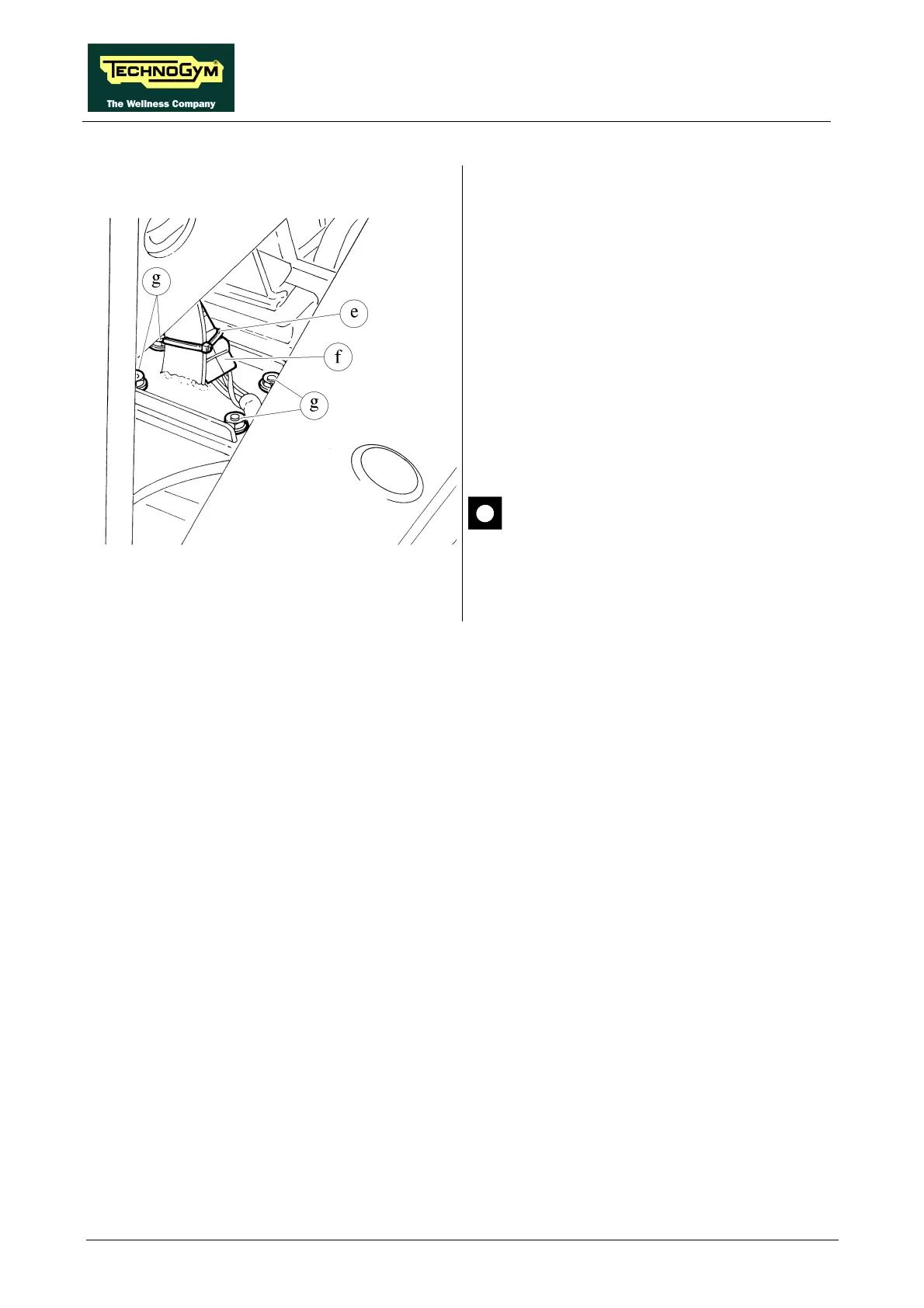

Figure 7.5.20-3
Working on the inner part of the weight stack:
7. Cut the clamp e and disconnect the connector
f of the weight stack motor cable.
8. Loosen the 4 nuts g using a 4-gauge universal
wrench.
9. Remove the WEIGHT STACK SELECTION
SYSTEM frame by shifting it towards the
inside of the machine, then lifting it up.
To reassemble the WEIGHT STACK
SELECTION SYSTEM, follow the above steps
in reverse order.
When the operation is complete, adjust
the position of the WEIGHT STACK
SELECTION and plate selection system
as described in paragraphs 8.1. and 8.9. .
