Technogym D93TNL - Pipe; Flywheel

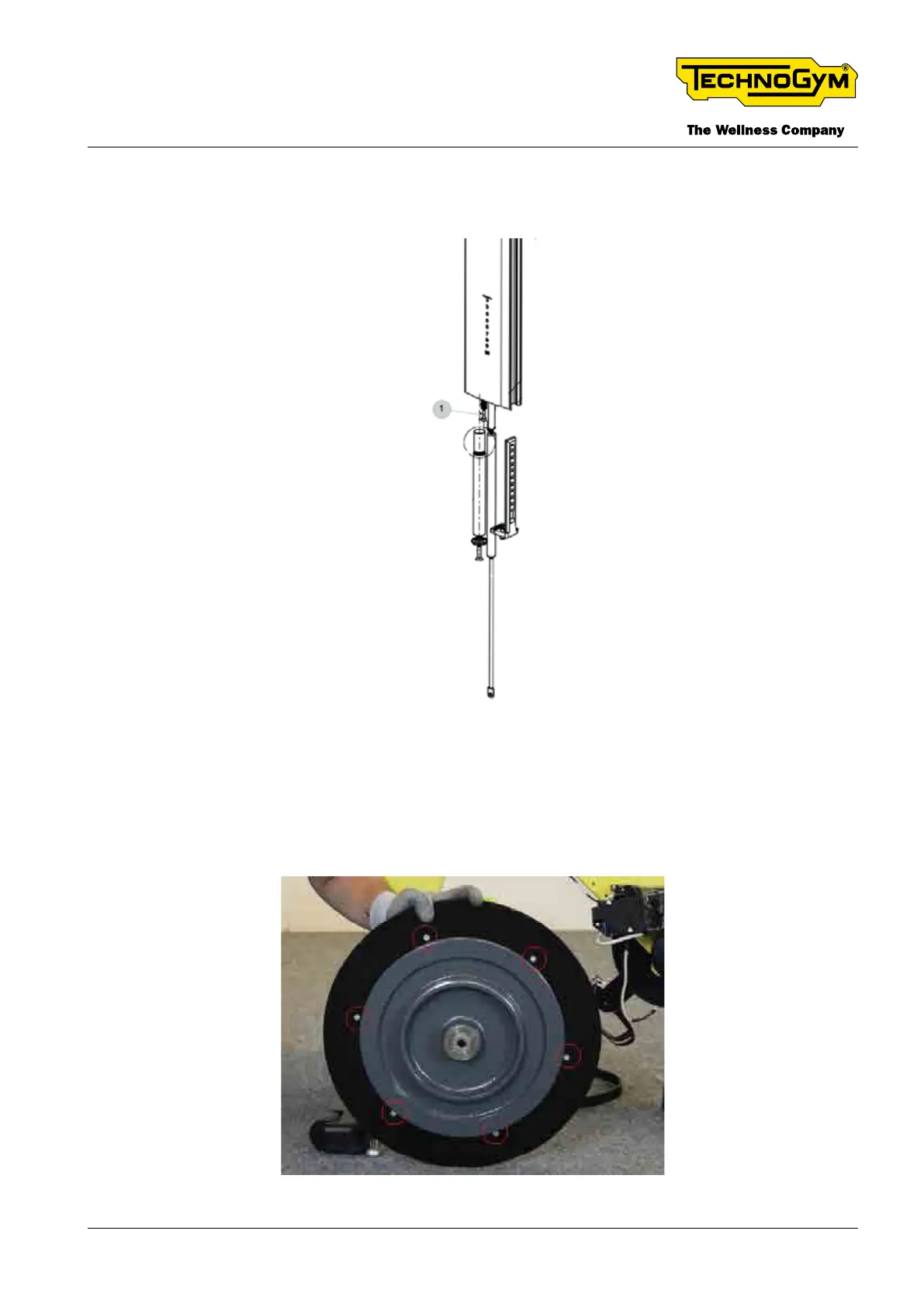

9.3.4.2 PIPE
Tighten the screw [1] with a torque wrench set to 3 Nm [2.21 lbf-ft].
Fig. 69
9.3.5 FLYWHEEL
Apply medium strength threadlocker ( Loctite 243) on the six screws highlighted in red and tighten
them with a torque equal to 5 Nm [3.69 lbf-ft].
Fig. 70
TECHNOGYM BIKE LIVE Technical Service Guide
Rev. 2.0
- 101 -TSG-00187-EN - Uncontrolled copy if printed
