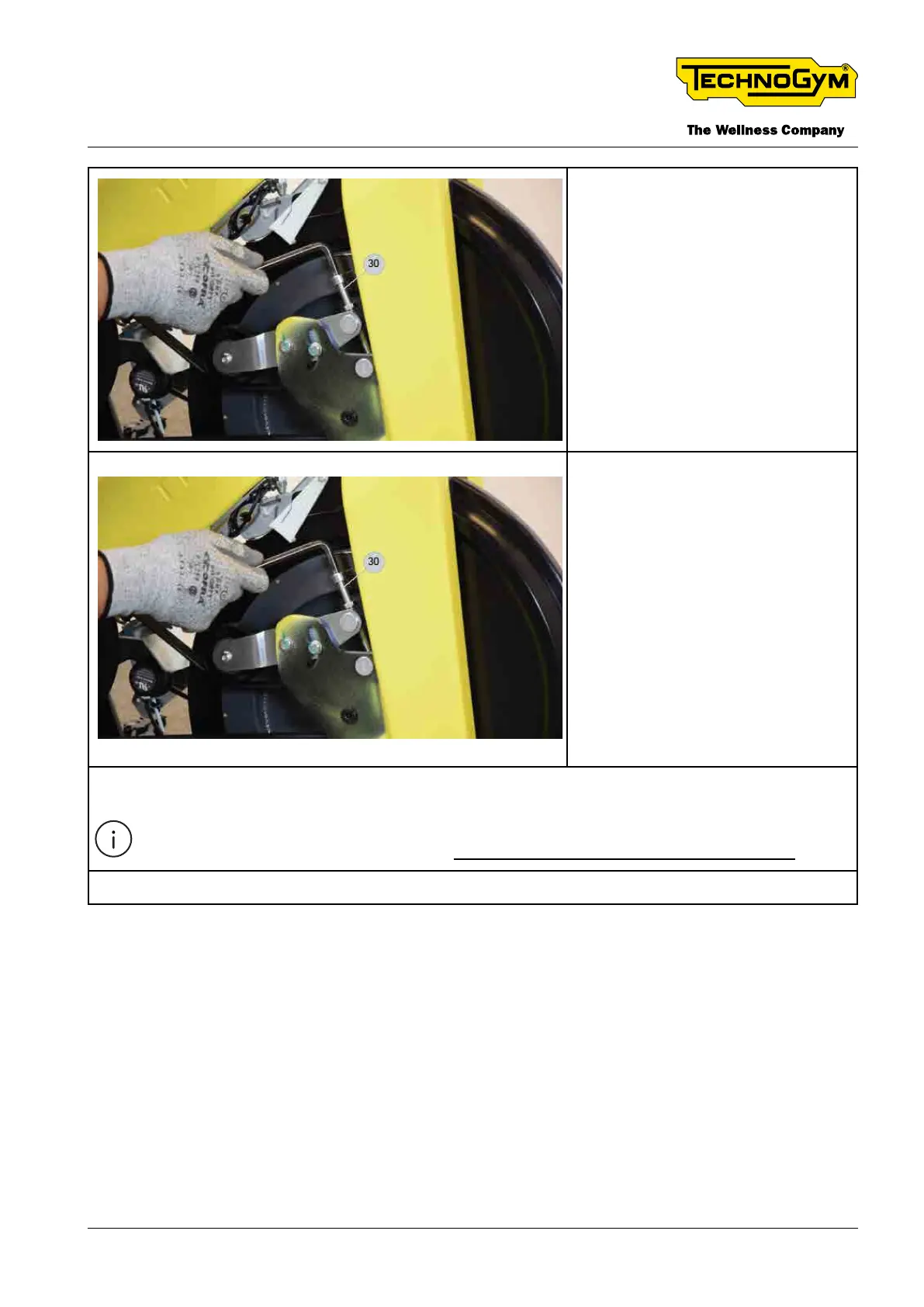

4. Screw the screw [30] to tight-
en the belt (TOOL: 8 mm hex-
agon key wrench).
5. Unscrew the screw [30] to
loosen the belt (TOOL: 8 mm
hexagon key wrench).
6. Tighten the nut [29] and the screws [31]
The correct belt tension is detailed at § “9.2 TRANSMISSION BELT TENSIONING”
7. Reassemble the casings.
9.1.3 PLAY REGULATION FOR VERTICAL REGULATIONS
To adjust the play for the seat vertical slider:
- unscrew the screws (A);
- lift the cover (B);
- adjust the screws (D) and (C);
- check the play of the seat along the entire length;
- lower the cover (B) and tighten the screws (A).
