_Tighten the pedal with a torque wrench set to 40 Nm [29.5 lbf-ft] in correspondence of the point
indicated by the arrow.

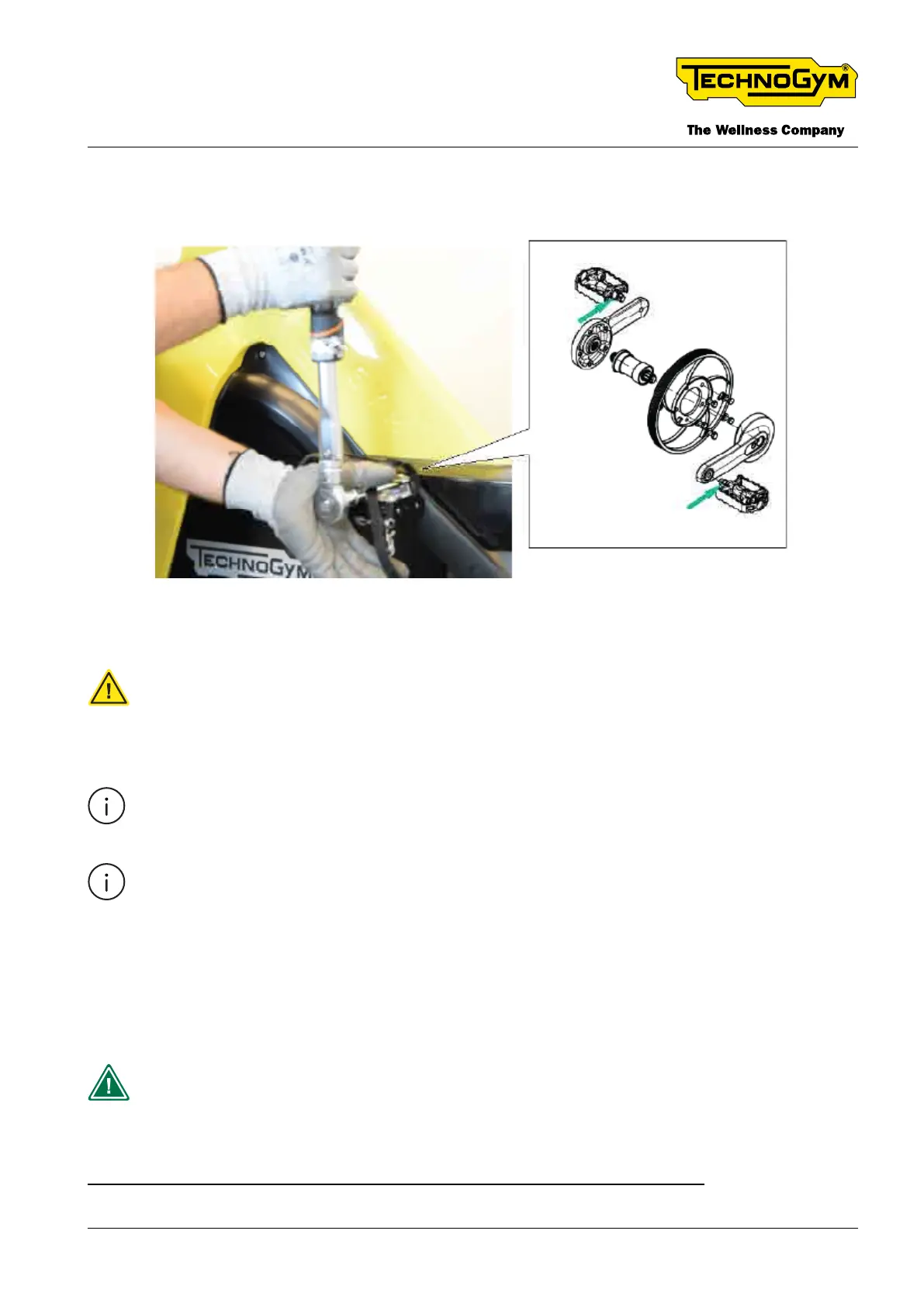

Fig. 63.
CAUTION: This procedure allows the thread and the contact surface between the
pedal crank and the pedal to settle when the pedal is rst tightened, thus ensuring
an accurate and secure t when tightened for the second time.
The right pedal has RH thread (standard), the left pedal has LH thread.
Wait approximately one hour before using the machine. This allows the loctite to take eect
and dry completely.
9.3.3 PEDAL CRANK
_Tighten the screw [34] with a torque wrench set between 47 Nm (34.7 lbf-ft) and 54 Nm (39.8 lbf-
ft).
ATTENTION: THE PEDAL CRANKS MUST BE TIGHTENED INDIVIDUALLY, ONE AT
A TIME. COUNTERACT THE FORCE APPLIED TO THE TORQUE WRENCH USING
THE PEDAL CRANK.
In case of replacement of a pedal crank, the other must also be replaced.
TECHNOGYM BIKE LIVE Technical Service Guide
Rev. 2.0
- 97 -TSG-00187-EN - Uncontrolled copy if printed
