- tighten the screw (A).
If the nut is tightened (to the right), sliding becomes harder.
If the nut is loosened (to the left), sliding becomes easier.
Turn the nut 1/8 of a turn at a time and check the sliding before proceeding.

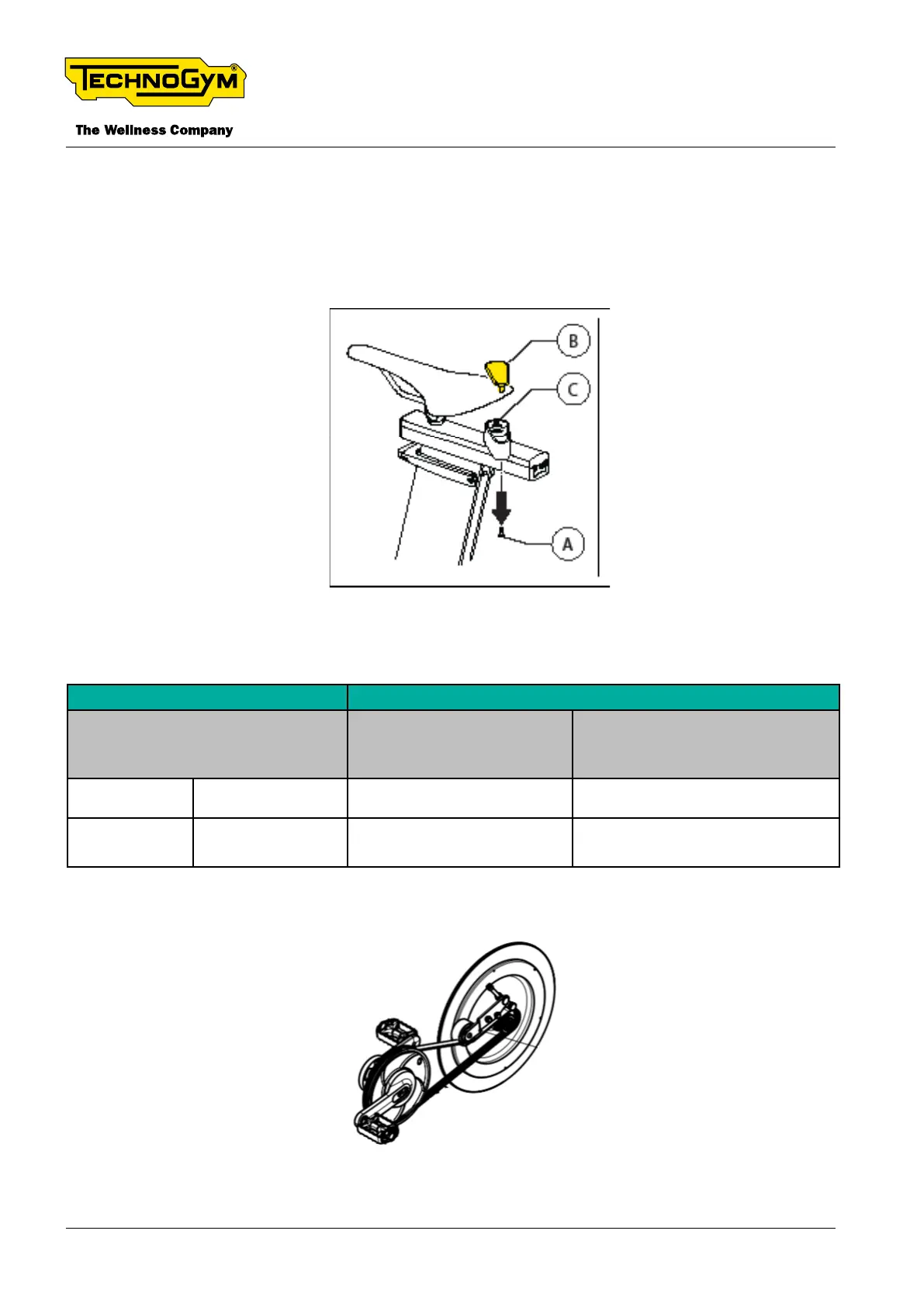

Fig. 57
9.2 TRANSMISSION BELT TENSIONING
TYPE OF BELT TENSIONING
Belt replaced with a new
one
Belt loosened / removed and
then the same one reassembled
on the equipment
New Model S0K001513AA 120 ±5 Hz 105 ± 5 Hz
Old Model S0K000671AB
115 ± 5 Hz
105 ± 5 Hz
Tab. 17
Fig. 58
TECHNOGYM BIKE LIVE Technical Service Guide
Rev. 2.0
- 94 - TSG-00187-EN - Uncontrolled copy if printed
