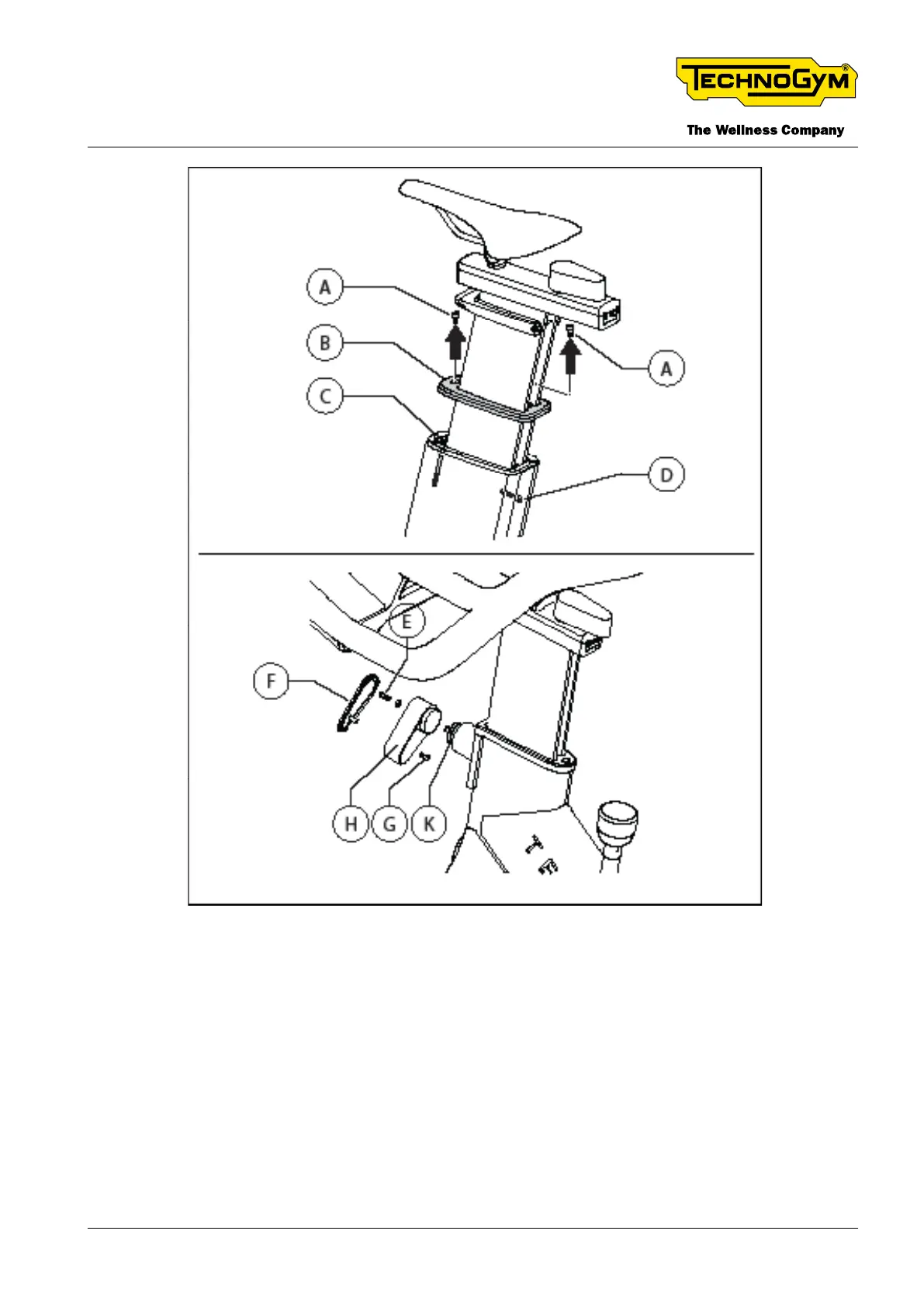

Fig. 56
9.1.4 PLAY REGULATION FOR HORIZONTAL REGULATIONS
To adjust the play for the seat horizontal slider:
- unscrew the screw (A);
- lift the cover (B);
- adjust the nut (C);
- check the play of the seat along the entire length;
- lower the cover (B);
