9. TIGHTENING TORQUES - GREASES -
ADHESIVES & SEALANTS - BELT TENSIONING
- ADJUSTMENTS
9.1 ADJUSTMENTS AND REGULATION
9.1.1 LEVELLING THE PRODUCT

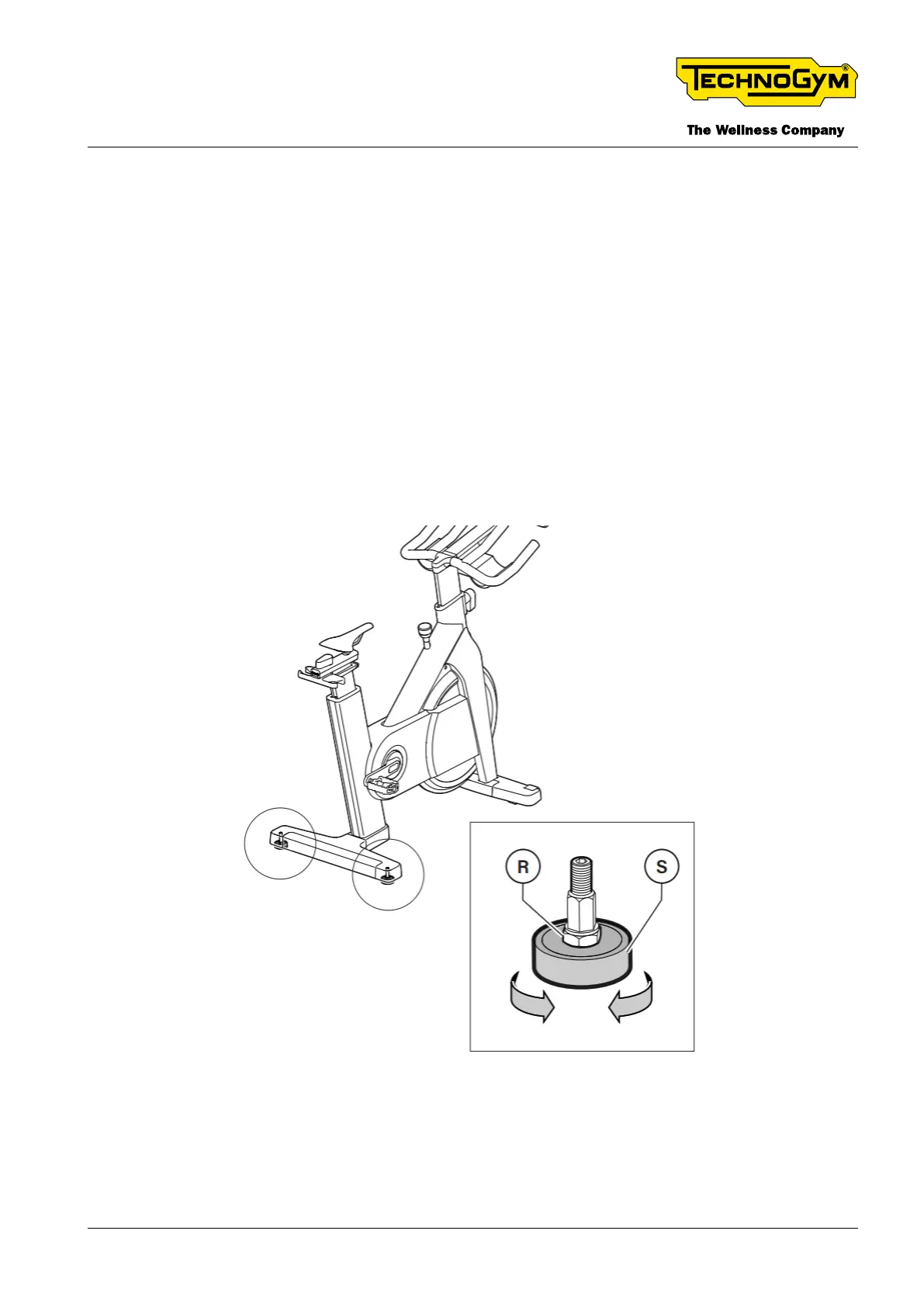

To level the product, use the two levelling feet shown in gure.
- loosen the locknut (R);
- screw or unscrew the foot (S) until the frame is in a stable position;
- when the regulation is complete, tighten the locknut (R).
Fig. 55
TECHNOGYM BIKE LIVE Technical Service Guide
Rev. 2.0
- 89 -TSG-00187-EN - Uncontrolled copy if printed
