8.3 WARNING
WARNING: Before disassembling, disconnect the power cord from the machine / wall socket.
8.4 DISASSEMBLING PROCEDURES
Refer to the Group Cycle (D92*N) Technical Service Guide.
Take into account that the Technogym Bike Live is equal to Group Cycle (D92*N), except for the
following points:
- Technogym Bike Live does not have the generator;
- Technogym Bike Live has only one belt, since does not have the generator;
- In the Technogym Bike is not present the horizontal sliding of the handlebar;
- Technogym Bike has the 21” Display Live.
8.5 DISASSEMBLING THE BRAKE CASINGS AND
SIDE CASINGS

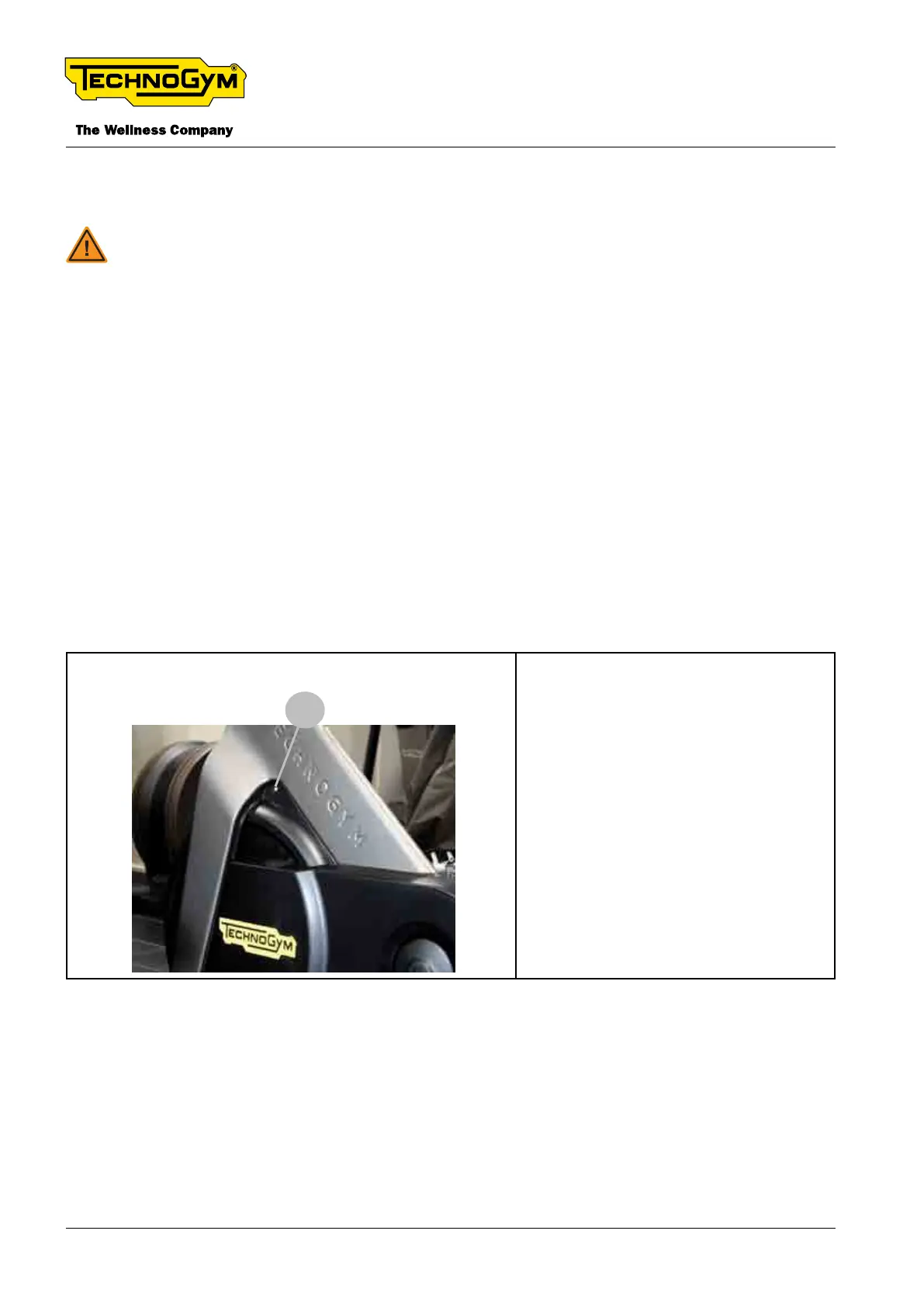

A
Remove the left screw indicated in the
gure, on the left side of the equipment,
to remove the left casing. (TOOL: key
wrench for Torx T25 head screw)
TECHNOGYM BIKE LIVE Technical Service Guide
Rev. 2.0
- 64 - TSG-00187-EN - Uncontrolled copy if printed
