[*]: When replacing components see §”6.1 Procedure to follow when replacing components”.
[**]: Make sure the problem is solved. See §”6.2 Equipment testing after the intervention of techni-
cal service”.
[1]: Make sure that the Power Supply is compatible with the Technogym Bike product. Moreover,
check the Power Jack: Make sure that the multimeter measures about +12Vdc, as shown in the
following picture.

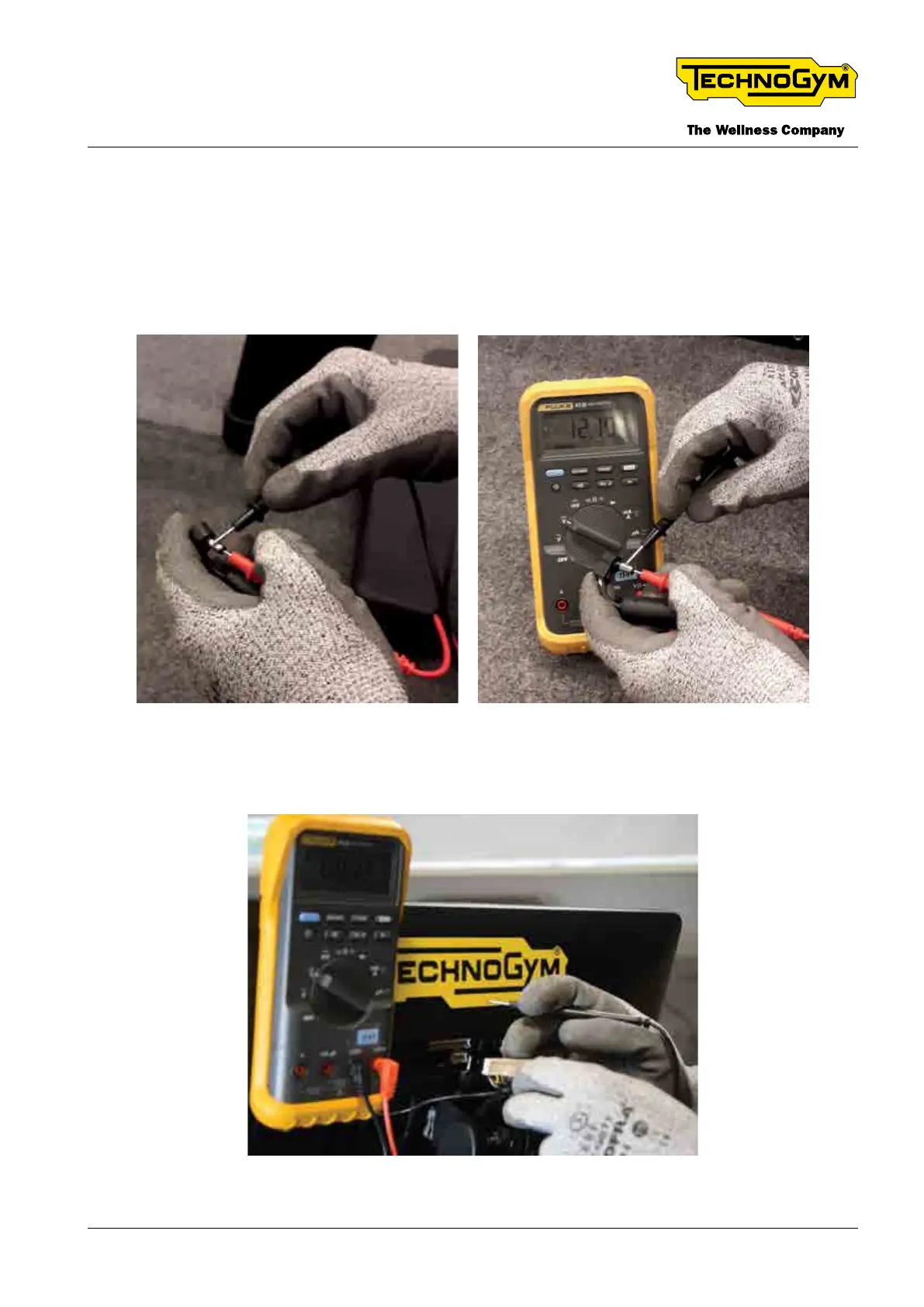

Fig. 41
[2]: Access the display cable. Check the presence of about +12Vdc between red wires and black
wire. Be careful not to make short circuits.
Fig. 42
TECHNOGYM BIKE LIVE Technical Service Guide
Rev. 2.0
- 53 -TSG-00187-EN - Uncontrolled copy if printed
