RUN XT: Service & Maintenance Manual - rev. 2.0
Page 8.5

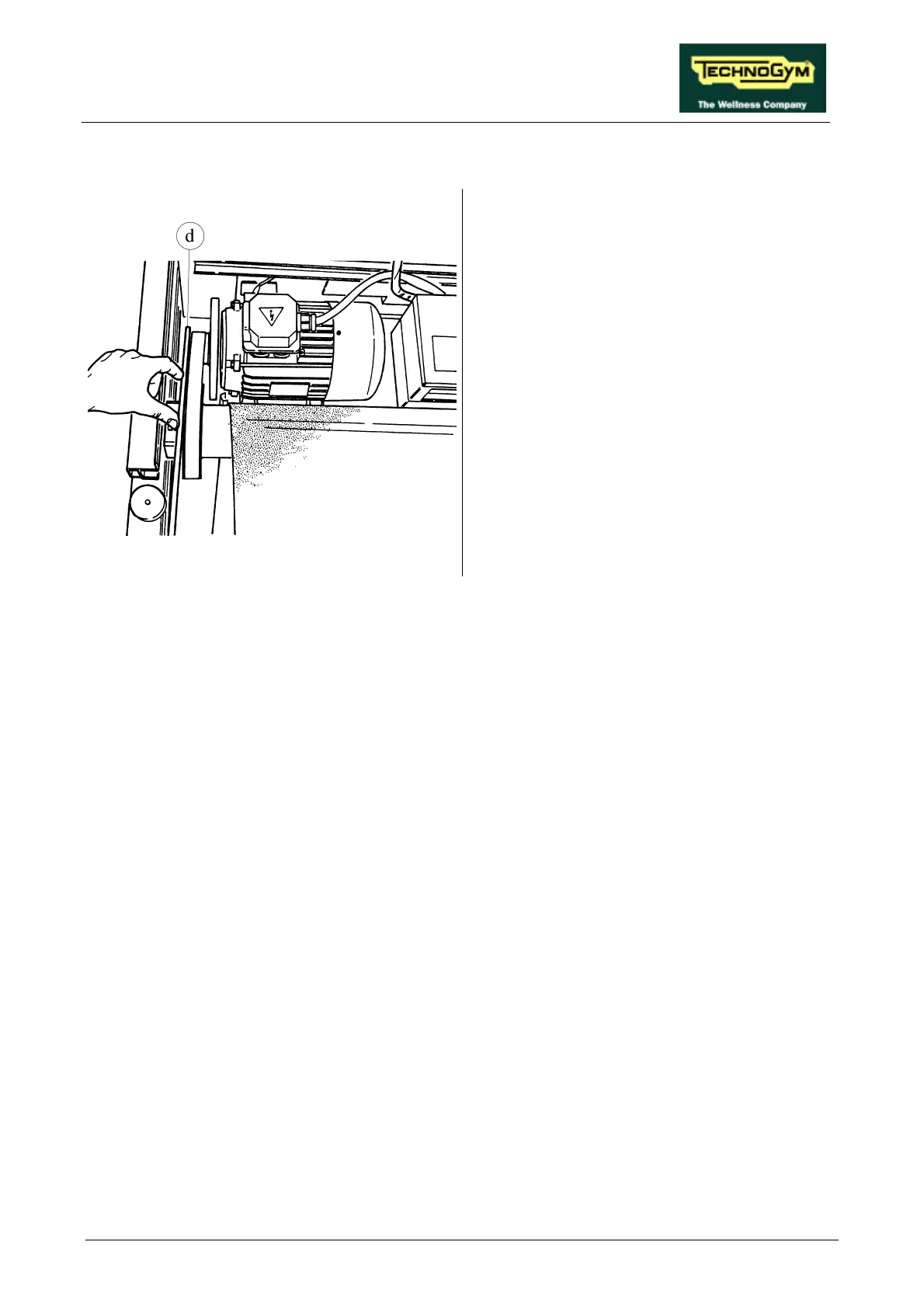

Figure 8.4-3
To adjust the alignment, use a straight-line
reference rod d, rested against the driving roller
pulley, and make sure that:
• The pulley and flywheel are parallel.
1. Repeat steps 3 and 4.
2. Make the adjustment by turning the 2 inner
adjuster nuts c using a 13-mm wrench.
• The pulley and flywheel are aligned.
1. Repeat step 3.
2. Make the adjustment by shifting the motor.
