RUN XT: Service & Maintenance Manual - rev. 2.0
Page 7.26
7.17. DISASSEMBLING THE ELEVATION BARS

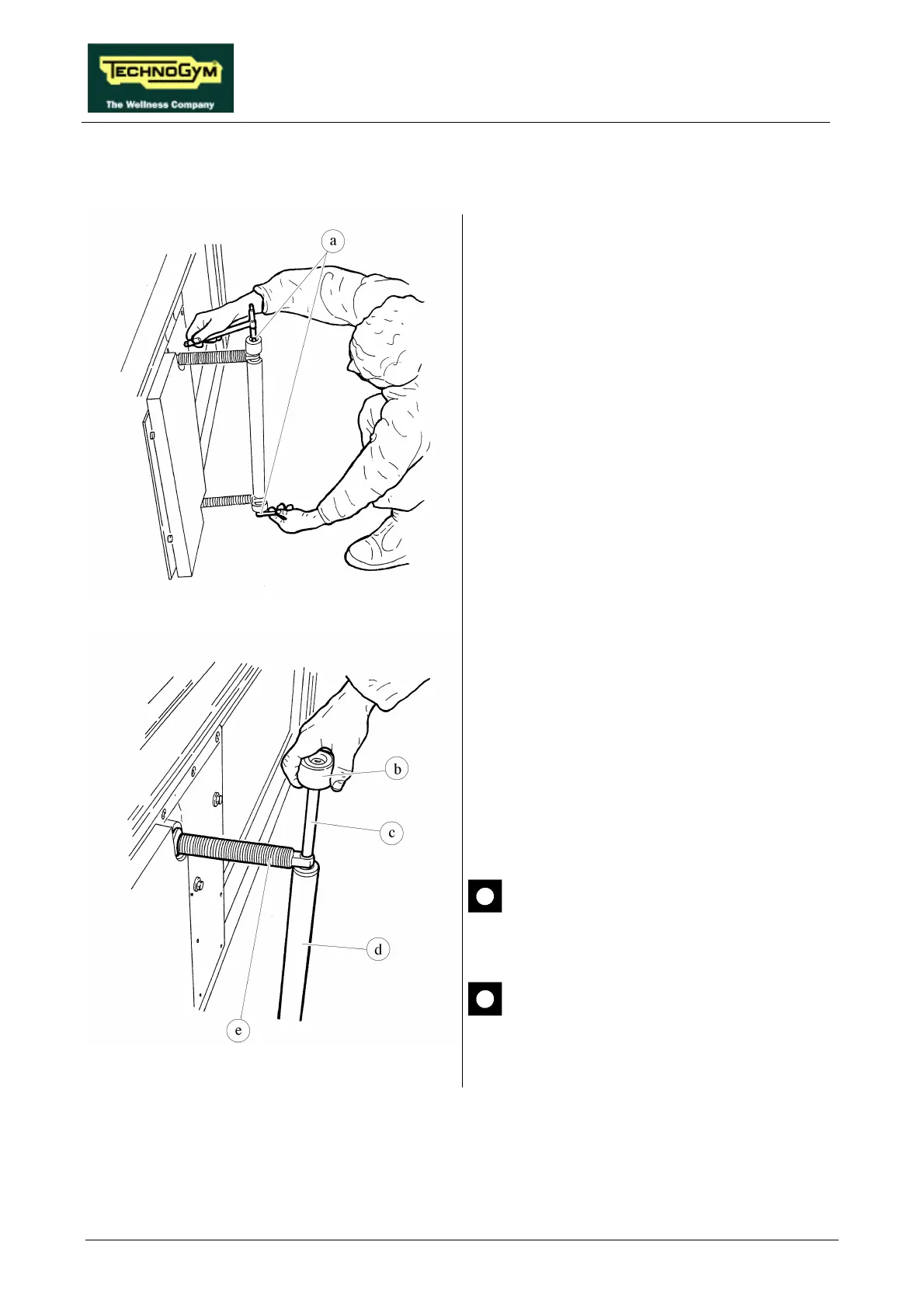

Figure 7.17-1
1. Place the machine in its maximum elevation
position.
2. Carry out the operations described in
paragraphs 7.7. “Disassembling the motor
guard” and 7.8. “Disassembling the front
plate”.
3. Overturn the machine on its right hand side.
4. Unscrew the two fixing screws of wheels a
using two 6-mm T wrenches.
Figure 7.17-2
5. Remove wheel b.
6. Remove the wheel shaft c.
7. Remove spacer d.
8.
Remove, unscrewing them by hand, the 2
ELEVATION BARS e.
To reassemble the ELEVATION BARS, carry
out the above steps in reverse order.
During the reassembly phase, lubricate
the elevation bars with MOLYKOTE
GN PLUS grease.
After completing the procedure, adjust
the alignment of the ELEVATION
BARS as instructed in paragraph 8.6. .
