RUN XT: Service & Maintenance Manual - rev. 2.0
Page 11.5

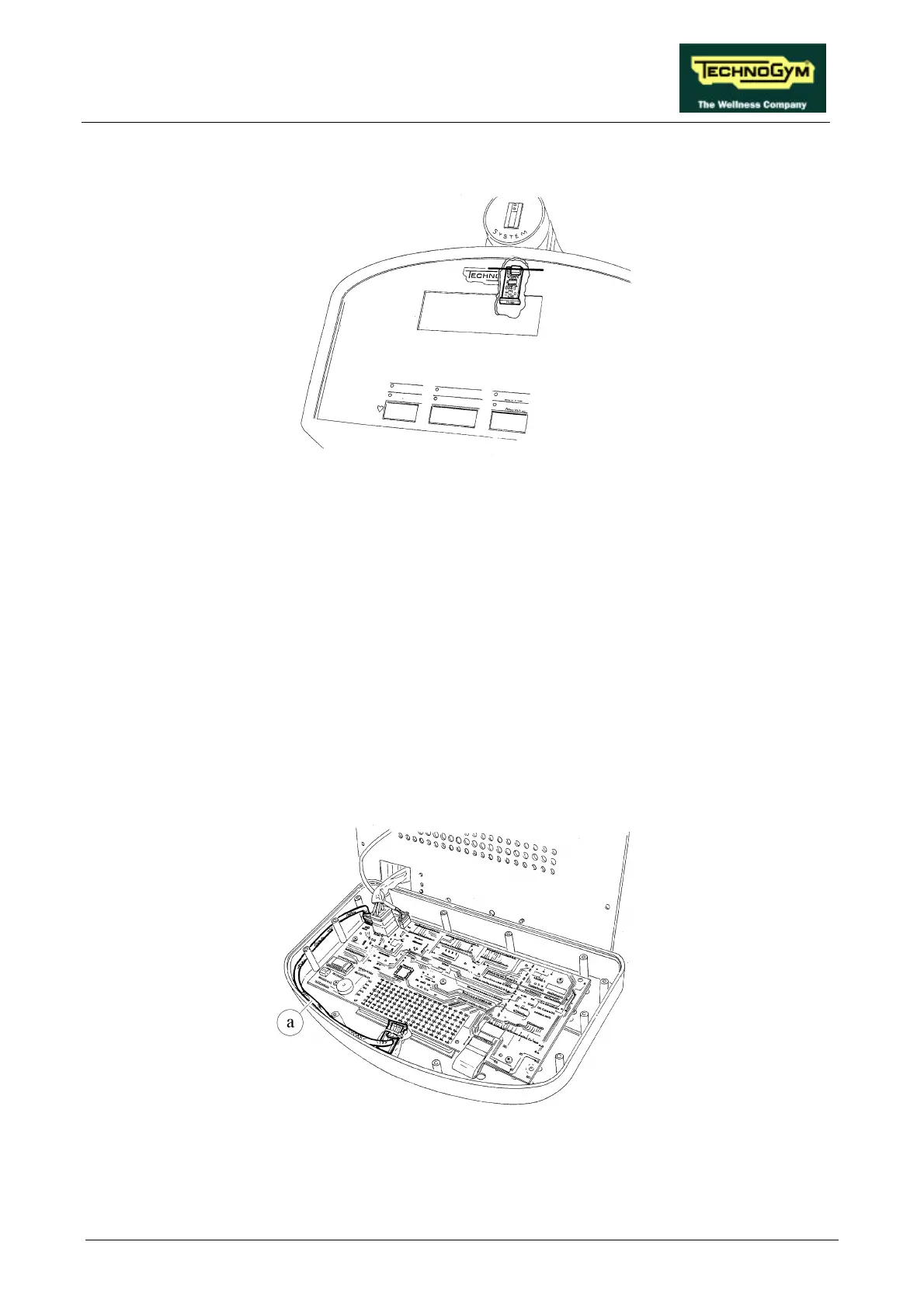

• Version with receiver inside the display:
Figure 11.1-4
11.1.6. ROUTING OF CABLES
Particular care must be taken in the routing of cables to prevent interference with the receiver coil.
Therefore, and particularly in the version with the receiver housed inside the display, it is
recommended to:
• Route cable a behind the studs which fix display on its support, and not on top of the CPU
board;
• The TGS cable, if present, must be routed behind connector CN1 on the CPU board to ensure
that it does not go near the receiver coil when the display is closed.
The figure below illustrates the optimal routing described above.
Figure 11.1-5
