7.8. DISASSEMBLING THE FRONT PLATE

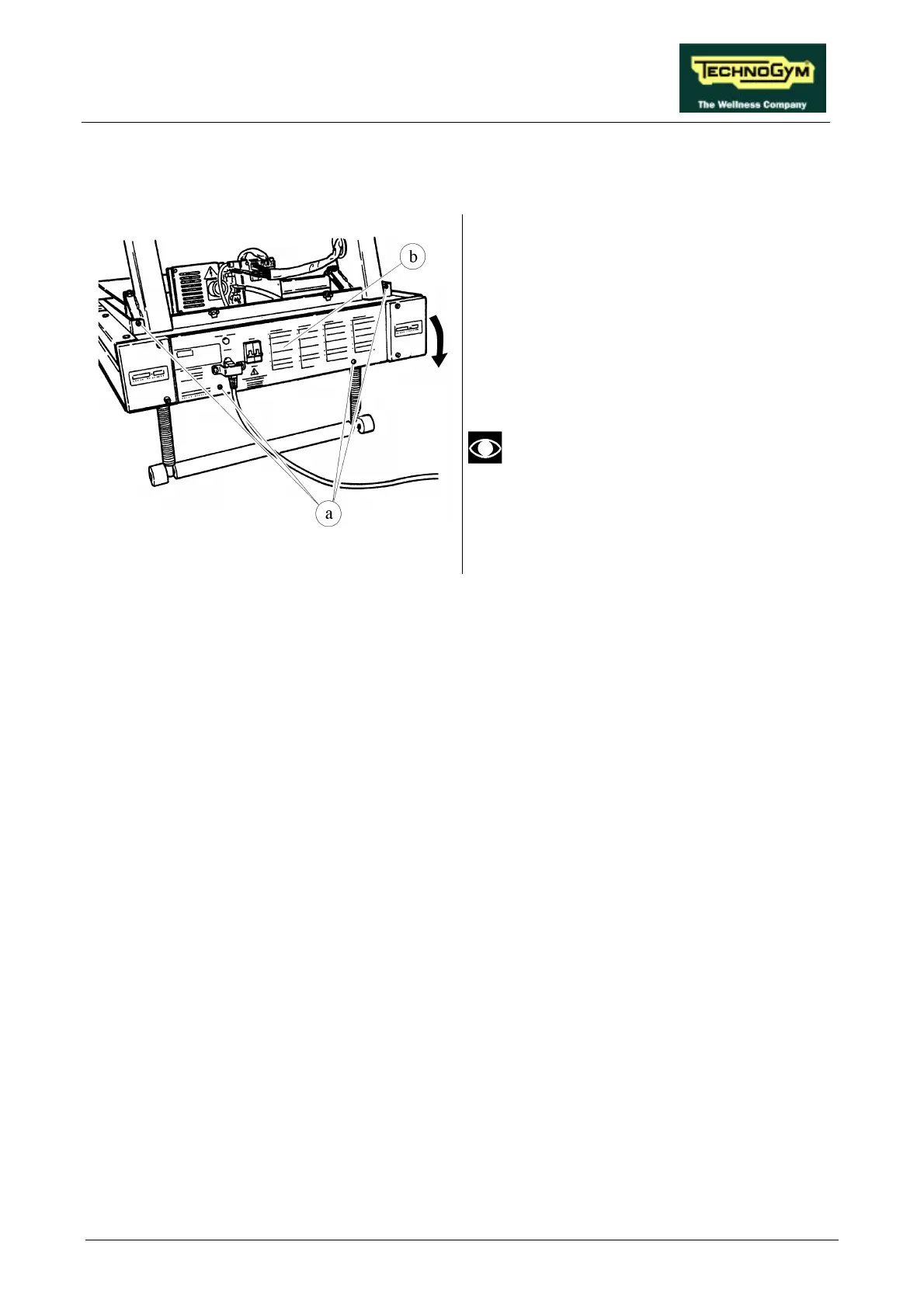

Figure 7.8-1
1. Carry out the procedure described in
paragraph 7.7. “Disassembling the motor
guard”.
2. Unscrew the 4 self-tapping screws a using a
large Phillips screwdriver.
3. Rotate the FRONT PLATE b downward.
The plate remains connected to the
frame by two steel cables.
To reassemble the FRONT PLATE, carry out the
above steps in reverse order.
