RUN XT: Service & Maintenance Manual - rev. 2.0
Page 7.3
7.3. DISASSEMBLING THE CPU BOARD

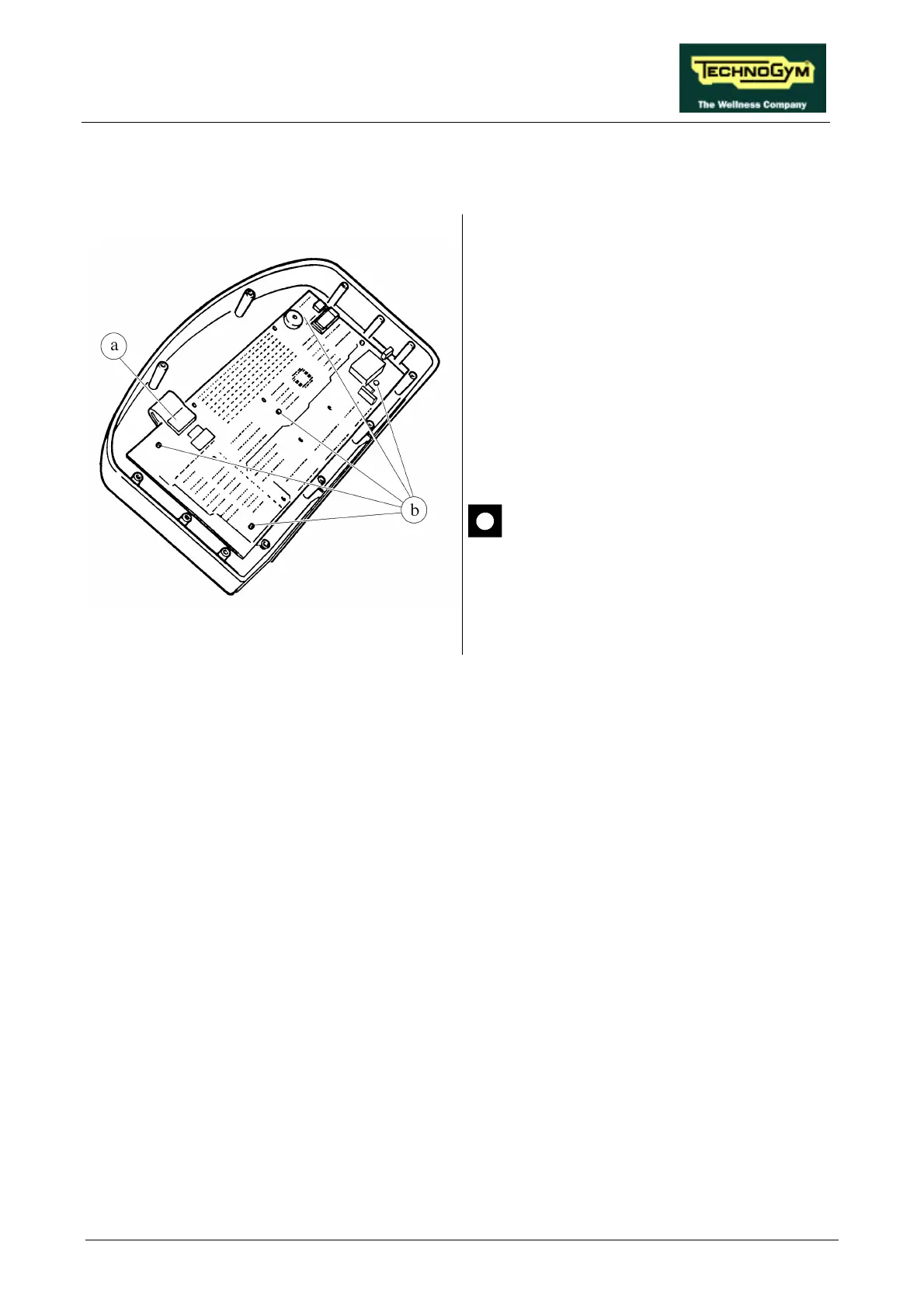

Figure 7.3-1
Carry out the procedures described in paragraph
7.1. “Disassembling the display”.
With the display placed on a work bench:
1. Disconnect keyboard connector a.
2. Remove the 5 screws b, using a small Phillips
screwdriver.
3. Disconnect the cardio receiver if it is still
connected.
4. Remove the CPU board.
These procedures must be carried out on
a work bench.
To reassemble the CPU BOARD, carry out the
above steps in reverse order
