11.3.3. AC AND DC CURRENT
To measure either an AC or DC CURRENT using a multimeter:
1. Select, where available, the current measurement function which is generally indicated with the
symbols: A, mA;

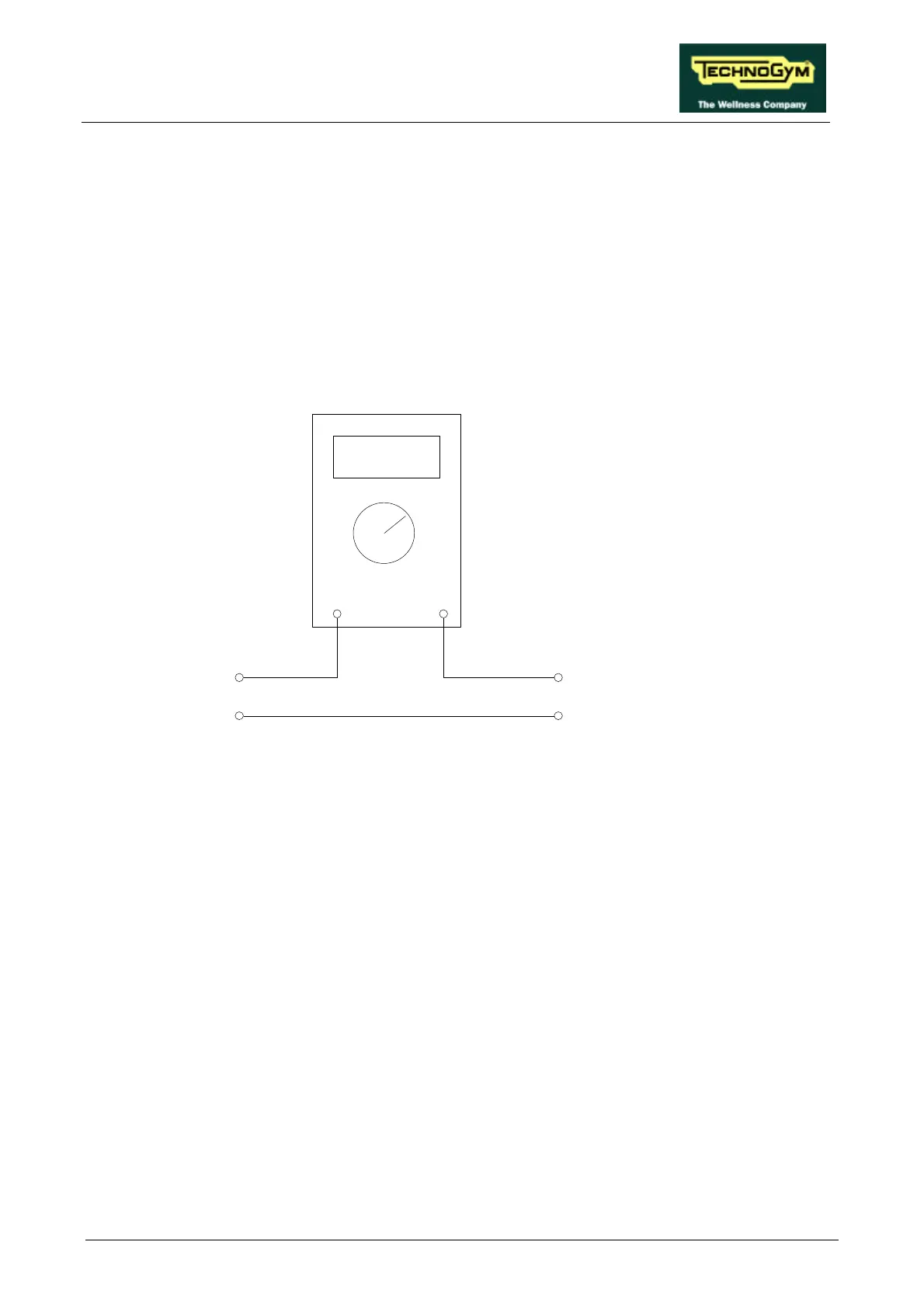

2. Place the multimeter probes on the pins between which the measurement is to be made, as shown
in the figure below.
Remember to place the ground probe on the signal reference in order to obtain a measurement
that has the same polarity as the signal.
A
Pin -
Pin +
C
Tester
A
Pin -
Pin +
