RUN XT: Service & Maintenance Manual - rev. 2.0
Page 8.9
8.8. CENTERING THE PHOTOCELL

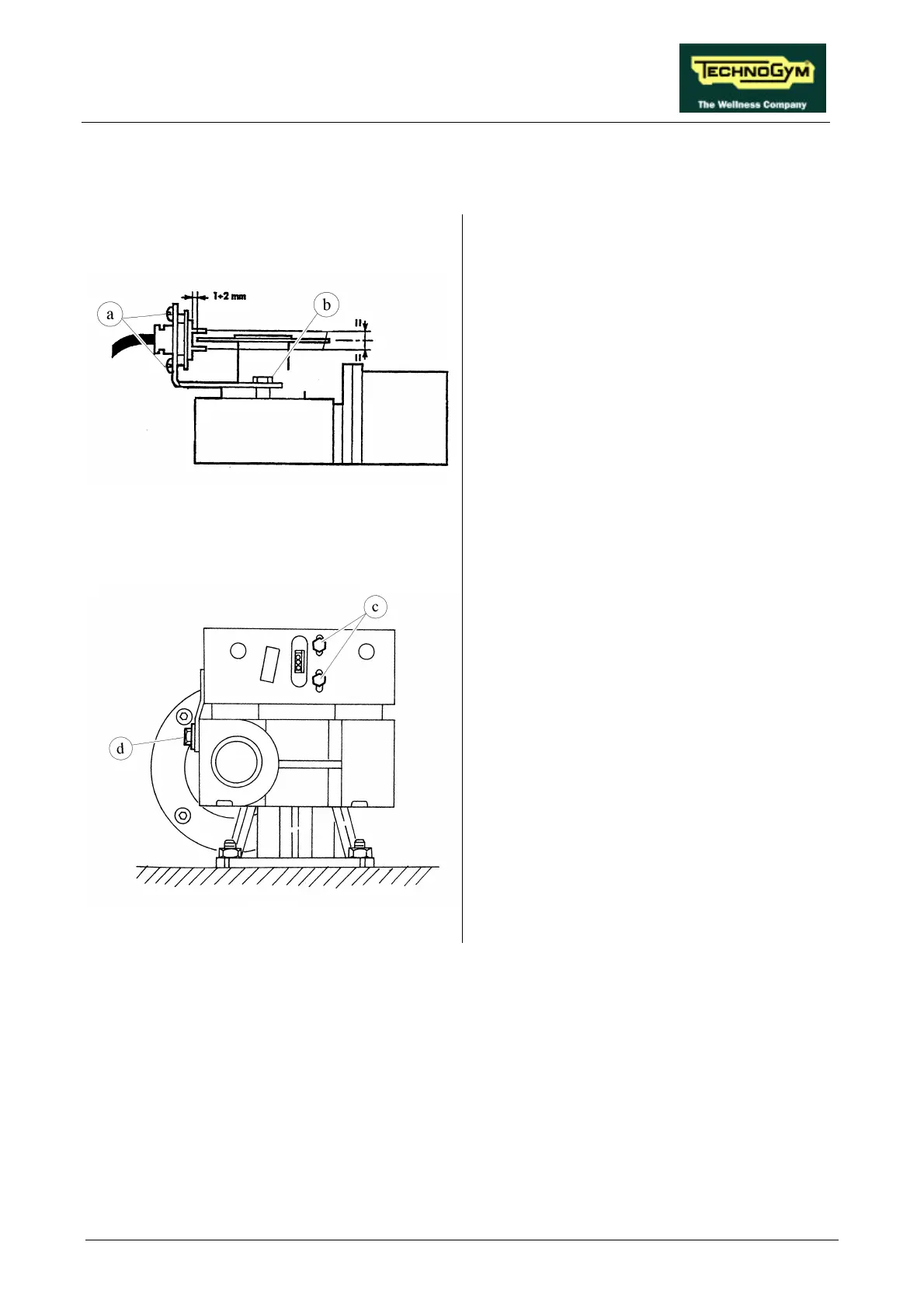

Figure 8.8-1
1. Carry out the procedures described in
paragraphs 7.7. “Disassembling the motor
guard” and 7.8. “Disassembling the front
plate”.
2. Using a 10-mm wrench, unscrew the 2 fixing
screws of the cover of the protective housing
of the encoder wheel, where present.
3. Open the cover.
For the “BONFIGLIOLI” motor:
4. Adjust the centering of the encoder photocell
by turning the 2 screws a and b so that the
photocell is positioned as shown in Figure
8.8-1.
Figure 8.8-2
For the “SITI” motor:
5. Adjust the centering of the encoder photocell
by turning the 2 screws c and d so that the
photocell is positioned as shown in Figure
8.8-2.
