RUN XT: Service & Maintenance Manual - rev. 2.0
Page 7.10
7.7. DISASSEMBLING THE MOTOR GUARD

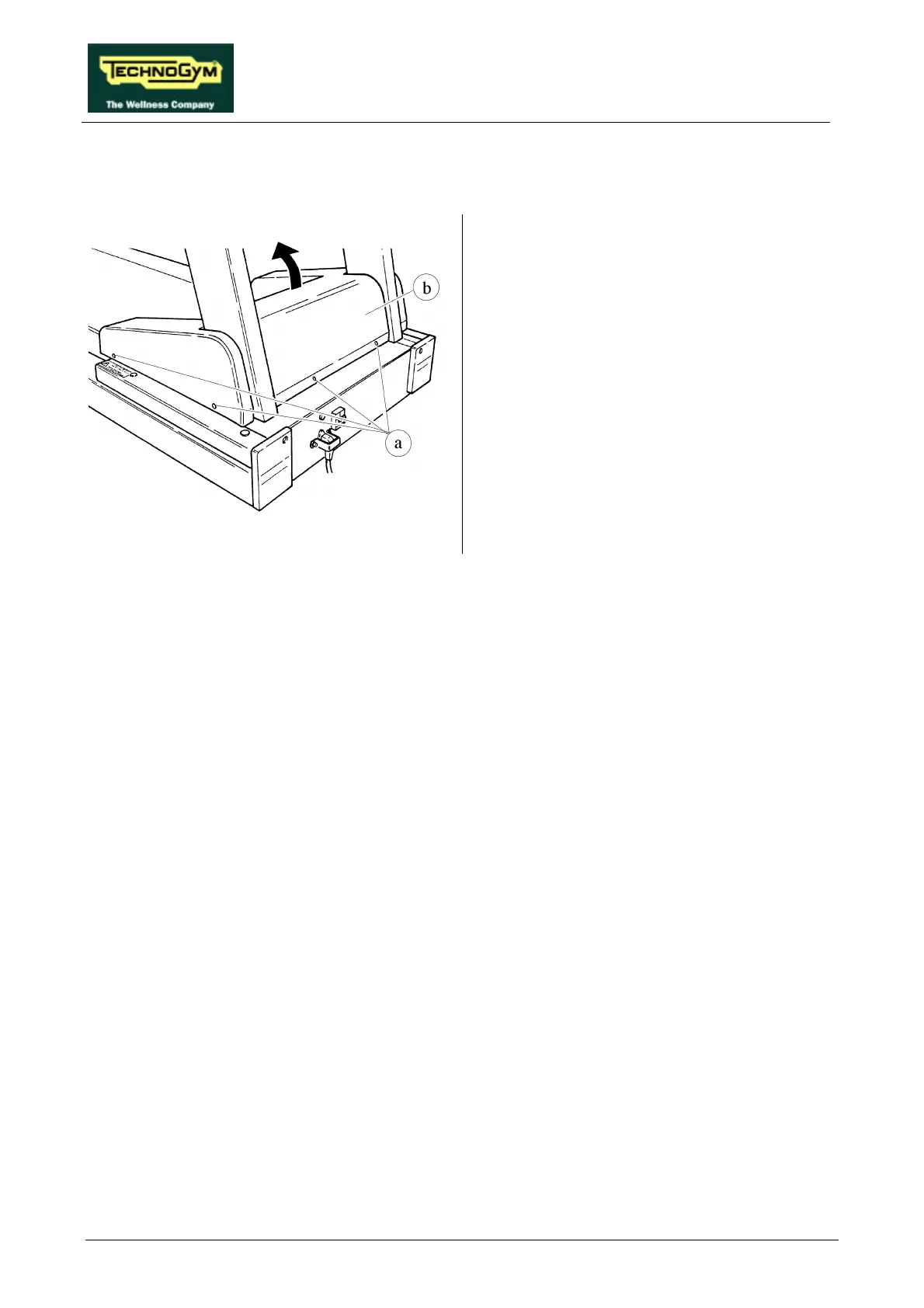

Figure 7.7-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Unscrew the 6 screws a using a large Phillips
screwdriver.
3. Remove the MOTOR GUARD b.
To reassemble the MOTOR GUARD, carry out
the above steps in reverse order.
