RUN XT: Service & Maintenance Manual - rev. 2.0
Page 7.1
7. DISASSEMBLY OF COMPONENTS
7.1. DISASSEMBLING THE DISPLAY

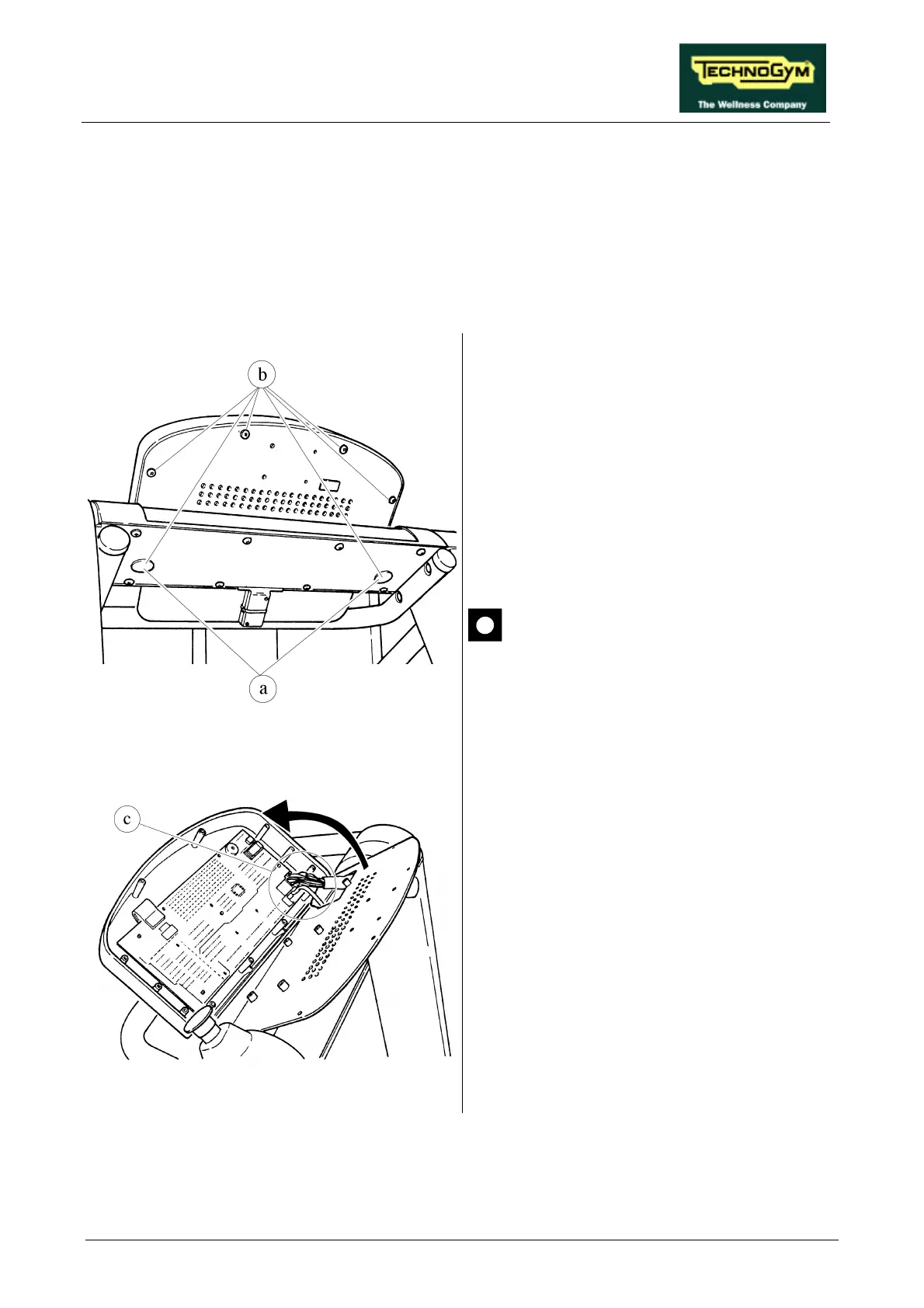

Figure 7.1-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Remove the 2 caps a.
3. Unscrew the 6 self-tapping screws b which
fix the DISPLAY, using a large Phillips
screwdriver.
Support the DISPLAY before removing
the last screw.
Figure 7.1-2
4. Open the DISPLAY.
To remove the DISPLAY:
1. Disconnect connectors c.
2. Remove the DISPLAY.
To reassemble the DISPLAY, carry out the
above steps in reverse order.
