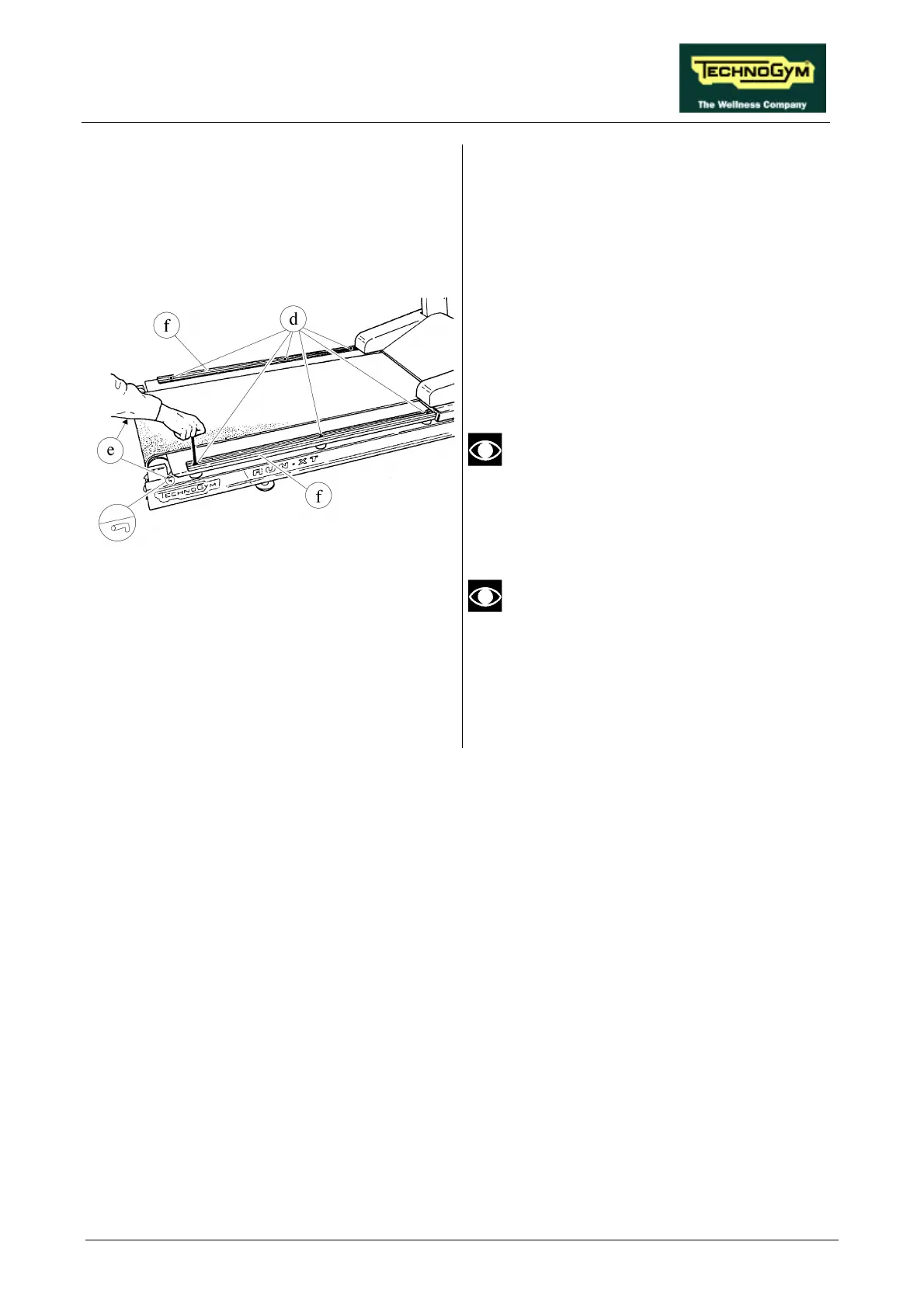

Figure 7.9-3
6. Depending on the type of shock absorbers:
• Unscrew the 6 screws d using a 5-mm
Allen T wrench.
• Unscrew the 2 rear screws d using a 5-
mm Allen T wrench, and the 4 front
screws using a 5-mm Allen T wrench
while holding the nut in place with a 13-
mm wrench.
7. Remove the 2 footrest guides f.
8. Pull out the RUNNING TRACK from the
side.
The front and rear profiles of the
RUNNING TRACK are different, and
therefore it is necessary to mark the
correct positions in order to avoid errors
during the reassembly phase.
Before reassembling the caps, check that
the fixing bolts are in the position
indicated in the figure.
To reassemble the RUNNING TRACK, carry out
the above steps in reverse order.
